Photoelectric Proximity Sensor | Background Suppression | IP67 Rated | Fast Response Time | by SICK

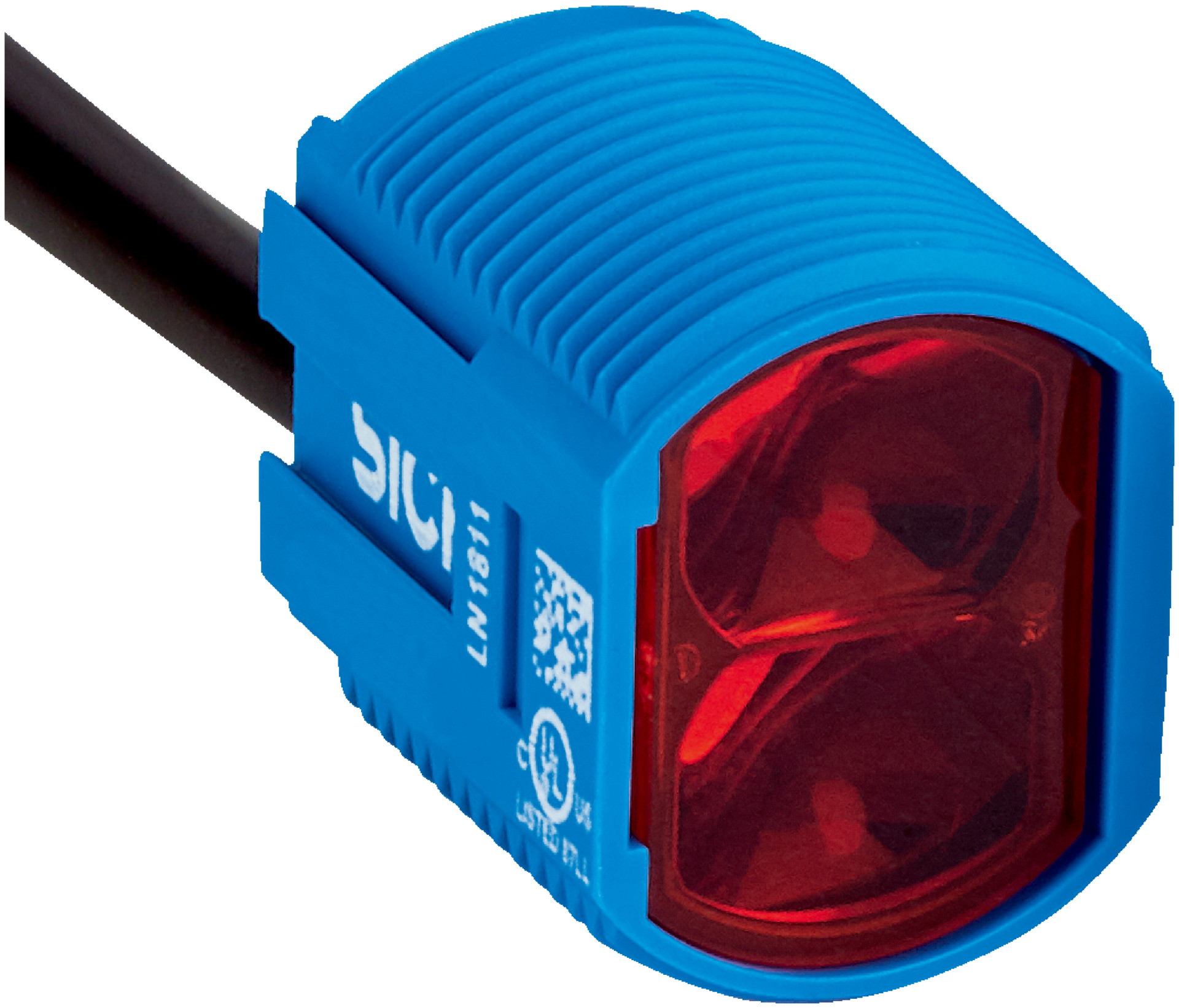

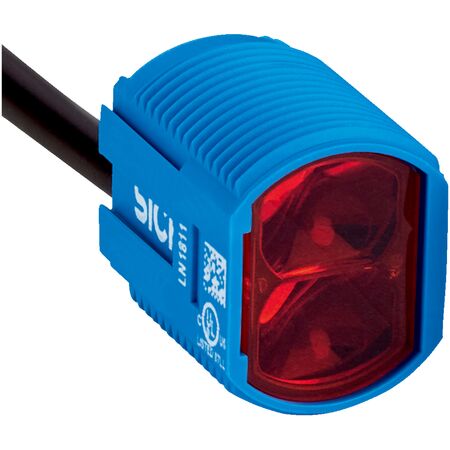

The Photoelectric Proximity Sensor ZTB18-6PZ1G2D02 features background suppression technology and a sensing range of 5 mm to 50 mm, making it ideal for industrial automation and manufacturing process control. With a fast response time of ≤ 1 ms and an IP67 rated enclosure, this sensor ensures reliable performance in challenging environments, perfect for object detection in packaging machinery and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 5 mm to 50 mm
- Light source: PinPoint LED, visible red light at 625 nm wavelength
- Light spot size: Ø 8 mm at 100 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: PNP, light switching mode
- Output current max: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Connection type: 4-wire cable open end, 2 m length
- Cable material: Plastic, PVC
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: –40 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 18mm x 23mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light with PinPoint LED
- Sensing range from 5 mm to 50 mm
- Fast response time of ≤ 1 ms
- High switching frequency up to 500 kHz
- IP67 rated enclosure for dust and water protection
- Operating temperature range from –40 °C to +55 °C
- M18 threaded housing with hybrid light emission design
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging machinery
- Material handling systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ZTB18-6PZ1G2D02 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
