Photoelectric Proximity Sensor | Background Suppression | IP67 Rated | Fast Response Time | by SICK

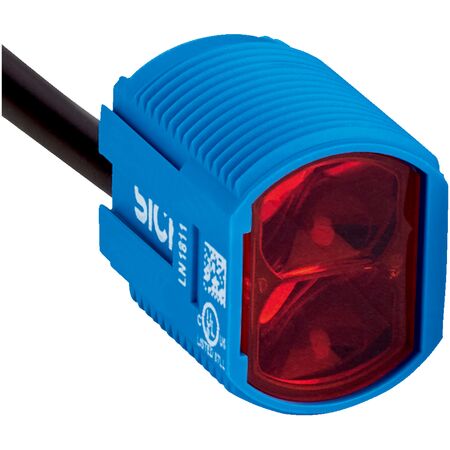

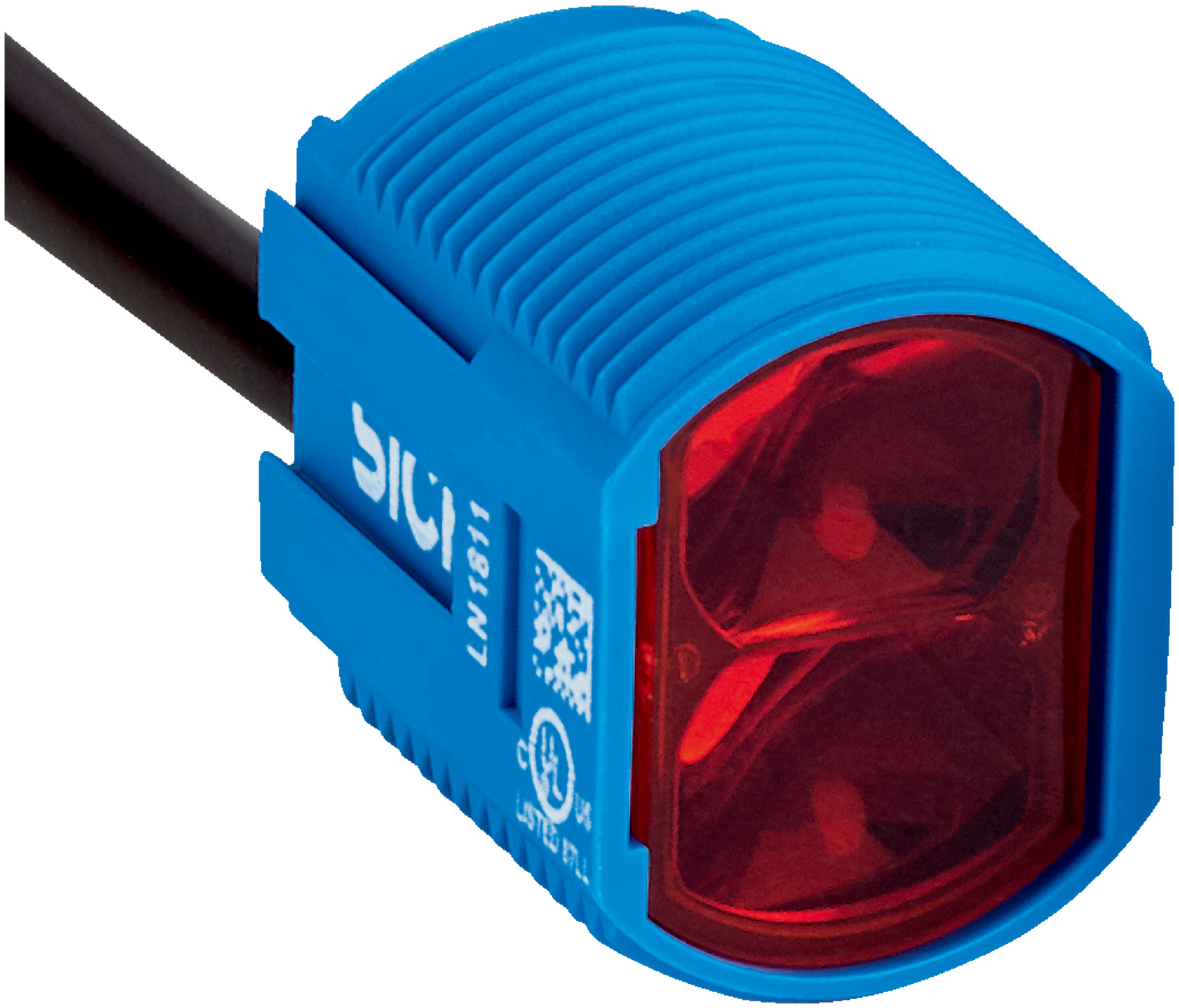

The ZTB18-6PZ1G2D04 photoelectric proximity sensor is designed for precise object detection in industrial automation. With a sensing range of 5 mm to 100 mm and a fast response time of ≤ 1 ms, it ensures reliable performance in manufacturing and packaging applications. Its IP67 rating provides excellent dust and water protection, making it ideal for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 5 mm to 100 mm
- Light source: PinPoint LED, visible red light at 625 nm wavelength
- Light spot size: Ø 8 mm at 100 mm distance
- Supply voltage: 10 V DC to 30 V DC with ripple < 10%
- Current consumption: ≤ 15 mA
- Switching output: PNP, light switching mode
- Output current max: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Connection: 4-wire cable open end, 2 m length, PVC insulation
- Protection class: III
- Housing material: Plastic ABS, optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 18mm x 23mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light with PinPoint LED
- Sensing range from 5 mm to 100 mm
- Fast response time ≤ 1 ms
- High switching frequency up to 500 kHz
- IP67 rated for dust and water protection
- Operating temperature range from -40 °C to +55 °C
- M18 threaded housing with hybrid light emission design
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging machinery sensing
- Robotics and material handling
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable IP67 housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZTB18-6PZ1G2D04 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
