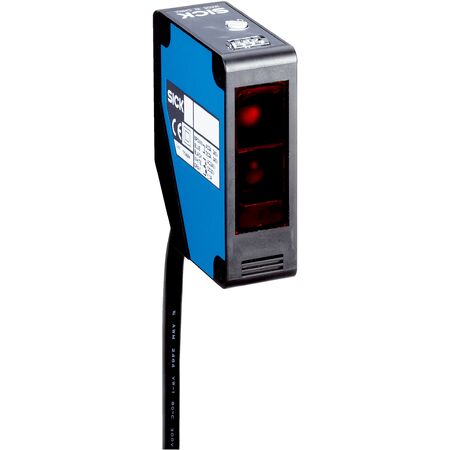

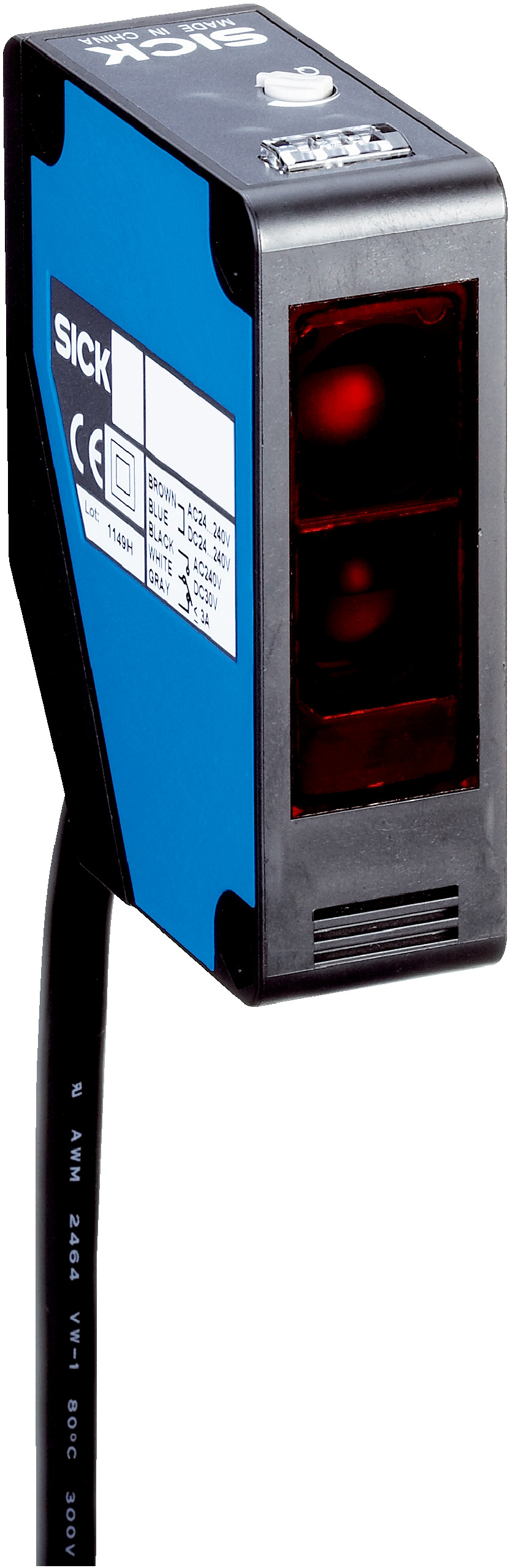

Photoelectric Proximity Sensor WTT280L-2N1531 | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The WTT280L-2N1531 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range of 200 mm to 4000 mm and background suppression technology, it ensures reliable performance. Featuring a visible red laser light source and an IP67 rated enclosure, this sensor is perfect for manufacturing processes and safety control systems, providing fast response times and high switching frequencies.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 200 mm to 4000 mm
- Light source: Visible red laser, Laser class 1
- Adjustment: Potentiometer (1x)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching output: NPN, 1 output
- Switching mode: Light/dark switching selectable via rotary switch
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Connection type: 5-wire cable, 2 m length
- Dimensions (H x L x W): 76mm x 56mm x 24mm
- Weight: 0.12 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 200 mm up to 4000 mm depending on model
- Laser class 1 compliant with EN 60825-1:2014 and IEC 60825-1:2014
- Potentiometer adjustment for sensitivity
- Includes mounting bracket BEF-W280
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Cable connection with 5-wire, 2 m length
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Small object detection in manufacturing processes
- Safety and control systems requiring precise proximity sensing
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable IP67 rated housing reduces environmental impact by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT280L-2N1531 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
