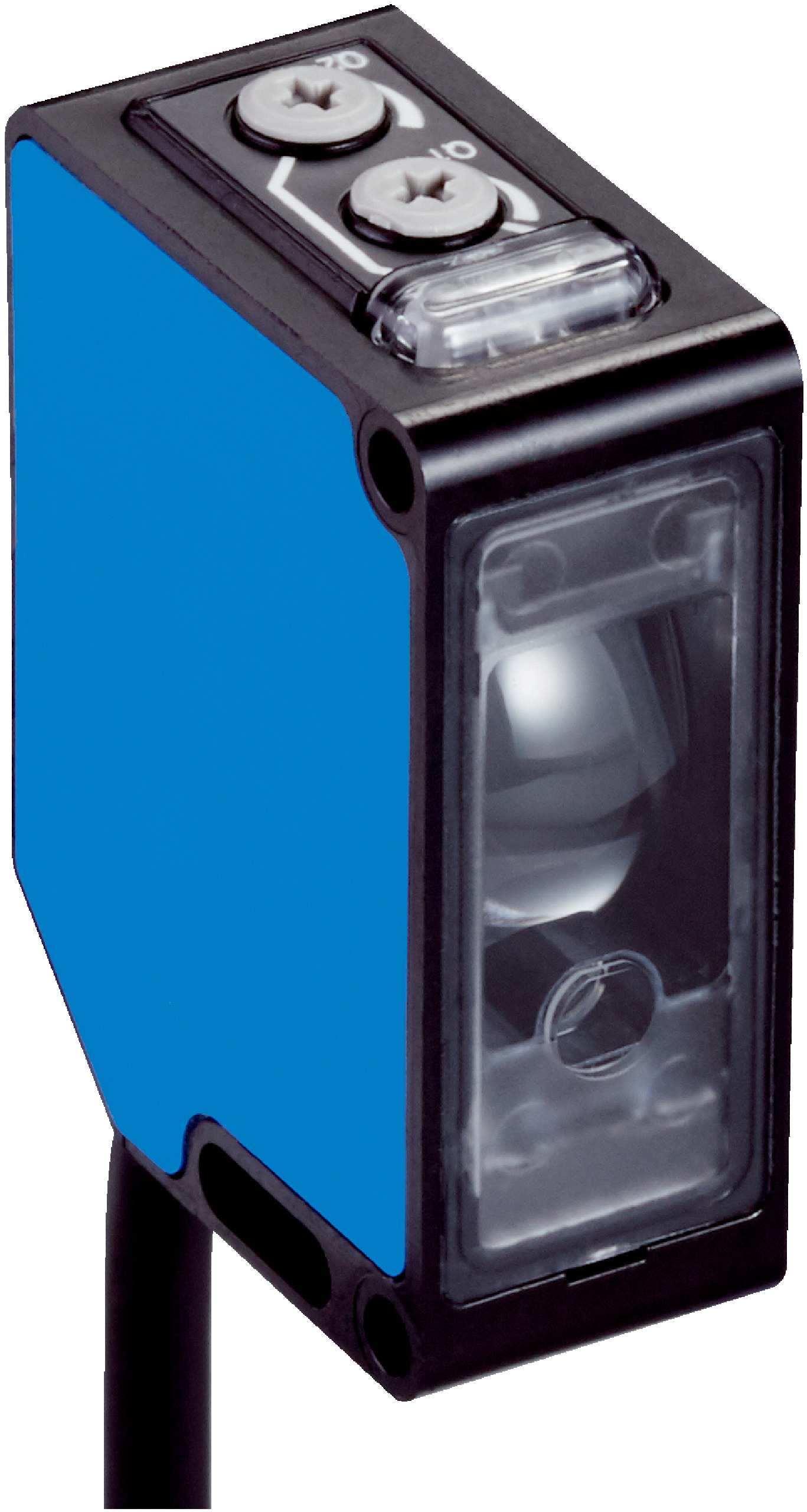

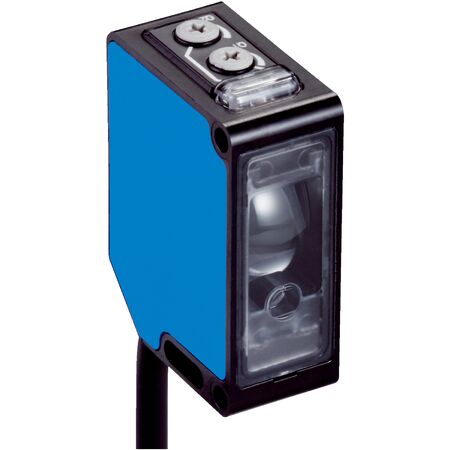

Photoelectric Proximity Sensor WTT190L-P3536 | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The WTT190L-P3536 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and optical time-of-flight technology. With a sensing range of 200 mm to 2,500 mm and a fast response time of ≤ 0.5 ms, it's perfect for object detection in material handling and safety applications. The IP67 rated enclosure ensures durability in harsh environments, making it an ideal choice for manufacturing and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 75 mA
- Switching output: PNP, 2 outputs (Q1, Q2)
- Switching mode: Light/dark selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Enclosure rating: IP67
- Warm-up time: < 5 minutes
- Initialization time: < 300 ms
- Laser wavelength: 658 nm
- Light spot size at 2,500 mm: Ø 10 mm
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Connection: Cable with M12 5-pin plug, 0.3 m length
- Dimensions (H x L x W): 47mm x 34mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 200 mm to 2,500 mm
- Laser class 1 compliant with IEC 60825-1 standards
- Adjustable potentiometer with 4 turns for sensitivity tuning
- Dual PNP switching outputs with selectable light/dark switching mode
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Supplied with BEF-W190 mounting bracket
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical wiring standards to ensure proper setup and compliance.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and presence detection in manufacturing
- Robotics and process control
Standards & Compliance
- Complies with AS/NZS 60035 – Electrical Equipment in Explosive Atmospheres
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT190L-P3536 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
