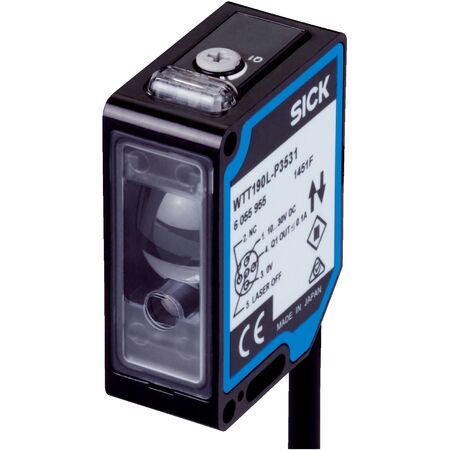

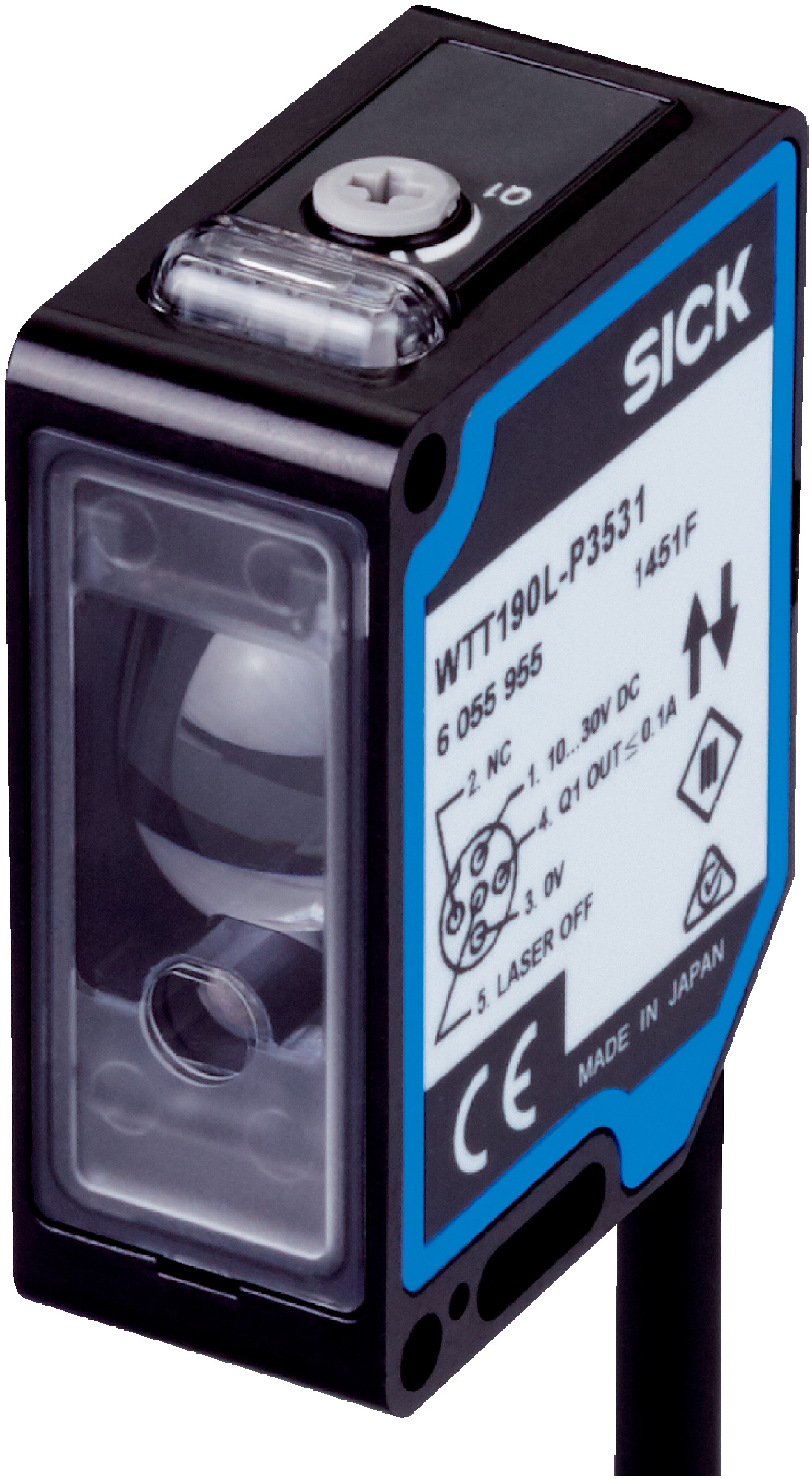

Photoelectric Proximity Sensor WTT190L-N1131 | Background Suppression | IP67 Rated | Fast Response Time | by SICK
The WTT190L-N1131 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and a sensing range of 200 mm to 2,500 mm. With a fast response time of ≤ 0.5 ms and an IP67 rated enclosure, it ensures reliable performance in challenging environments. Ideal for material handling, safety detection, and robotics, this sensor is built for efficiency and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 200 mm to 2,500 mm
- Light source: Visible red laser, wavelength 658 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Adjustment: Potentiometer, 4 turns
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 75 mA
- Switching output: NPN, 1 output
- Switching mode: Light/dark selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP67
- Warm-up time: < 5 minutes
- Initialization time: < 300 ms
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Connection type: 4-wire cable, 2 m length
- Dimensions (H x L x W): 47mm x 34mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 200 mm to 2,500 mm
- Laser class 1 compliant with IEC 60825-1 standards
- Potentiometer adjustment with 4 turns
- IP67 rated enclosure for dust and water protection
- Fast response time of ≤ 0.5 ms and switching frequency up to 1,000 Hz
- Single NPN switching output with selectable light/dark switching mode
- Supplied with BEF-W190 mounting bracket
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and presence detection in manufacturing
- Robotics and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP67 rated housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT190L-N1131 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
