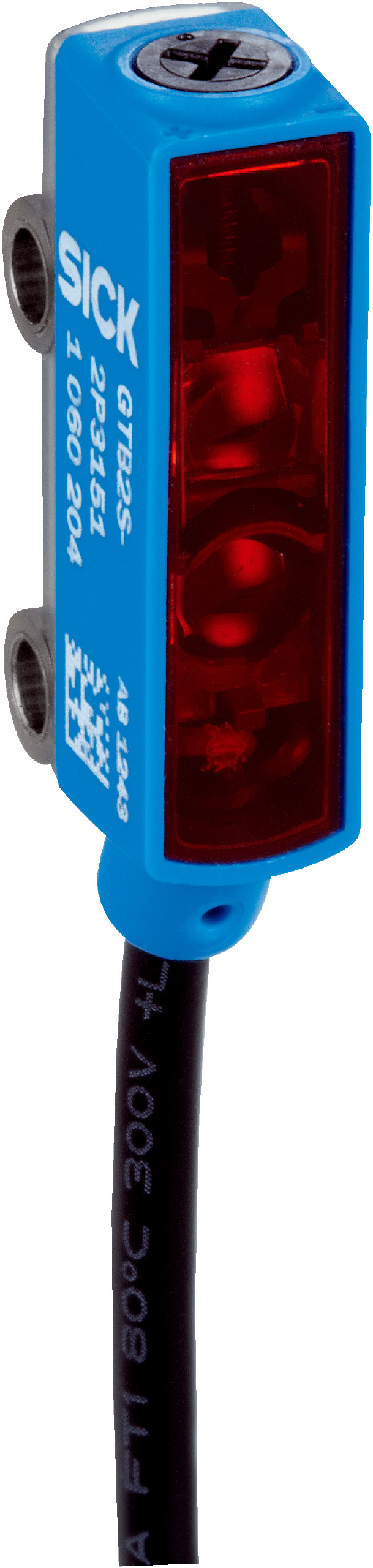

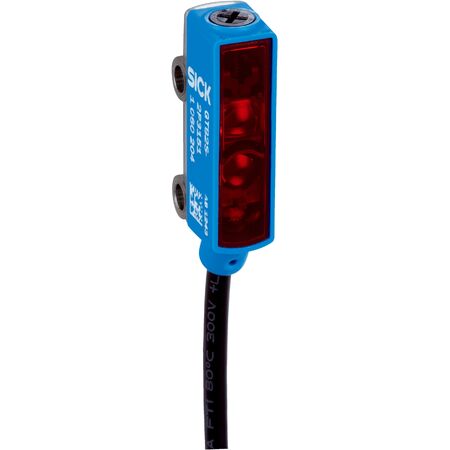

Photoelectric Proximity Sensor GTB2S-P5451 | Background Suppression | IP67 Rated | High Switching Frequency | by SICK
The Photoelectric Proximity Sensor GTB2S-P5451 is designed for industrial automation, featuring background suppression and a high switching frequency of 800 Hz. With an IP67 rating for dust and water protection, this sensor operates effectively in challenging environments, making it ideal for manufacturing process control and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, light switching mode
- Maximum output current: ≤ 50 mA
- Response time: < 0.6 ms
- Switching frequency: 800 Hz
- Connection: Cable with M8 3-pin connector, 200 mm length
- Cable material: PVC, diameter 3 mm
- Circuit protection: Types A, C, D
- Housing material: ABS plastic
- Optics material: PMMA plastic
- Enclosure rating: IP67
- Operating temperature: -25°C to +50°C
- Storage temperature: -40°C to +75°C
- Light source: PinPoint LED, 640 nm wavelength
- Light spot size: Ø 3.5 mm at 50 mm distance
- Dimensions (H x L x W): 27.5mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red light
- Sensing range from 2 mm to 120 mm
- PinPoint LED light source with 640 nm wavelength
- Potentiometer adjustment with 3 turns
- High switching frequency of 800 Hz
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +50°C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Robotics and safety monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable ABS and PMMA plastic housing extends product life reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GTB2S-P5451 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
