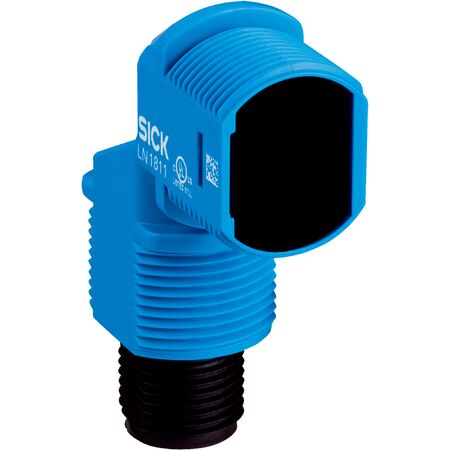

Photoelectric Proximity Sensor | Background Suppression | IP67 Rated | High Switching Frequency | by SICK
The Photoelectric Proximity Sensor ZTB18-4PZ4A1D02 features background suppression and a high switching frequency of 500 kHz, making it ideal for industrial automation and manufacturing process control. With an IP67 rating for dust and water protection, this sensor operates efficiently in challenging environments, ensuring reliable object detection and safety in robotics and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: PNP, light switching
- Output current max: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Connection type: Male connector M12, 4-pin
- Circuit protection: A, B, D
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Wave length: 850 nm
- Light spot size: Ø 8 mm at 100 mm distance
- Dimensions (H x L x W): 44mm x 33mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Hybrid housing design with M18 thread diameter
- Sensing range from 5 mm to 50 mm
- Infrared light source with PinPoint LED
- Light spot size Ø 8 mm at 100 mm distance
- High switching frequency of 500 kHz
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -40 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Robotics and safety systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable ABS and PMMA plastic housing reduces material waste
- Long operational life reduces replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZTB18-4PZ4A1D02 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
