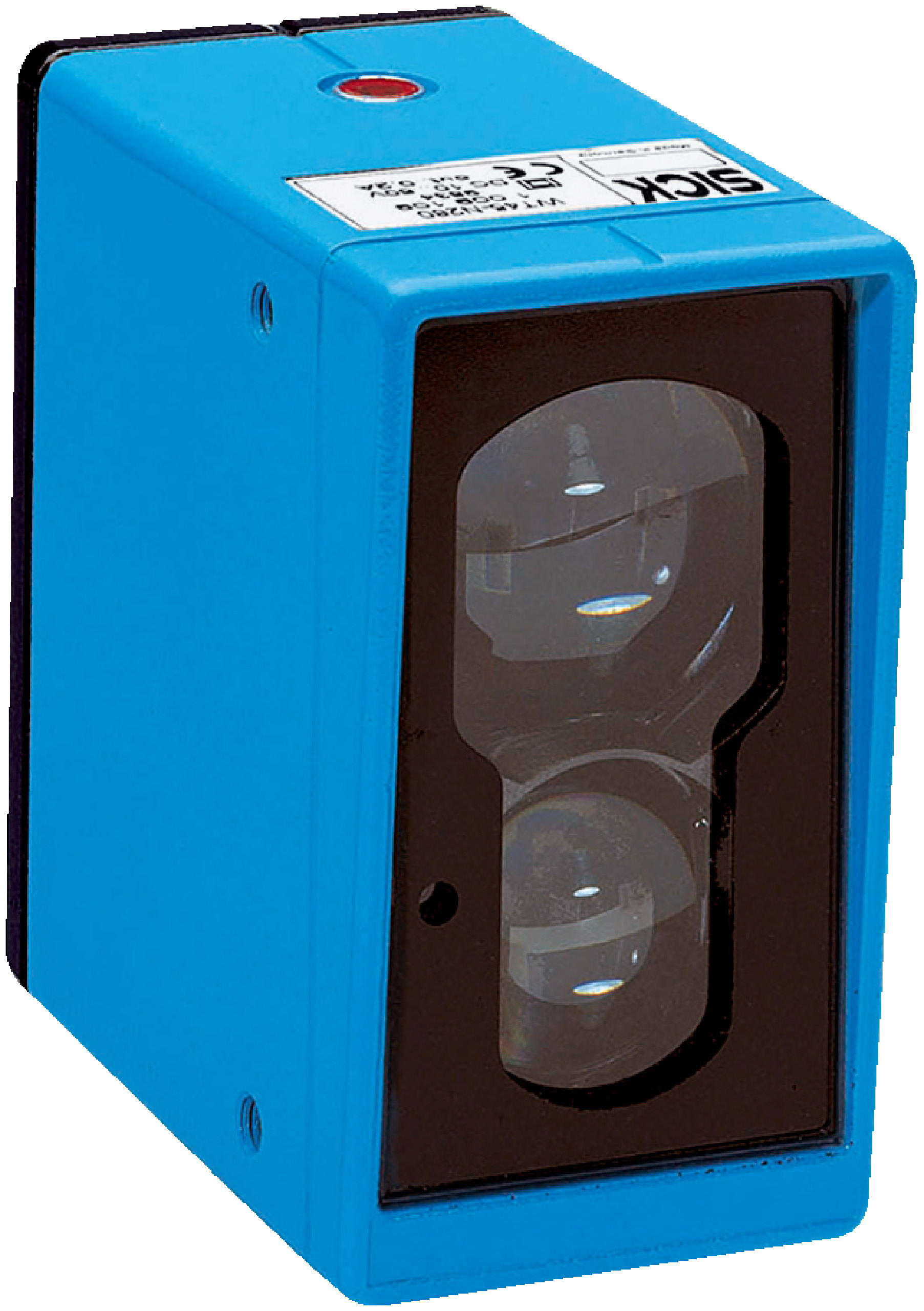

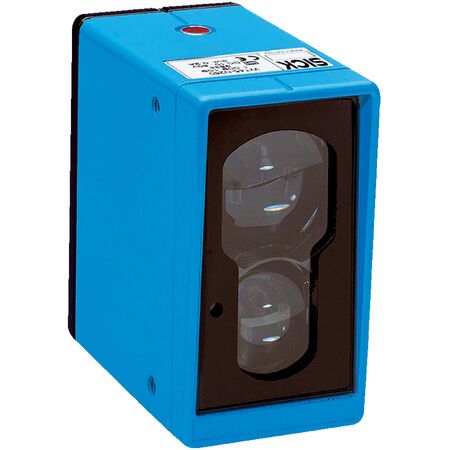

Photoelectric Proximity Sensor WT45-P200S03 | Background Suppression | IP67 Rated | Hot Object Detection | by SICK
The Photoelectric Proximity Sensor WT45-P200S03 is designed for industrial automation, featuring background suppression and a sensing range of 200 mm to 1000 mm. With a robust IP67 rating, it excels in harsh environments and can detect hot objects with surface temperatures exceeding 800°C. Ideal for machine safety and process control, this sensor ensures reliable performance in demanding applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor WT45-P200S03 | Background Suppression | IP67 Rated | Hot Object Detection | by SICK
Brand: SICK
SKU: 1015316
Alternatively Known As: Photoelectric Proximity Sensor, Background Suppression Sensor, Industrial Proximity Sensor, Hot Object Sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 200 mm to 1000 mm
- Light source: Visible red LED
- Light spot size at 1000 mm: Ø 35 mm
- Supply voltage: 10 V DC to 60 V DC
- Current consumption: 50 mA
- Switching output: PNP complementary
- Output current max: ≤ 200 mA
- Response time: ≤ 6 ms
- Switching frequency: 50 Hz
- Connection type: Terminal connection with PG13.5, 6-pin
- Protection class: I
- Enclosure rating: IP67
- Ambient operating temperature: -25°C to +55°C
- Ambient storage temperature: -40°C to +70°C
- Weight: 800 g
- Special feature: Detection of hot objects with surface temperatures > 800°C
- Dimensions (H x L x W): 105mm x 105mm x 60mm
- Weight: 0.8 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light LED source
- Sensing range from 200 mm to 1000 mm
- Rectangular metal housing design
- Potentiometer adjustment
- Light/dark switching mode with complementary PNP output
- High protection rating IP67 suitable for harsh environments
- Can detect hot objects with surface temperatures > 800°C
- Fast response time ≤ 6 ms and switching frequency 50 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Detection of hot objects with surface temperatures above 800°C
- Machine safety and process control
- Harsh environment sensing with IP67 protection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable metal housing reduces replacement frequency and waste
- Energy-efficient LED light source minimizes power consumption
- Long service life reduces environmental impact of frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WT45-P200S03 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring reliable object detection.
