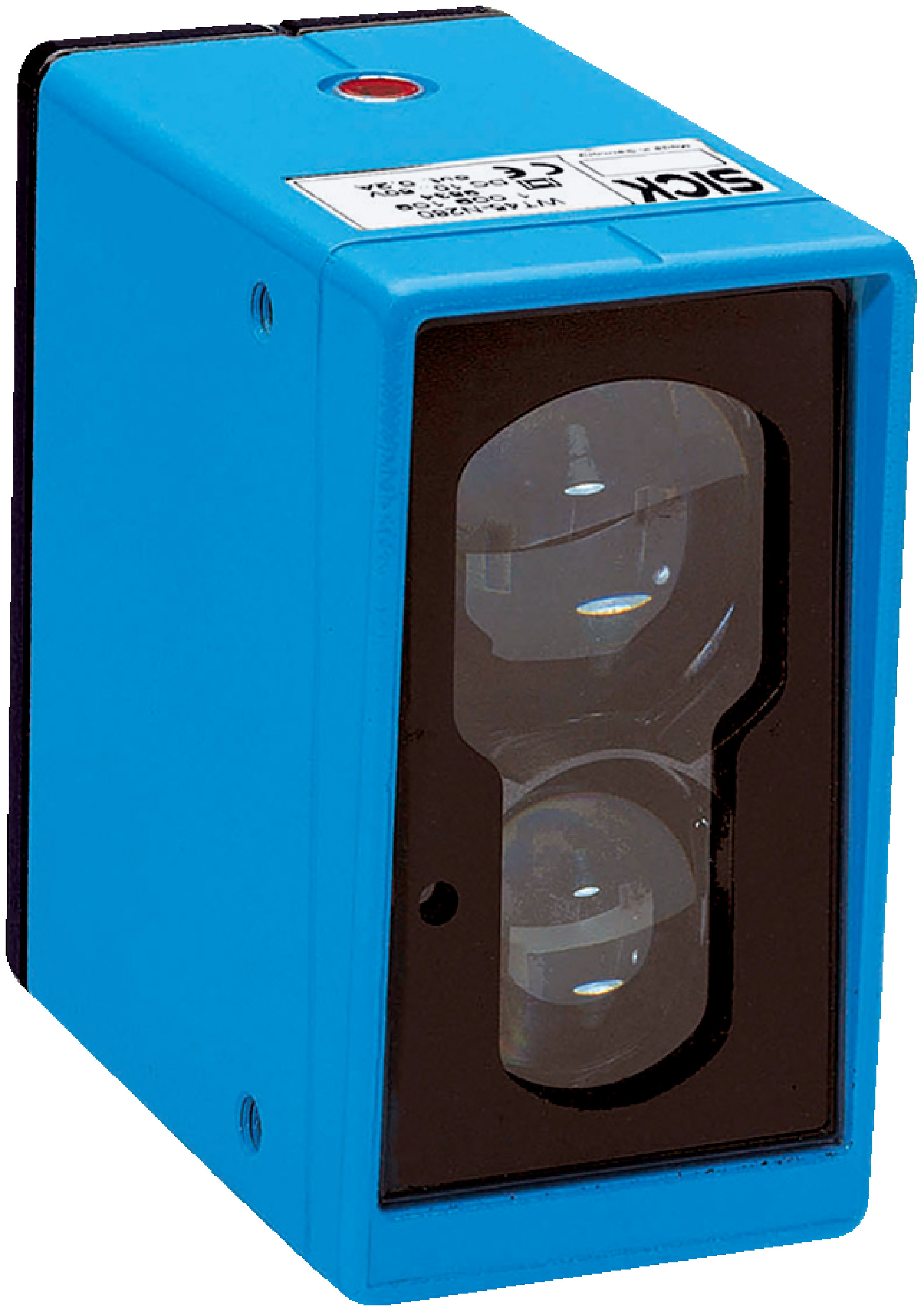

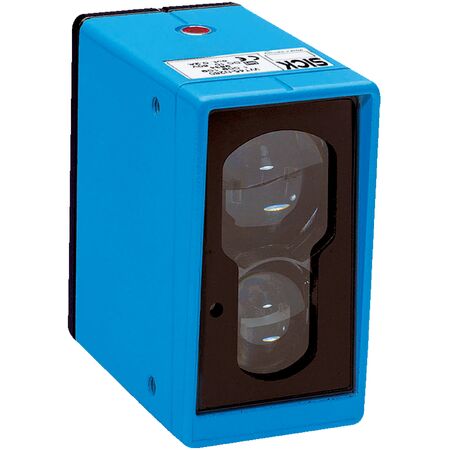

Photoelectric Proximity Sensor WT45-R200S04 | Background Suppression | IP67 Rated | Hot Object Detection | by SICK
The Photoelectric Proximity Sensor WT45-R200S04 is designed for industrial automation, featuring background suppression and a sensing range of 200 mm to 1000 mm. With a robust IP67 rating and the ability to detect hot objects over 800°C, this sensor is perfect for harsh environments. Its durable metal housing and low power consumption ensure reliability and energy efficiency, making it an ideal choice for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor WT45-R200S04 | Background Suppression | IP67 Rated | Hot Object Detection | by SICK
Brand: SICK
SKU: 1015317
Alternatively Known As: Photoelectric Proximity Sensor, Background Suppression Sensor, Industrial Proximity Sensor, Hot Object Sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 200 mm to 1000 mm
- Light source: Visible red LED
- Light spot size at 1000 mm: Ø 35 mm
- Supply voltage: 20 V AC/DC to 250 V AC/DC
- Power consumption: ≤ 3 VA
- Switching output: Electrically isolated relay with change-over contacts
- Switching current: 4 A @ 250 V AC, 4 A @ 24 V DC
- Response time: ≤ 20 ms
- Switching frequency: 10 Hz
- Connection type: Terminal connection with PG13.5, 6-pin
- Protection class: I
- Enclosure rating: IP67
- Ambient operating temperature: -25°C to +55°C
- Housing material: Metal
- Dimensions (H x L x W): 105mm x 105mm x 60mm
- Weight: 0.8 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular metal housing with visible red LED light source
- Sensing range from 200 mm to 1000 mm
- Potentiometer adjustment for sensitivity
- Relay output with change-over contacts
- Protection class I and IP67 enclosure rating
- Suitable for detection of hot objects > 800°C
- Operating temperature range from -25°C to +55°C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure compliance with electrical safety standards and proper sensor operation.
Applications
- Industrial automation for object detection
- Detection of hot objects with surface temperatures above 800°C
- Use in harsh environments requiring IP67 protection
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Durable metal housing reduces waste through extended product life
- Low power consumption of ≤ 3 VA supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WT45-R200S04 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and hot object detection applications.
