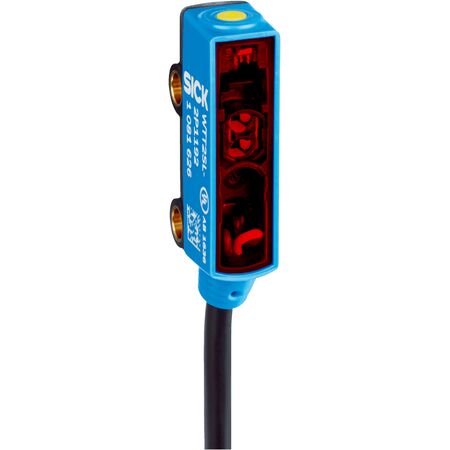

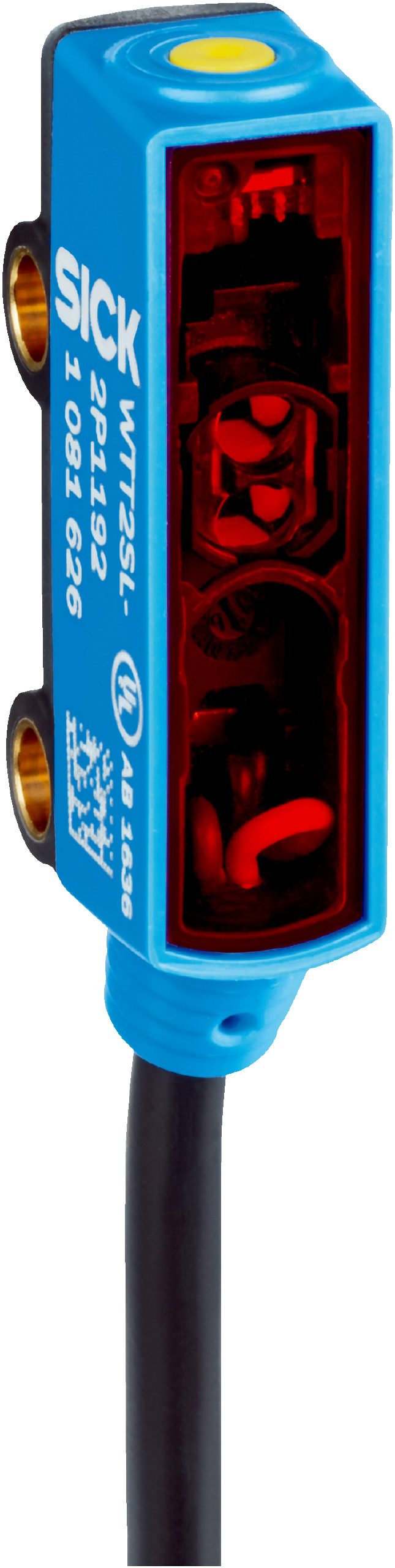

Photoelectric Proximity Sensor WTT2SL-2P1192 | Background Suppression | IP67 Rated | Infrared Laser | by SICK
The WTT2SL-2P1192 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation, featuring a sensing range of 50 mm to 800 mm and background suppression technology. With an IP67 rated enclosure for dust and water protection, this sensor operates on a low current of 20 mA and offers a quick response time of 90 ms, making it ideal for manufacturing processes and optical time-of-flight measurements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 50 mm to 800 mm
- Type of light: Infrared laser (940 nm wavelength)
- Laser class: 1
- Adjustment: Single teach-in button
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, light/dark switching
- Output current max: ≤ 50 mA
- Response time: Typical 90 ms
- Switching frequency: 5 Hz
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic (MABS ABS)
- Optics material: Plastic (PMMA)
- Connection type: 4-wire cable, 2 m length, PVC insulated
- Dimensions (H x L x W): 27.5mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with infrared laser light source
- Sensing range from 50 mm to 800 mm
- Laser class 1 safety certified
- Single teach-in button for easy adjustment
- IP67 rated enclosure for dust and water protection
- Low current consumption of 20 mA
- Light/dark switching mode with PNP output
- Response time typically 90 ms
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection according to safety standards.
Applications
- Industrial automation for detecting small objects
- Background suppression sensing in manufacturing processes
- Optical time-of-flight measurement applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT2SL-2P1192 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
