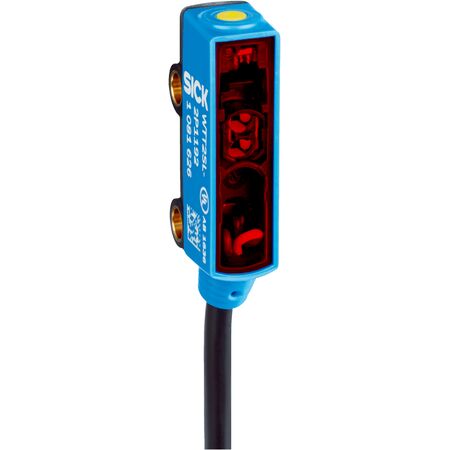

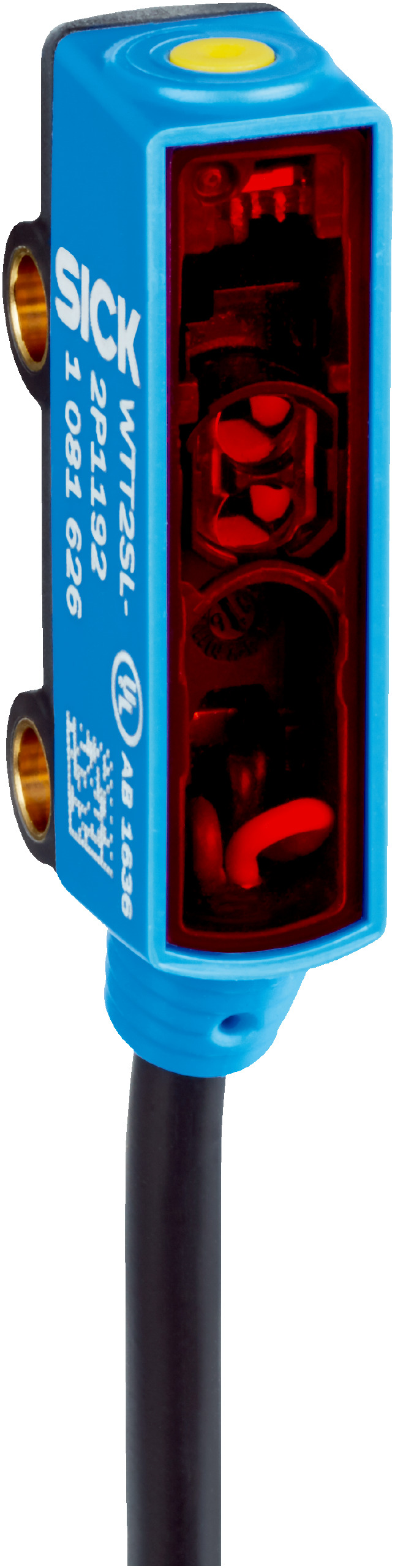

Photoelectric Proximity Sensor WTT2SL-2N1192 | Background Suppression | IP67 Rated | Infrared Laser | by SICK
The WTT2SL-2N1192 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation, featuring a sensing range of 50 mm to 800 mm and a background suppression capability. With an infrared laser light source and an IP67 rated enclosure, it ensures reliable performance in challenging environments, making it ideal for manufacturing lines and optical measurement applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 50 mm to 800 mm
- Light source: Infrared laser, wavelength 940 nm
- Laser class: 1
- Adjustment: Single teach-in button
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN, light/dark switching
- Output current max: ≤ 50 mA
- Response time: Typical 90 ms
- Switching frequency: 5 Hz
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic (MABS ABS)
- Optics material: Plastic (PMMA)
- Connection: 4-wire cable, 2 m length, PVC insulated
- Dimensions (H x L x W): 27.5mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with infrared laser light source
- Sensing range from 50 mm to 800 mm
- Laser class 1 safety rating
- Single teach-in button for easy adjustment
- IP67 rated enclosure for dust and water protection
- NPN switching output with light/dark switching mode
- Low current consumption of 20 mA
- Response time typically 90 ms
- Operating temperature range from -25°C to +50°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for detecting small objects
- Background suppression sensing in manufacturing lines
- Optical time-of-flight measurement applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT2SL-2N1192 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
