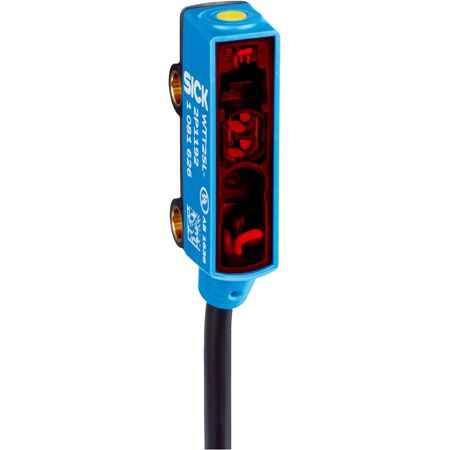

Photoelectric Proximity Sensor WTT2SL-2F3092S08 | Background Suppression | IP67 Rated | Infrared Laser | by SICK
The WTT2SL-2F3092S08 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 50 mm to 800 mm and background suppression technology. With an infrared laser light source and IP67 rated enclosure, it ensures reliable performance in challenging environments, making it ideal for detecting small objects and optimizing manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 50 mm to 800 mm
- Light source: Infrared laser, wavelength 940 nm
- Laser class: 1
- Adjustment: Single teach-in button
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, dark switching
- Output current max: ≤ 50 mA
- Response time: Typical 90 ms
- Switching frequency: 5 Hz
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic (MABS ABS)
- Optics material: Plastic (PMMA)
- Connection type: Cable with JST-connector, 550 mm length
- Operating temperature: -25 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Dimensions (H x L x W): 27.5mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with infrared laser light source
- Sensing range from 50 mm to 800 mm
- Laser class 1 safety
- Single teach-in button for easy adjustment
- IP67 rated enclosure for dust and water protection
- Dark switching PNP output with max 50 mA output current
- Response time typically 90 ms with 5 Hz switching frequency
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper sensor alignment and electrical connections.
Applications
- Industrial automation for detecting small objects
- Background suppression sensing in manufacturing lines
- Optical time-of-flight measurement applications
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 rated housing reduces waste from replacements
- Long MTTFD of 925 years ensures extended operational life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT2SL-2F3092S08 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
