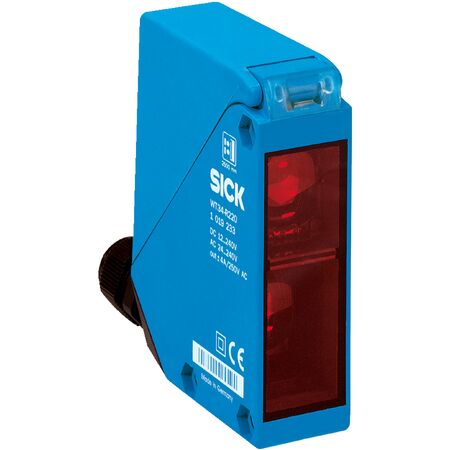

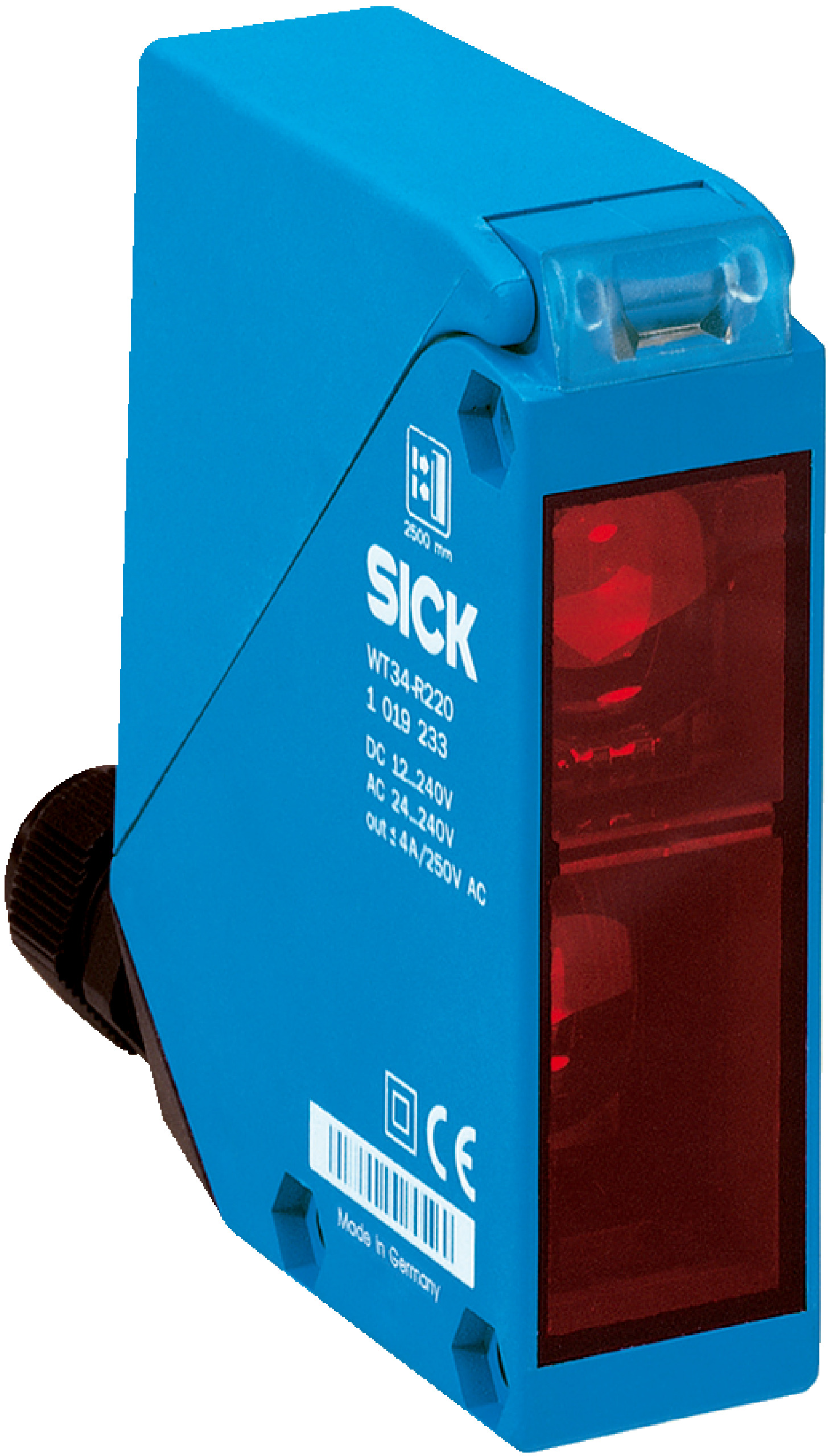

Photoelectric Proximity Sensor WT34-R210 | Background Suppression | IP67 Rated | Infrared LED | by SICK
The Photoelectric Proximity Sensor WT34-R210 is designed for industrial automation, featuring a sensing range of 100 mm to 2,500 mm and background suppression technology. With an IP67 rated enclosure and fast response time of ≤ 10 ms, it’s perfect for object detection in manufacturing processes, material handling, and robotics applications. Built for reliability, this sensor ensures optimal performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor WT34-R210 | Background Suppression | IP67 Rated | Infrared LED | by SICK
Brand: SICK
SKU: 1019232
Alternatively Known As: Photoelectric Proximity Sensor, Background Suppression Sensor, Infrared Proximity Sensor, Industrial Proximity Sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 100 mm to 2,500 mm
- Light source: Infrared LED
- Light spot size at 2,500 mm: Ø 80 mm
- Supply voltage: 20 V AC/DC to 250 V AC/DC
- Power consumption: < 2 VA
- Switching output: Relay, electrically isolated with change-over contacts
- Switching current: 4 A @ 250 V AC, 4 A @ 24 V DC
- Response time: ≤ 10 ms
- Switching frequency: 10 Hz
- Connection type: Terminal connection with M16 gland
- Protection class: II
- Enclosure rating: IP67
- Operating temperature: –40 °C to +60 °C
- Storage temperature: –40 °C to +75 °C
- Housing material: Plastic, ABS
- Weight: 140 g
- Dimensions (H x L x W): 92mm x 70mm x 27mm
- Weight: 0.14 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular plastic ABS housing with IP67 enclosure rating
- Sensing range from 100 mm to 2,500 mm using infrared LED light
- Selectable light/dark switching mode via potentiometer
- Relay output with change-over contacts, electrically isolated
- Fast response time of ≤ 10 ms and switching frequency of 10 Hz
- Wide supply voltage range from 20 V AC/DC to 250 V AC/DC
- Operating temperature range from –40 °C to +60 °C
- Terminal connection with M16 gland for secure wiring
- Certified with EU, UK, ACMA, CCC, cULus, and photobiological safety standards
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and monitoring in manufacturing processes
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption of less than 2 VA reduces energy usage
- Durable IP67 rated housing ensures long service life and reduces waste
- Complies with China-RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WT34-R210 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
