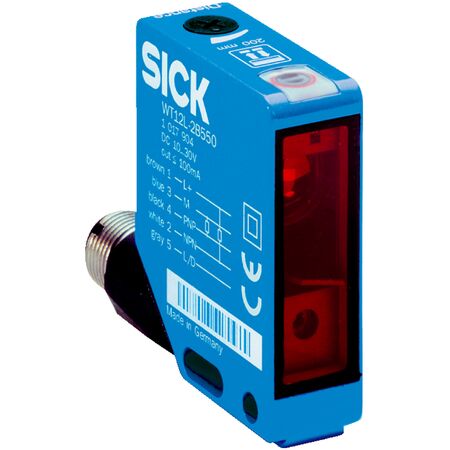

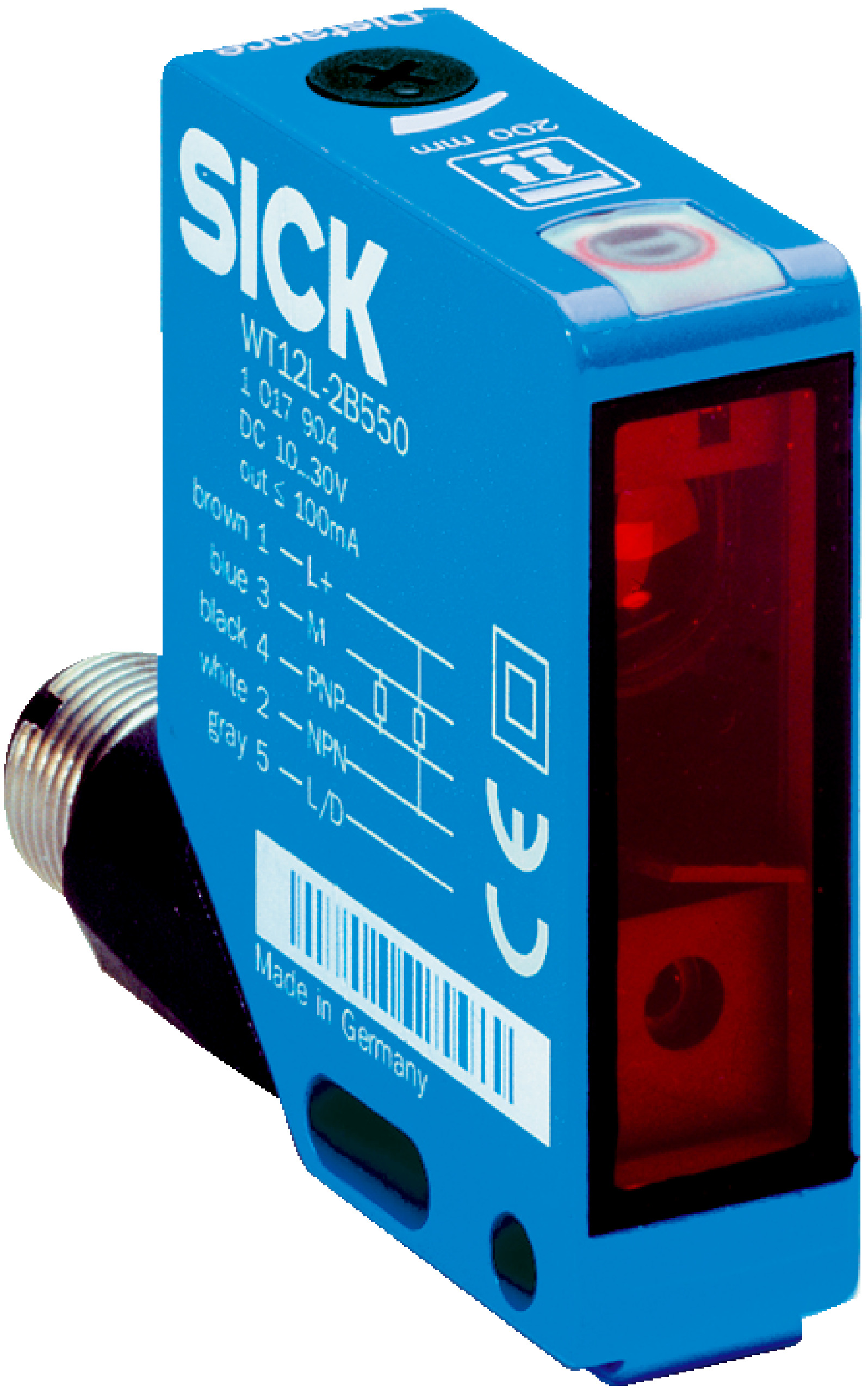

Photoelectric Proximity Sensor WT12L-2B530 | Background Suppression | IP67 & IP69K Rated | by SICK
The WT12L-2B530 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range of 30 mm to 200 mm and a high switching frequency of 2,500 Hz, it ensures reliable performance. Its robust IP67 and IP69K rated enclosure provides excellent protection against dust and water, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor WT12L-2B530 | Background Suppression | IP67 & IP69K Rated | by SICK
Brand: SICK
SKU: 1018250
Alternatively Known As: Photoelectric sensor, Proximity sensor, Laser sensor, Background suppression sensor, Industrial sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 55 mA
- Output type: PNP or NPN selectable
- Switching mode: Light switching or dark switching selectable
- Response time: ≤ 200 µs
- Switching frequency: 2,500 Hz
- Output current max: ≤ 100 mA
- Protection class: III
- Enclosure rating: IP67, IP69K
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -25 °C to +75 °C
- Connection: M12, 5-pin plug
- Weight: 130 g
- Dimensions (H x L x W): 49mm x 41.5mm x 15mm
- Weight: 0.13 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 30 mm to 200 mm
- Visible red laser light source with 650 nm wavelength
- Laser class 2 compliant with EN 60825-1:2014 and IEC 60825-1:2007
- Adjustable via potentiometer
- High switching frequency of 2,500 Hz
- IP67 and IP69K rated enclosure for robust protection
- Metal housing with plastic PMMA front screen
- Plug connection M12, 5-pin
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct sensor alignment, wiring, and compliance with safety standards.
Applications
- Detecting small objects
- Detection of objects moving at high speeds
- Industrial automation and safety systems
Standards & Compliance
- Complies with AS/NZS 61010 for electrical equipment safety
- Laser safety compliant with IEC 60825-1 standards
Environmental Benefits
- Durable metal housing and high ingress protection reduce waste and replacement frequency
- Energy-efficient operation with low current consumption (55 mA)
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WT12L-2B530 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
