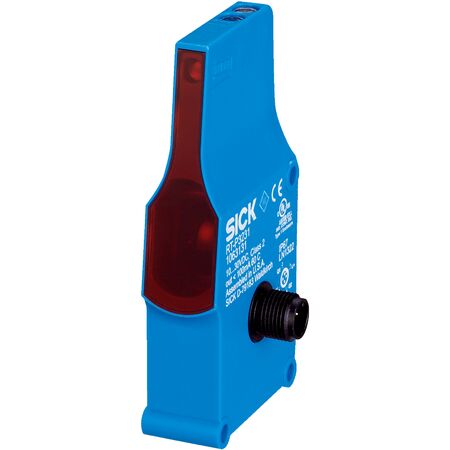

Photoelectric Proximity Sensor RT-P3223 | Background Suppression | IP67 Rated | PNP Output | by SICK
The Photoelectric Proximity Sensor RT-P3223 is designed for precise object detection in industrial automation, featuring a sensing range of 60 mm to 900 mm and an infrared LED light source with a 7° focus angle. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for safety and control systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 60 mm to 900 mm
- Focus angle: 7°
- Light source: Infrared LED
- Light spot size: Ø 20 mm at 500 mm distance
- Adjustment: Potentiometer with 9 turns
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, light/dark switching
- Output current max: ≤ 100 mA
- Response time: 2 ms
- Switching frequency: 250 Hz
- Connection: Cable with M12 male connector, 4-pin, 300 mm
- Circuit protection: Types A, C, D
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic, ABS
- Shock and vibration resistance: IEC 68 compliant
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Dimensions (H x L x W): 99mm x 49mm x 21mm
- Weight: 0.175 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 60 mm to 900 mm
- Infrared LED light source with 7° angle of dispersion
- Potentiometer adjustment with 9 turns for sensitivity tuning
- IP67 rated enclosure for dust and water protection
- Shock and vibration resistant according to IEC 68
- Operating temperature range from -40°C to +60°C
- PNP switching output with light/dark switching mode
- Response time of 2 ms and switching frequency of 250 Hz
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and control systems requiring precise proximity sensing
- ZoneControl applications in manufacturing and processing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK RT-P3223 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety control applications.
