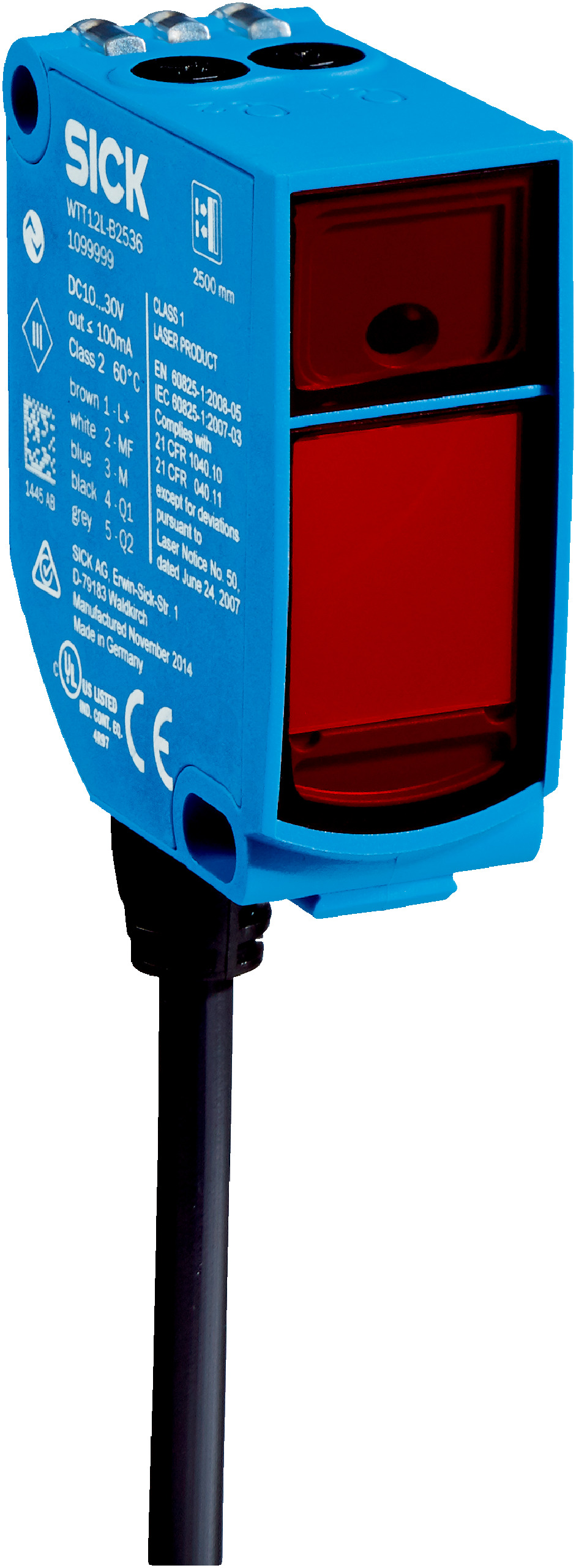

Photoelectric Proximity Sensor WTT12L-B3546 | Background Suppression | IP67 Rated | by SICK
The WTT12L-B3546 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and optical time-of-flight technology. With a sensing range of 50 mm to 1800 mm and a durable IP67-rated housing, it ensures reliable performance in harsh environments. Ideal for material handling, safety monitoring, and robotics applications, this sensor operates efficiently with low current consumption and fast response times.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 50 mm to 1800 mm
- Light source: Visible red laser, wavelength 658 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching output: Push-pull PNP/NPN, 2 outputs
- Output current max: ≤ 100 mA
- Response time: ≤ 16.7 ms
- Switching frequency: 30 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -35°C to +50°C
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Connection: Cable with M12, 5-pin plug, 0.3 m length
- Dimensions (H x L x W): 49.6mm x 44.2mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 50 mm up to 1800 mm
- Laser class 1 compliant with IEC 60825-1 standards
- Dual switching outputs (PNP/NPN) with push-pull switching mode
- High protection rating of IP67 for harsh environments
- Wide operating temperature range from -35°C to +50°C
- Low current consumption of 70 mA
- Fast response time of ≤16.7 ms and switching frequency of 30 Hz
- Durable plastic VISTAL® housing and PMMA optics
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and monitoring in manufacturing processes
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low current consumption reduces power usage
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT12L-B3546 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
