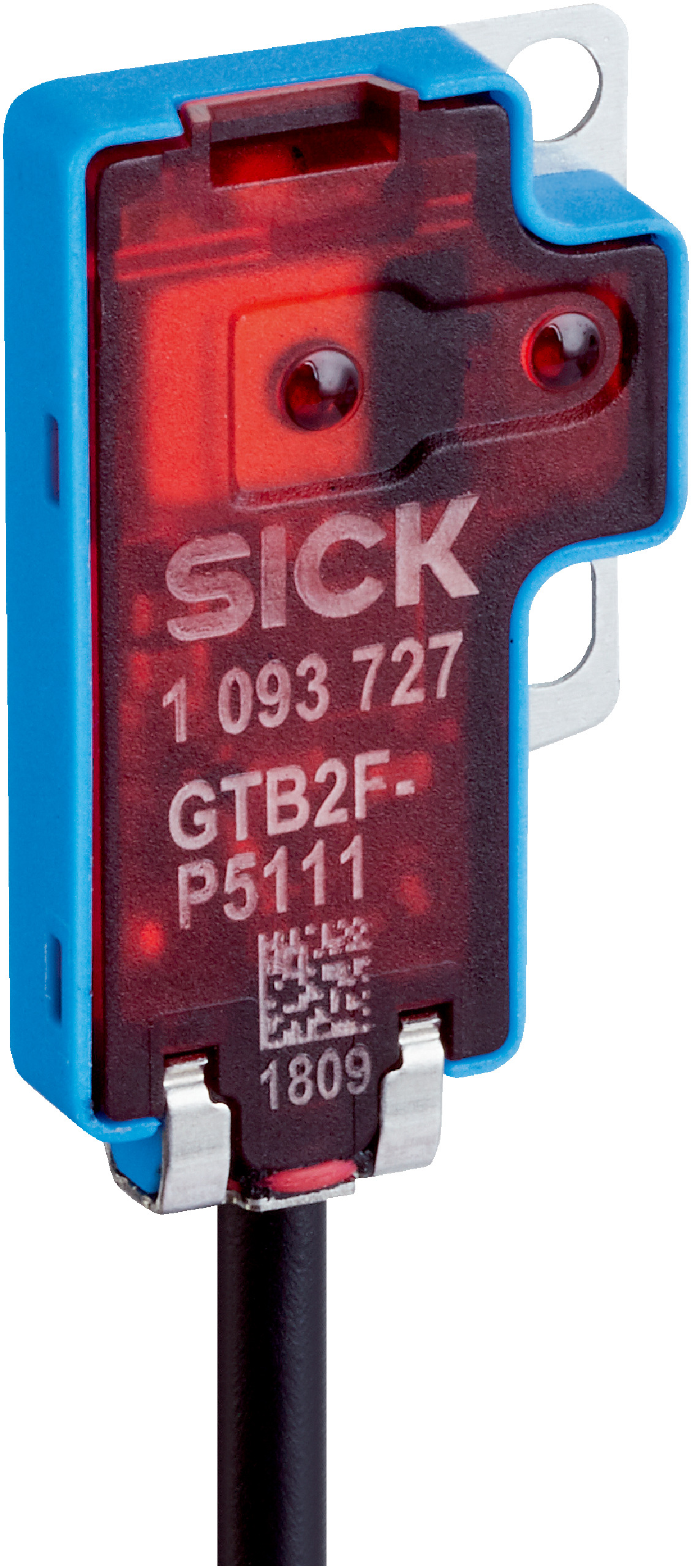

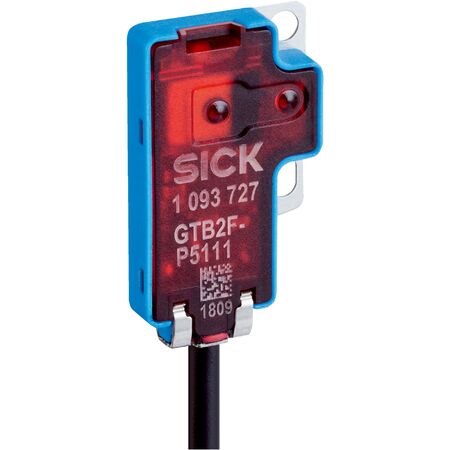

Photoelectric Proximity Sensor GTB2F-P5101S08 | Background Suppression | IP67 Rated | by SICK
The GTB2F-P5101S08 photoelectric proximity sensor is designed for precise object detection in industrial automation. With a sensing range of 1 mm to 29 mm and a high switching frequency of 800 Hz, it ensures reliable performance. Its IP67 rated enclosure provides excellent dust and water protection, making it ideal for manufacturing process control and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Minimum detectable object: 0.1 mm
- Sensing range max: 31 mm
- Type of light: Visible red light
- Light source: PinPoint LED
- Light spot size: Ø 4 mm at 30 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Ripple: < 5 V pp
- Current consumption: 20 mA
- Switching output: PNP
- Switching mode: Light switching
- Output current max: ≤ 50 mA
- Response time: < 0.625 ms
- Switching frequency: 800 Hz
- Connection type: Cable with M8, 3-pin connector, 200 mm
- Cable material: Plastic, PVC
- Cable diameter: Ø 2.3 mm
- Circuit protection: Types A, C, D
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, MABS
- Enclosure rating: IP67
- Operating temperature: –20 °C to +50 °C
- Storage temperature: –40 °C to +70 °C
- Repeatability: 0.1 mm
- Hysteresis: < 2 mm
- Dimensions (H x L x W): 24mm x 3.5mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red light
- PinPoint LED light source with 660 nm wavelength
- Sensing range from 1 mm to 29 mm
- High switching frequency of 800 Hz
- IP67 rated enclosure for dust and water protection
- Cable with M8, 3-pin connector, 200 mm length
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging machinery
- Robotics and material handling
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GTB2F-P5101S08 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
