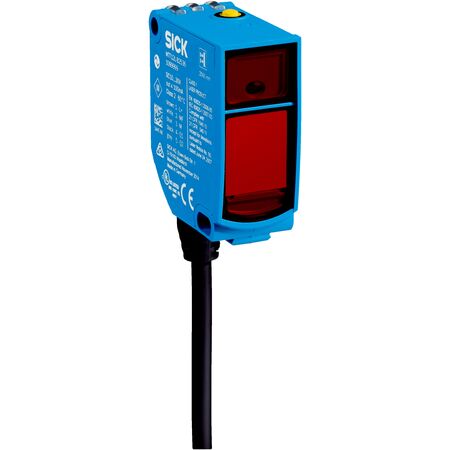

Photoelectric Proximity Sensor WTT12L-B3532 | Background Suppression | Laser Technology | IP67 Rated | by SICK
The WTT12L-B3532 Photoelectric Proximity Sensor is designed for industrial automation, featuring advanced background suppression and optical time-of-flight technology. With a sensing range of 50 mm to 2,500 mm and a fast response time of ≤ 0.5 ms, it ensures precise object detection in various applications. Its durable IP67 rated enclosure provides protection against dust and water, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching output: Push-pull PNP/NPN, 2 outputs (Q, /Q)
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Light source: Laser, wavelength 658 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Enclosure rating: IP67
- Warm-up time: < 15 minutes
- Initialization time: < 300 ms
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Connection type: Cable with M12, 5-pin plug, 0.3 m length
- Dimensions (H x L x W): 49.6mm x 44.2mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 50 mm up to 2,500 mm
- Laser class 1 compliant with IEC 60825-1 standards
- Single teach-in button for easy adjustment
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- Push-pull PNP/NPN switching output with light/dark switching mode
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -35 °C to +50 °C
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP67 housing extends product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT12L-B3532 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
