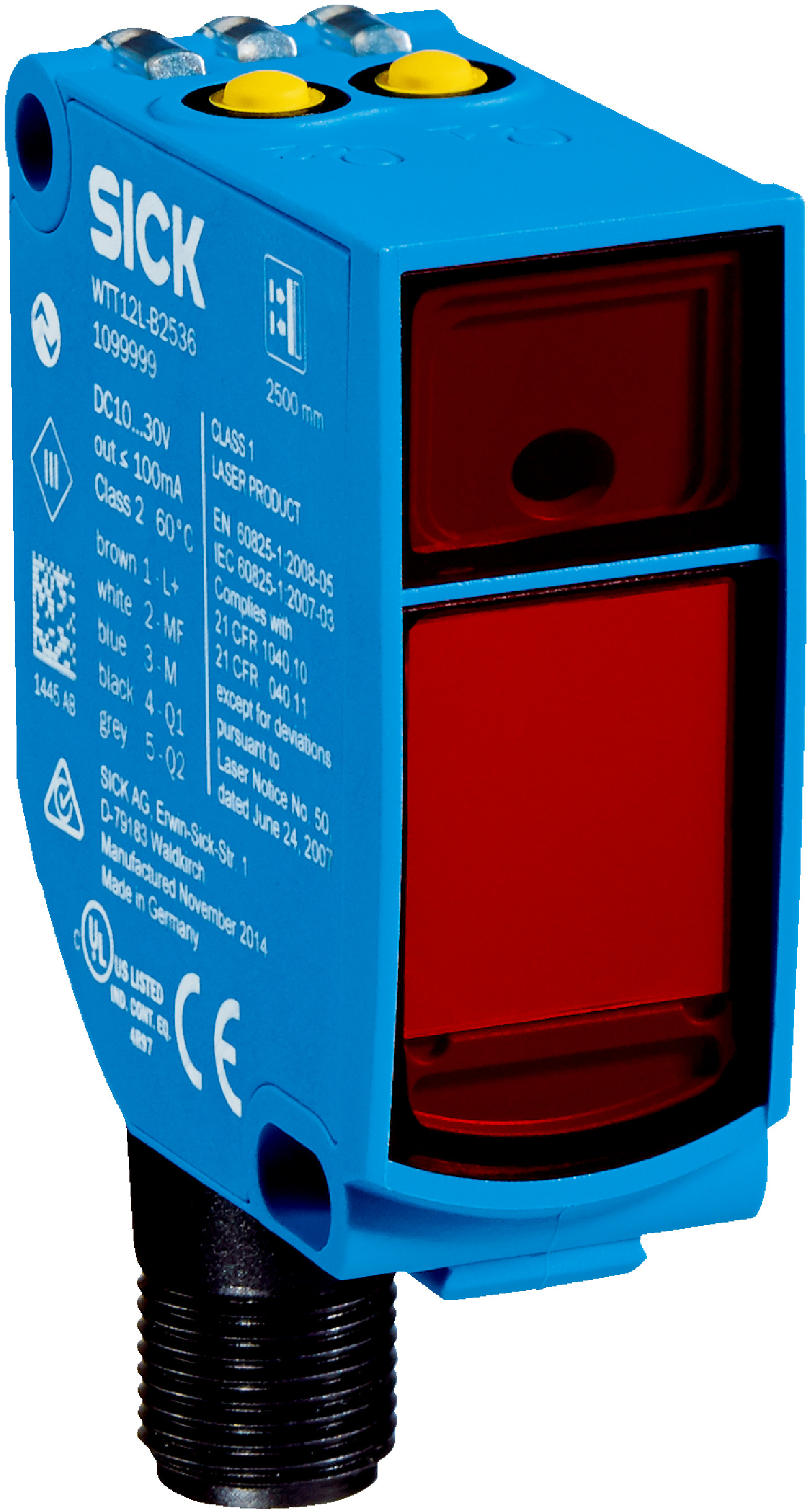

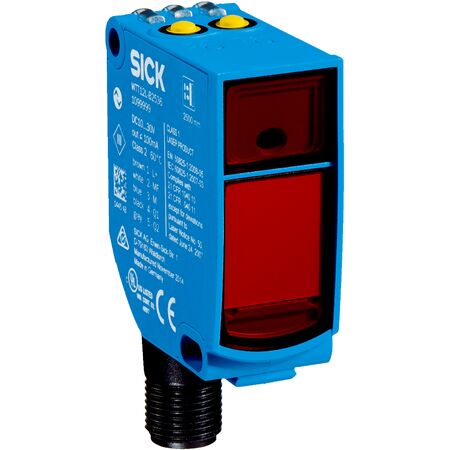

Photoelectric Proximity Sensor WTT12L-B2547 | Background Suppression | Laser Technology | IP67 Rated | by SICK
The WTT12L-B2547 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and optical time-of-flight technology. With a robust IP67 rating and a sensing range of 50 mm to 1800 mm, it's perfect for object detection in harsh environments. Ideal for material handling, packaging systems, and safety applications, this sensor ensures reliable performance with a fast response time of ≤16.7 ms.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching output: Push-pull PNP/NPN, 2 outputs
- Output current max: ≤ 100 mA
- Response time: ≤ 16.7 ms
- Switching frequency: 30 Hz
- Light source: Laser, wavelength 658 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Protection class: III
- Enclosure rating: IP67
- Warm-up time: < 15 minutes
- Initialization time: < 300 ms
- Connection type: Plug, M12, 5-pin
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Operating temperature: -35°C to +50°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 49.6mm x 44.2mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 50 mm up to 1800 mm
- Laser class 1 compliant with IEC 60825-1 standards
- Single teach-in button for easy adjustment
- Dual push-pull switching outputs (PNP/NPN) with light switching mode
- High protection rating of IP67 for harsh environments
- Wide operating temperature range from -35°C to +50°C
- Robust plastic VISTAL® housing with PMMA optics
- Fast response time of ≤16.7 ms and switching frequency of 30 Hz
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and presence detection in manufacturing
- Robotics and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP67 rated housing minimizes waste through extended product life
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT12L-B2547 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
