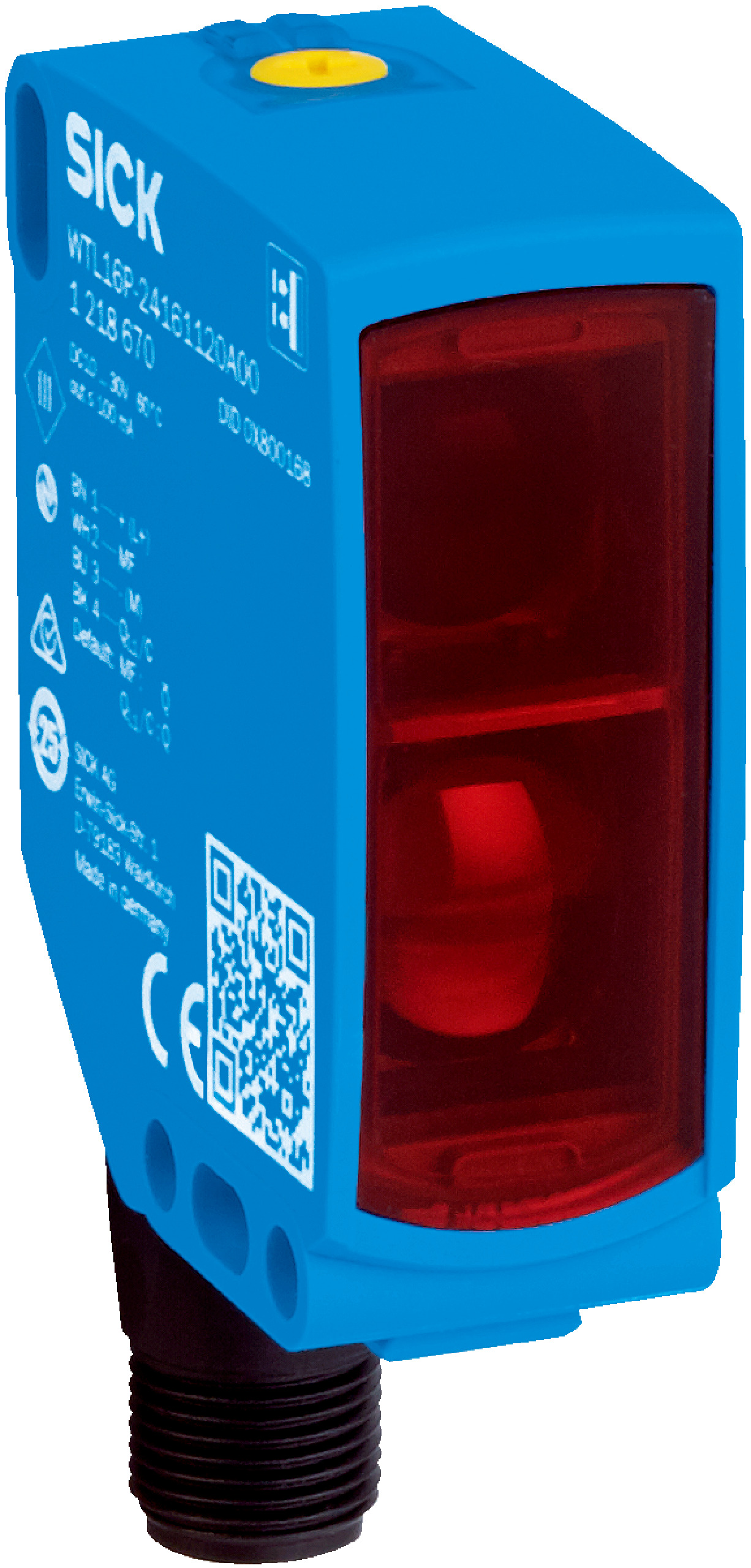

Photoelectric Proximity Sensor | Background Suppression | LineSpot Technology | IO-Link Interface | by SICK
The photoelectric proximity sensor with background suppression is designed for precise object detection in industrial automation. Featuring LineSpot technology for a line-shaped light spot and an IO-Link interface for easy parameter configuration, this sensor operates efficiently in environments requiring high accuracy. With a robust IP66, IP67, and IP69 rated housing, it ensures durability and reliability across various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Light spot size: 3 mm x 30 mm at 200 mm distance
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Output type: PNP digital output, max 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Housing material: Plastic VISTAL®
- Front screen material: Plastic PMMA
- Connection: Male M12, 4-pin connector
- Enclosure rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Communication: IO-Link COM2 (38.4 kBaud), cycle time 2.3 ms
- Dimensions (H x L x W): 55.7mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- LineSpot technology with line-shaped light spot
- PinPoint LED visible red light with 3 mm x 30 mm light spot at 200 mm
- BluePilot for setting sensing range
- IO-Link interface for sensor parameter configuration and Smart Task functions
- LED indicators for sensing range, operating status, and object presence
- High switching frequency up to 1000 Hz and fast response time ≤ 500 µs
- Robust plastic VISTAL® housing with IP66, IP67, and IP69 protection ratings
- Wide ambient operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor configuration and secure electrical connections.
Applications
- Industrial automation for object detection
- Detecting perforated objects in manufacturing
- Use in environments requiring precise background suppression
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

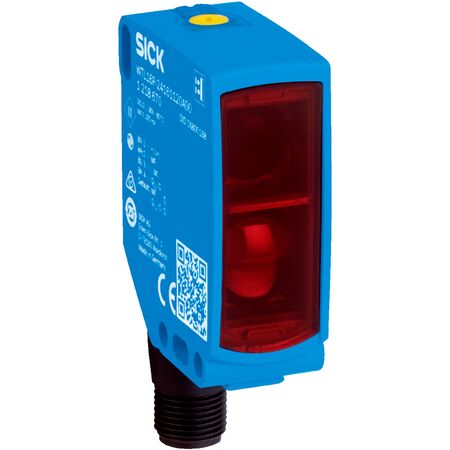

The SICK WTL16P-24861120A00 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
