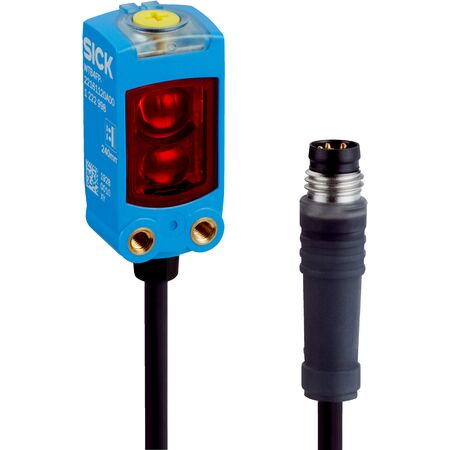

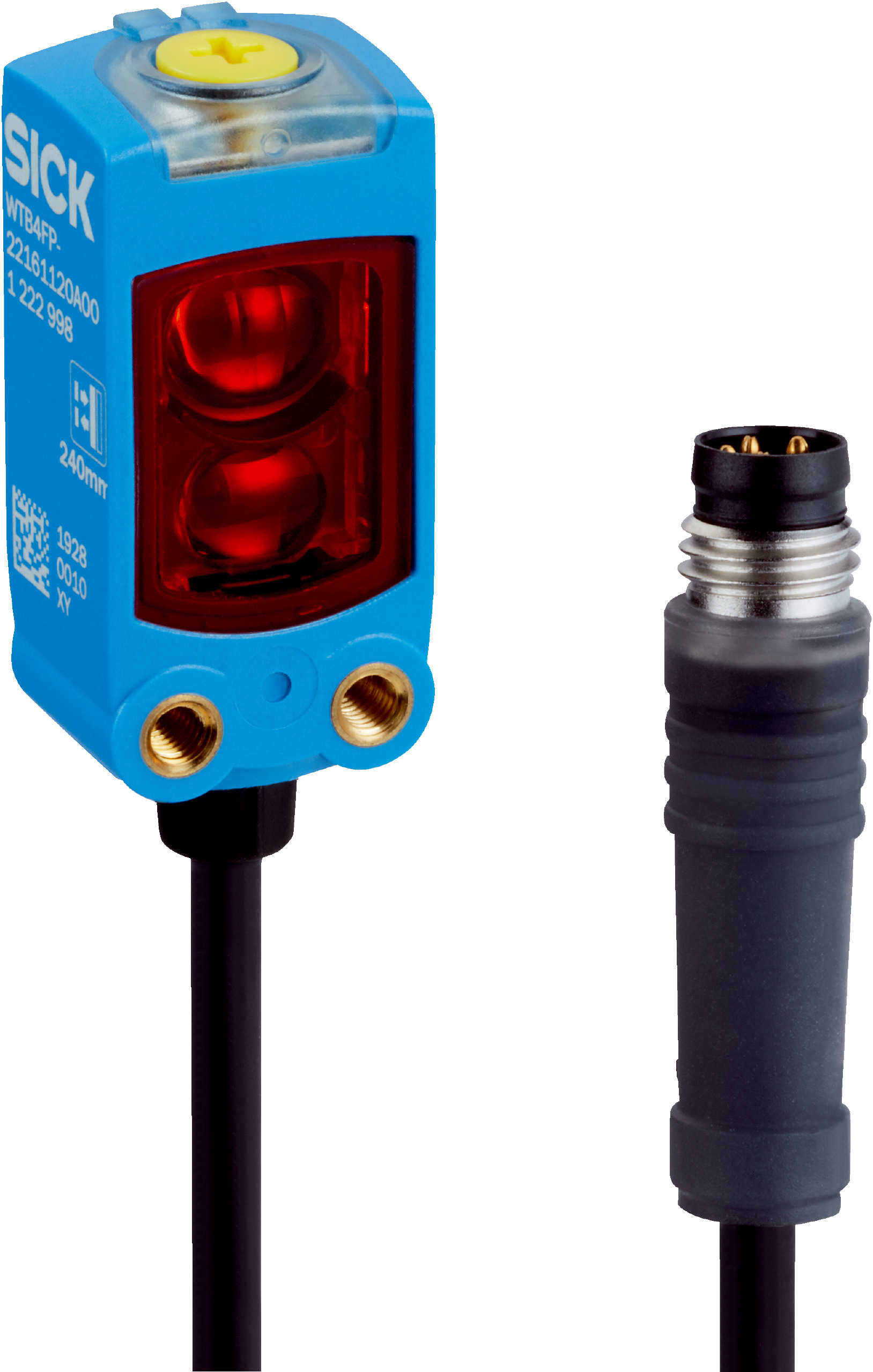

Photoelectric Proximity Sensor | Background Suppression | LineSpot Technology | IP66/IP67 Rated | by SICK
The photoelectric proximity sensor WTB4FA-97A11120ZZZ features advanced background suppression with LineSpot technology, making it ideal for industrial automation and object detection. With a sensing range adjustable from 7 mm to 150 mm and a robust IP66/IP67 rated housing, this sensor ensures reliable performance in challenging environments. Perfect for manufacturing process control and robotics, it offers a fast response time of ≤ 500 µs and a high switching frequency of 1000 Hz.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 25 mA without load at 24 V
- Output type: 1 PNP digital output, light switching mode
- Output current max: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- LED wavelength: 635 nm
- Housing material: Plastic VISTAL®
- Cable: PVC, 3-pin M8 connector, 300 mm length
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1000 Hz, amplitude 1 mm
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression using LineSpot technology
- Sensing range adjustable from 7 mm to 150 mm with recommended range 30 mm to 80 mm
- Visible red light PinPoint LED with line-shaped light spot (1.4 mm x 19 mm at 50 mm)
- BluePilot Teach-Turn adjustment for easy sensing range setting
- LED indicators for sensing range, power, and object detection status
- High switching frequency of 1000 Hz and fast response time ≤ 500 µs
- Robust plastic VISTAL® housing with IP66/IP67 protection rating
- Wide ambient operating temperature range from -40 °C to +60 °C
- Resistance to cleaning agents certified by ECOLAB
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Robotics and safety monitoring
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 25 mA)
- Durable design minimizes environmental impact through extended product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB4FA-97A11120ZZZ photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
