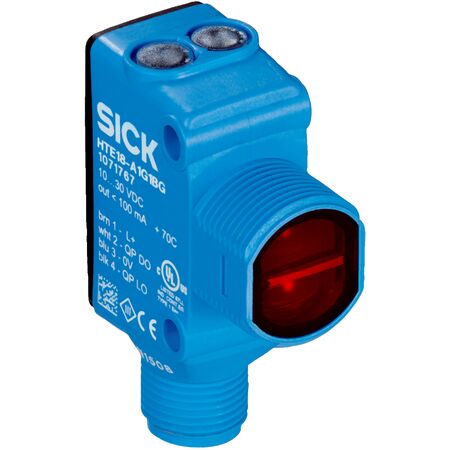

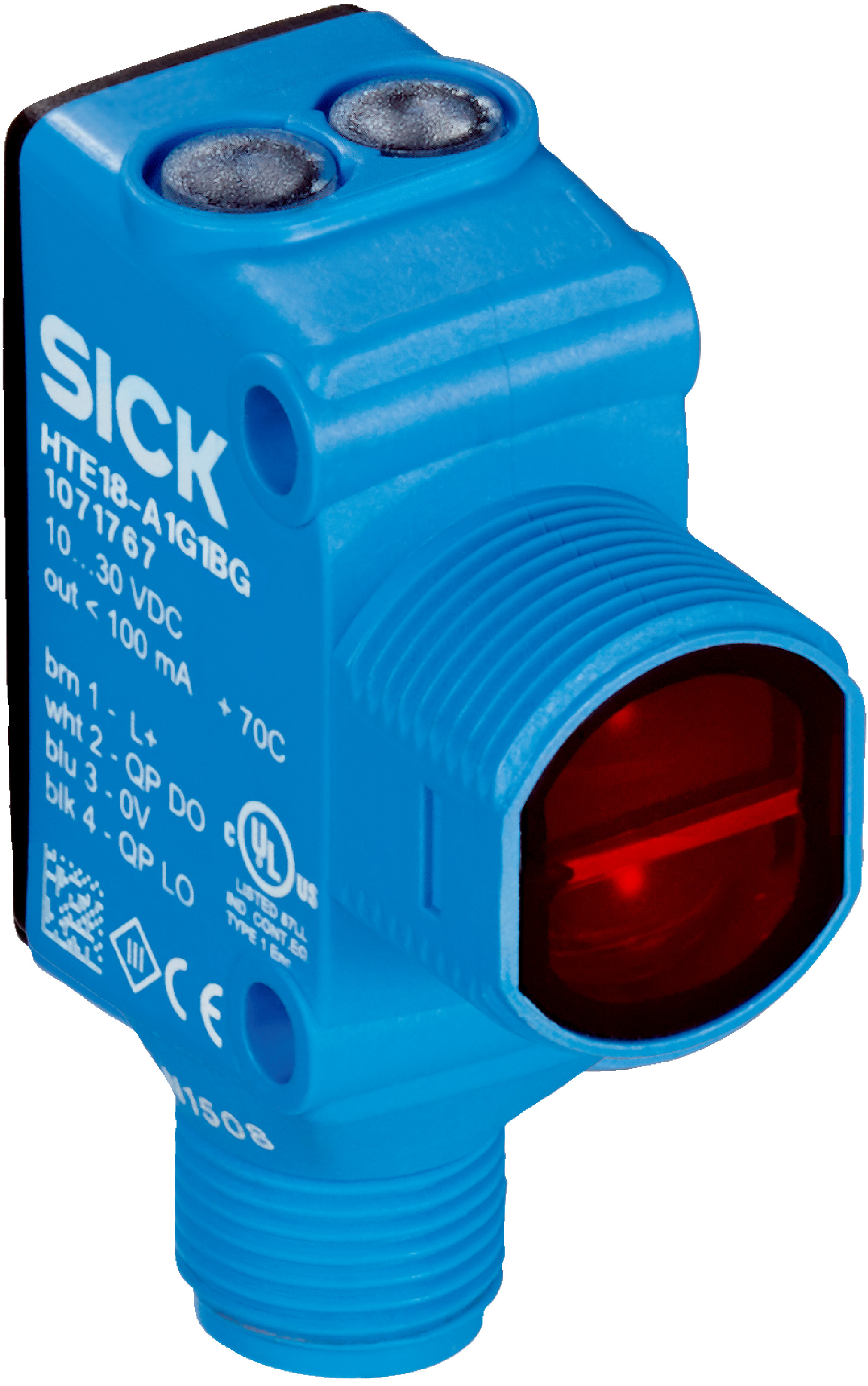

Photoelectric Proximity Sensor | Background Suppression | M18 Threaded Housing | IP67 & IP69K Rated | by SICK
The Photoelectric Proximity Sensor HTB18-B4A2AAD06 features background suppression and a hybrid housing design with a visible red PinPoint LED light source. With a sensing range preset to 150 mm and a maximum range of 300 mm, this sensor is perfect for industrial automation, manufacturing process control, and safety monitoring. Its robust IP67 and IP69K rated housing ensures durability in harsh environments, making it an ideal choice for material handling and packaging systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Dimensions (H x L x W): 48.5mm x 31.8mm x 16.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Hybrid housing design with visible red PinPoint LED light source
- Sensing range preset to 150 mm, max range up to 300 mm
- M18 threaded housing for head/side mounting
- High switching frequency of 1000 Hz and fast response time ≤ 0.5 ms
- Dual switching outputs: PNP and NPN light switching
- Robust plastic VISTAL® housing with IP67 and IP69K protection ratings
- Wide operating temperature range from -40 °C to +65 °C
- EMC compliant with EN 60947-5-2 for industrial radio safety
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable construction reduces waste and replacement frequency
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK HTB18-B4A2AAD06 Photoelectric Proximity Sensor is available for immediate purchase. Ideal for industrial automation and safety applications requiring reliable object detection.
