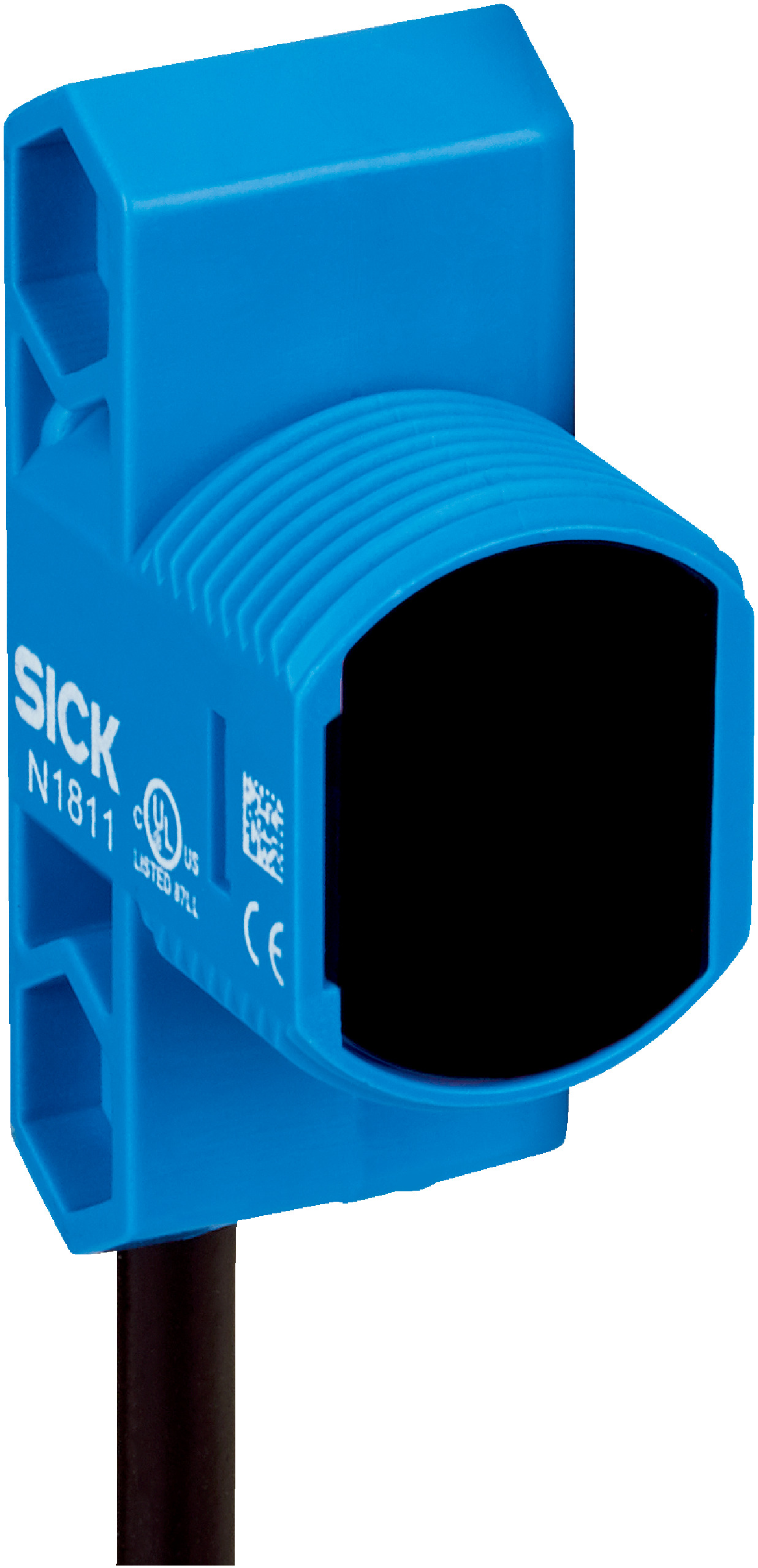

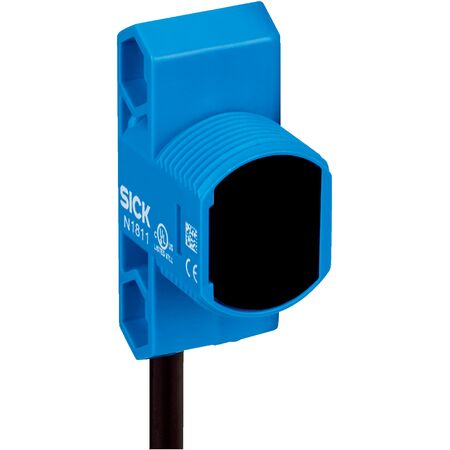

Photoelectric Proximity Sensor | Background Suppression | M18 Hybrid Design | IP67 Rated | by SICK
The Photoelectric Proximity Sensor ZTB18-2AB1G1D04 features advanced background suppression technology, making it ideal for industrial automation and manufacturing applications. With a sensing range of 5 mm to 100 mm and a high switching frequency of 500 kHz, this sensor ensures precise object detection. Its durable IP67 rated housing and infrared PinPoint LED light source enhance reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Housing design: Hybrid with M18 thread diameter
- Sensing range: 5 mm to 100 mm
- Light source: Infrared PinPoint LED at 850 nm wavelength
- Switching output: Push-pull PNP/NPN with light and dark switching
- Output current max: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Connection: Cable open end, 4-wire, 2 m, PVC material
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: –40 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Dimensions (H x L x W): 34.8mm x 21.9mm x 13.6mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Hybrid housing design with M18 thread diameter
- Sensing range from 5 mm to 100 mm
- Infrared light source with PinPoint LED
- Light spot size Ø 8 mm at 100 mm distance
- Push-pull PNP/NPN switching output with light and dark switching modes
- High switching frequency of 500 kHz and response time ≤ 1 ms
- Cable open end, 4-wire, 2 m with plastic PVC material
- Protection class III and enclosure rating IP67
- Operating temperature range from –40 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper mounting and wiring according to safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Robotics and safety systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ZTB18-2AB1G1D04 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
