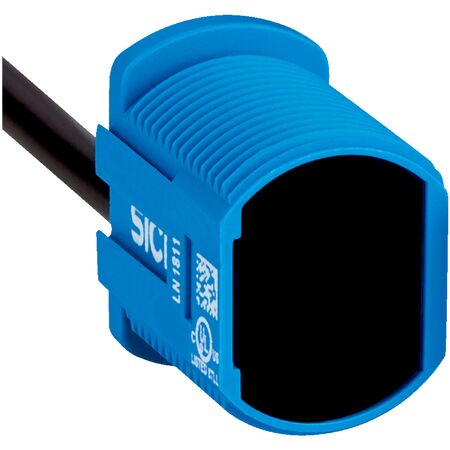

Photoelectric Proximity Sensor | Background Suppression | M18 Thread | IP67 Rated | by SICK
The Photoelectric Proximity Sensor ZTB18-9AB1G1D02 is designed for industrial automation, featuring background suppression and a sensing range of 5 mm to 50 mm. With a high switching frequency of 500 kHz and an IP67 rated enclosure, it ensures reliable performance in manufacturing and robotics applications, making it ideal for object detection and process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Output current max: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Connection: 4-wire cable, 2 m length, PVC insulation
- Protection class: III
- Housing material: ABS plastic
- Optics material: PMMA plastic
- Ripple: < 10%
- Circuit protection: A, B, D
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- UL File No.: E189383
- Dimensions (H x L x W): 21mm x 23mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Hybrid housing design with M18 thread diameter
- Sensing range from 5 mm to 50 mm
- Infrared light source with PinPoint LED
- Light spot size Ø 8 mm at 100 mm distance
- Operating wavelength of 850 nm
- Push-pull switching output supporting PNP/NPN
- Light and dark switching modes
- High switching frequency of 500 kHz
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -40 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Robotics and safety systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient infrared LED technology
- Durable IP67 housing reduces waste by extending product lifespan
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZTB18-9AB1G1D02 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
