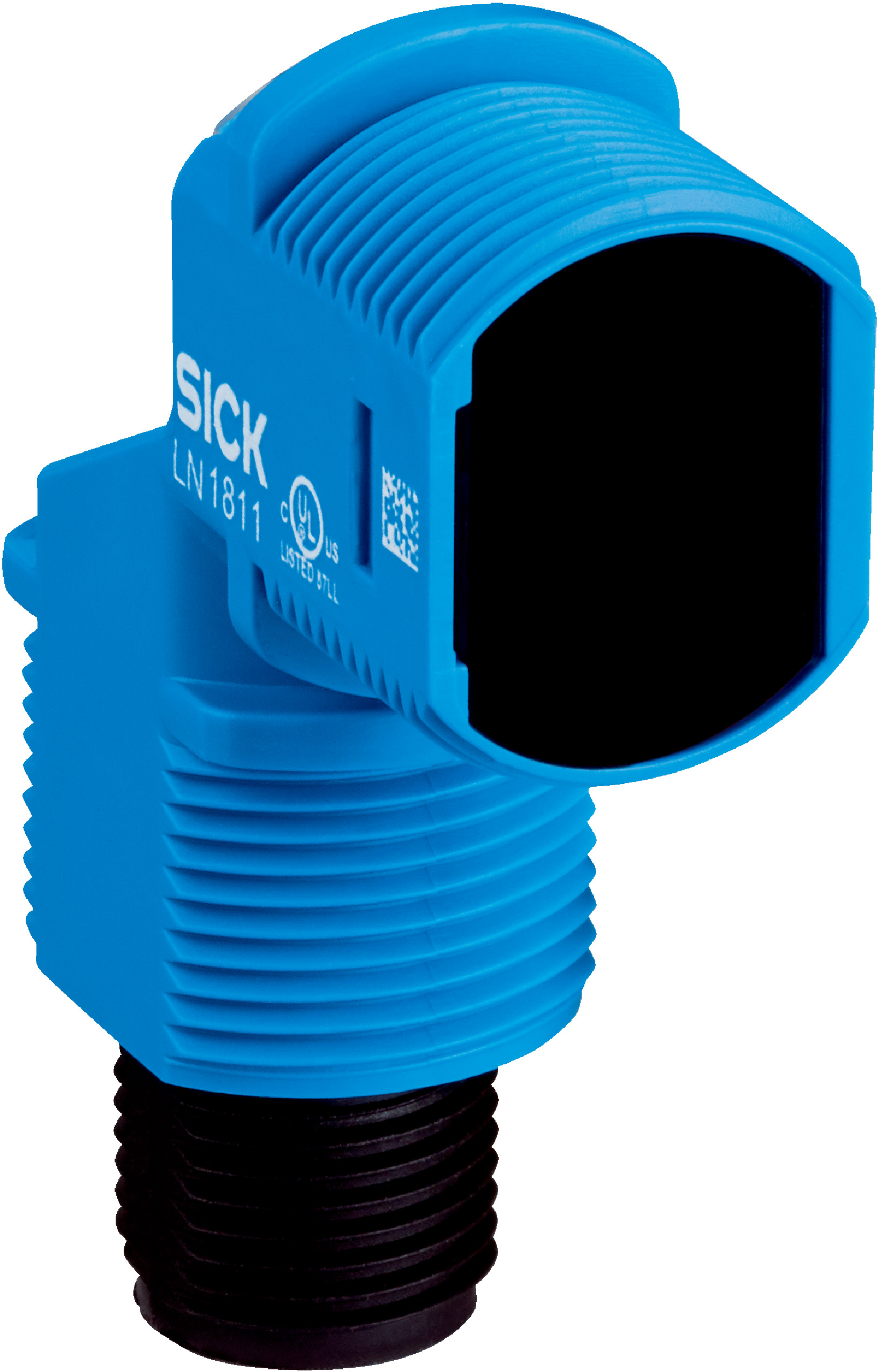

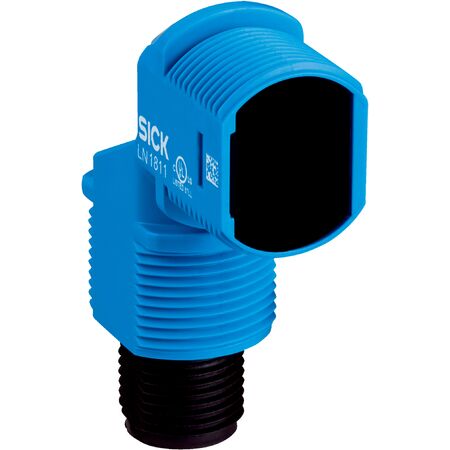

Photoelectric Proximity Sensor | Background Suppression | M18 Thread | IP67 Rated | by SICK
The Photoelectric Proximity Sensor ZTB18-4PR4A1D06 features advanced background suppression technology, making it ideal for industrial automation and manufacturing process control. With a sensing range of 5 mm to 150 mm and a high switching frequency of 500 kHz, this sensor ensures reliable object detection. Its durable IP67 rated housing provides excellent dust and water protection, making it suitable for various applications in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: PNP, Light switching and Health output
- Output current max: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Connection type: Male connector M12, 4-pin
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Wave length: 850 nm
- Dimensions (H x L x W): 44mm x 33mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Hybrid housing design with M18 thread diameter
- Sensing range from 5 mm to 150 mm
- Infrared light source with PinPoint LED
- Light spot size Ø 8 mm at 100 mm distance
- High switching frequency of 500 kHz
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -40 °C to +55 °C
- Dual PNP switching outputs for light switching and health output
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Material handling systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient infrared LED technology
- Durable IP67 housing reduces waste by extending product life
- Compliant with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ZTB18-4PR4A1D06 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
