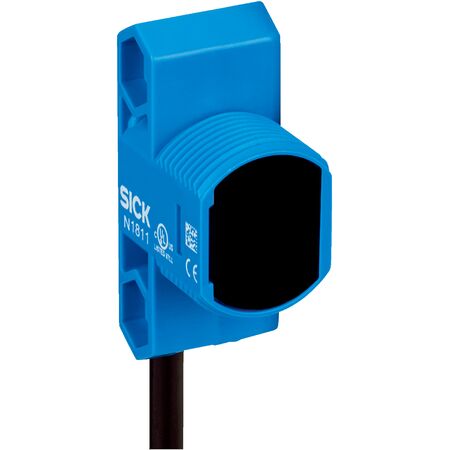

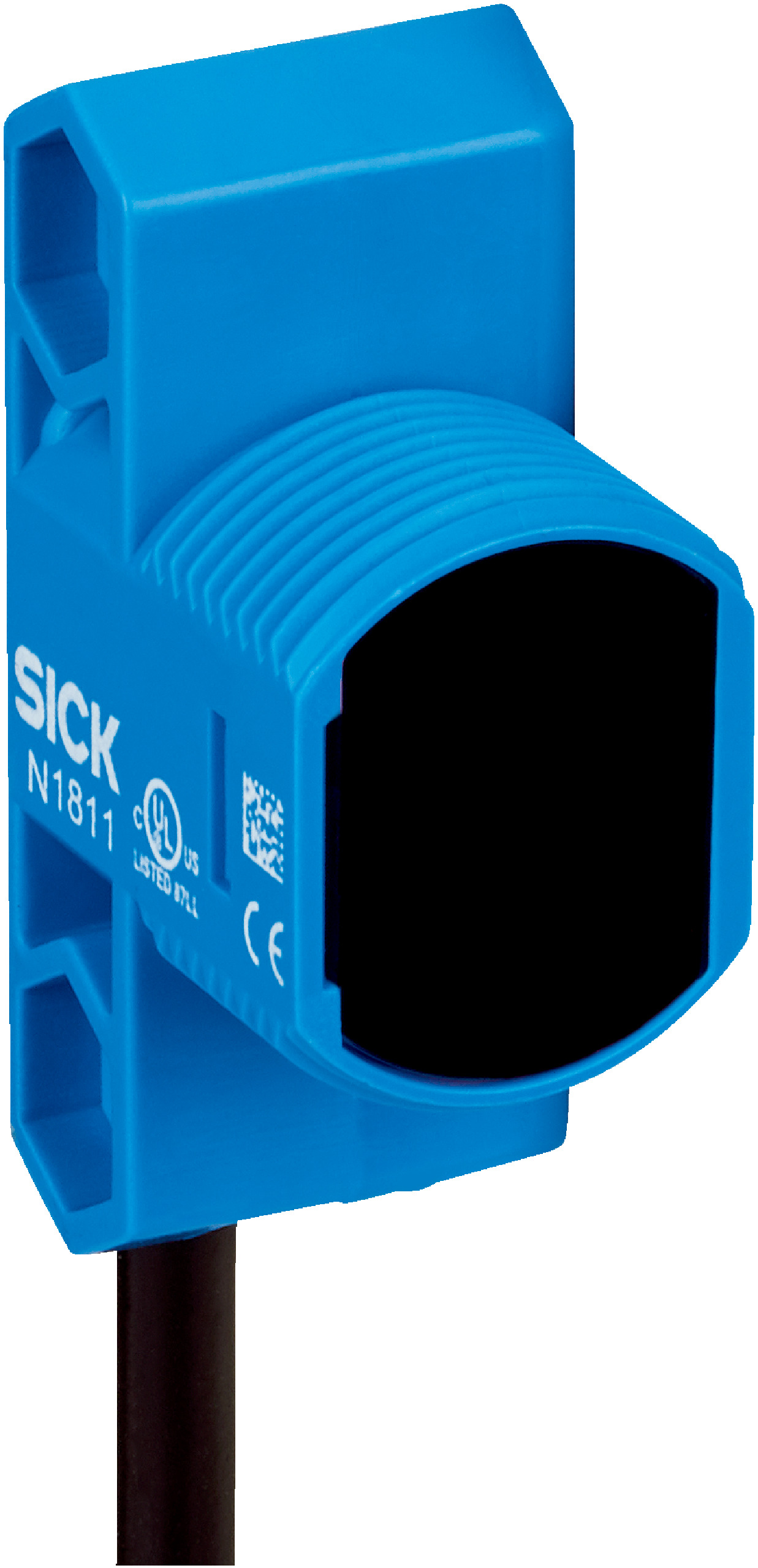

Photoelectric Proximity Sensor | Background Suppression | M18 Hybrid Design | IP67 Rated | by SICK
The Photoelectric Proximity Sensor ZTB18-2AB4B1D02 features advanced background suppression technology, making it ideal for industrial automation and manufacturing process control. With a sensing range of 5 mm to 50 mm and an IP67 rated enclosure, this sensor ensures reliable performance in challenging environments. Designed for safety and presence detection, it operates efficiently across a wide temperature range from -40 °C to +55 °C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Housing design: Hybrid with M18 thread diameter
- Sensing range: 5 mm to 50 mm
- Light source: Infrared PinPoint LED, wavelength 850 nm
- Switching output: Push-pull PNP/NPN with light and dark switching
- Output current max: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Connection type: Cable with M12 male connector, 4-pin, 150 mm
- Cable material: Plastic, PVC
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Dimensions (H x L x W): 35mm x 22mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Hybrid housing design with M18 thread diameter
- Sensing range from 5 mm to 50 mm
- Infrared PinPoint LED light source with 850 nm wavelength
- Push-pull PNP/NPN switching outputs with light and dark switching modes
- High switching frequency of 500 kHz and response time ≤ 1 ms
- Cable with M12 male connector, 4-pin, 150 mm length
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -40 °C to +55 °C
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and presence detection in machinery
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable IP67 rated housing reduces waste by extending product life
- RoHS compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ZTB18-2AB4B1D02 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
