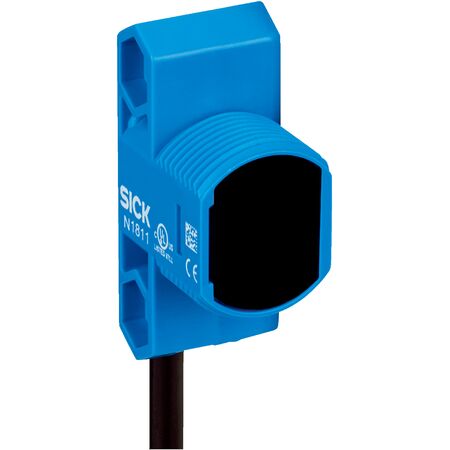

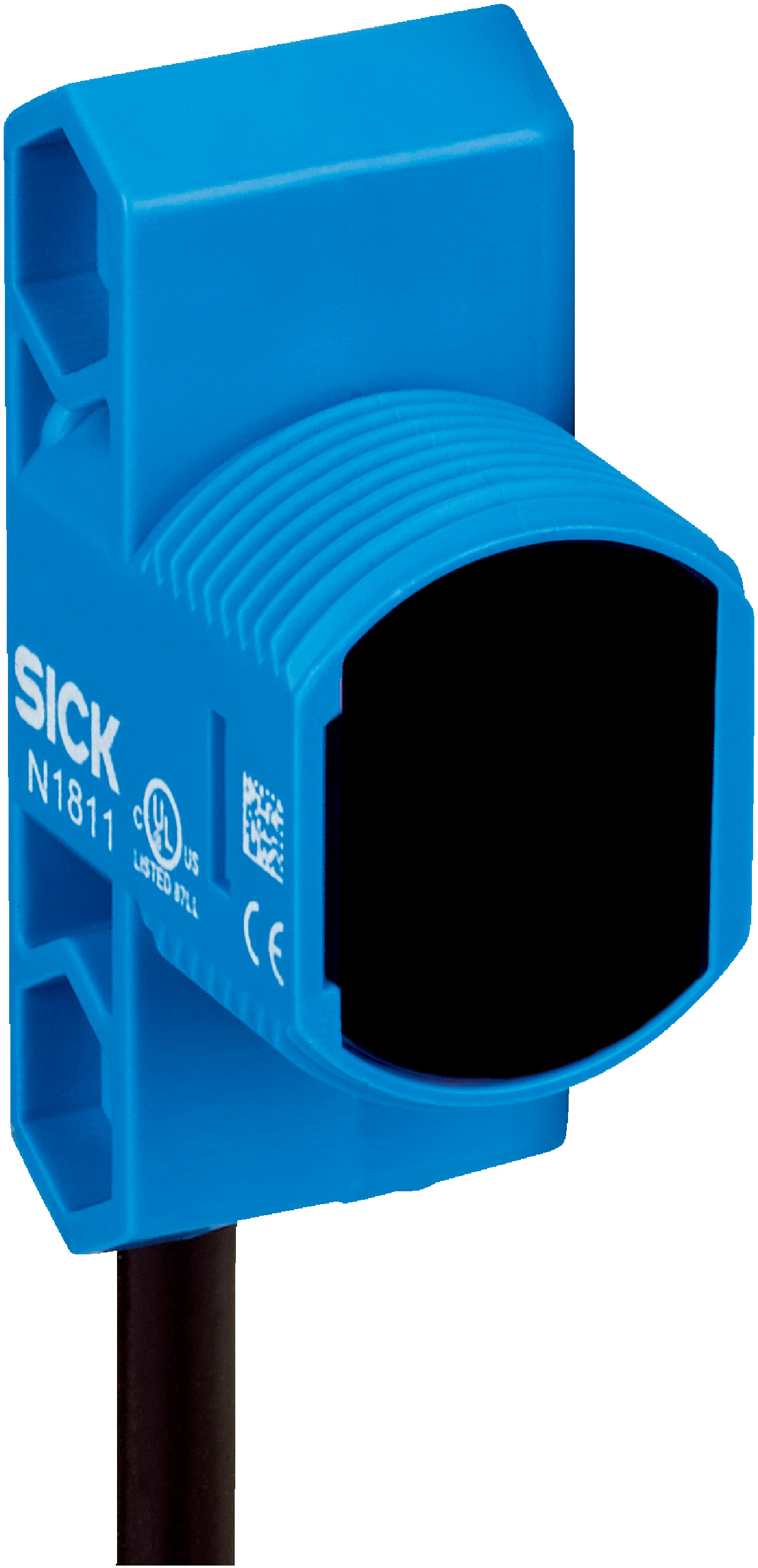

Photoelectric Proximity Sensor | Background Suppression | M18 Thread | IP67 Rated | by SICK
The Photoelectric Proximity Sensor ZTB18-2AB5B1D04 features background suppression technology and a robust M18 housing design, making it ideal for industrial automation and manufacturing process control. With a high switching frequency of 500 kHz and a response time of ≤ 1 ms, this sensor ensures precise object detection in various applications, including robotics and packaging machinery.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Output current max: 100 mA
- Switching output: Push-pull PNP/NPN
- Switching modes: Light switching and dark switching
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Connection: Cable with male M8, 4-pin connector, 150 mm
- Cable material: Plastic, PVC
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 35mm x 22mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Hybrid housing design with M18 thread diameter
- Sensing range from 5 mm to 100 mm
- Infrared PinPoint LED light source with 850 nm wavelength
- Push-pull PNP/NPN switching output with light and dark switching modes
- High switching frequency of 500 kHz and response time ≤ 1 ms
- Cable with male M8 4-pin connector, 150 mm length
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -40 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling systems
- Packaging machinery
- Robotics and safety systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient infrared LED technology
- Durable IP67 housing reduces waste by extending product lifespan
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZTB18-2AB5B1D04 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
