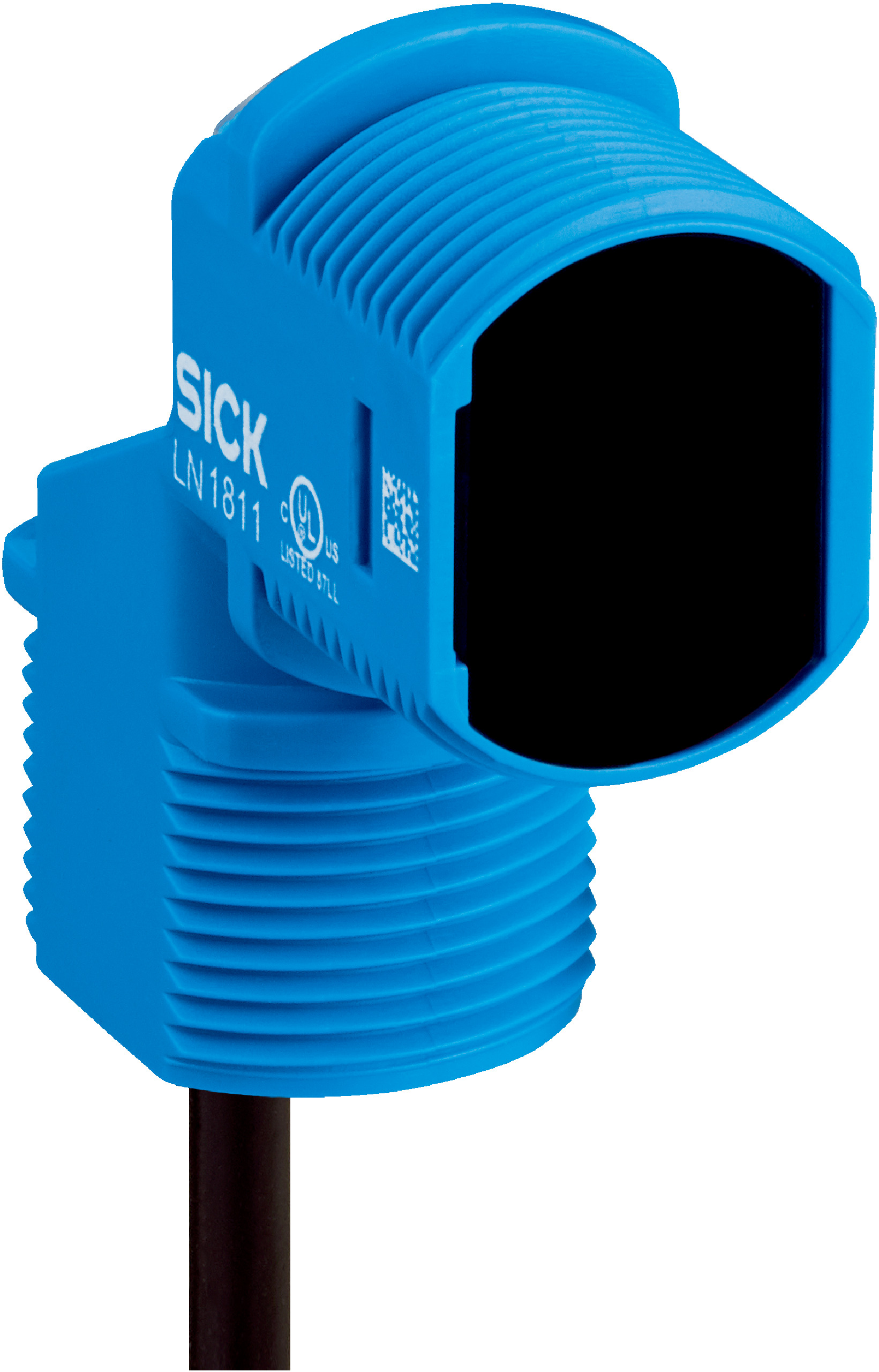

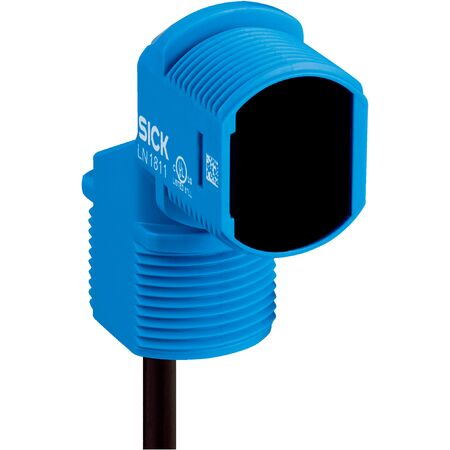

Photoelectric Proximity Sensor | Background Suppression | M18 Thread Design | IP67 Rated | by SICK
The Photoelectric Proximity Sensor ZTB18-4AB1G1D04 is designed for precise object detection in industrial automation. With a sensing range of 5 mm to 100 mm and a high switching frequency of 500 kHz, it ensures reliable performance in manufacturing and robotics applications. Its durable IP67 rated housing protects against dust and water, making it ideal for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Output current max: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Connection: Cable open end, 4-wire, 2 m, PVC
- Protection class: III
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 43mm x 33mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Hybrid housing design with M18 thread diameter
- Sensing range from 5 mm to 100 mm
- Infrared light source with PinPoint LED
- Light spot size Ø 8 mm at 100 mm distance
- Operating wavelength of 850 nm
- Push-pull switching output with PNP/NPN options
- Light and dark switching modes
- High switching frequency of 500 kHz
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -40 °C to +55 °C
- Cable open end, 4-wire, 2 m length with PVC insulation
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with electrical safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Robotics and safety systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient infrared LED technology
- Durable IP67 housing reduces waste by extending product lifespan
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ZTB18-4AB1G1D04 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
