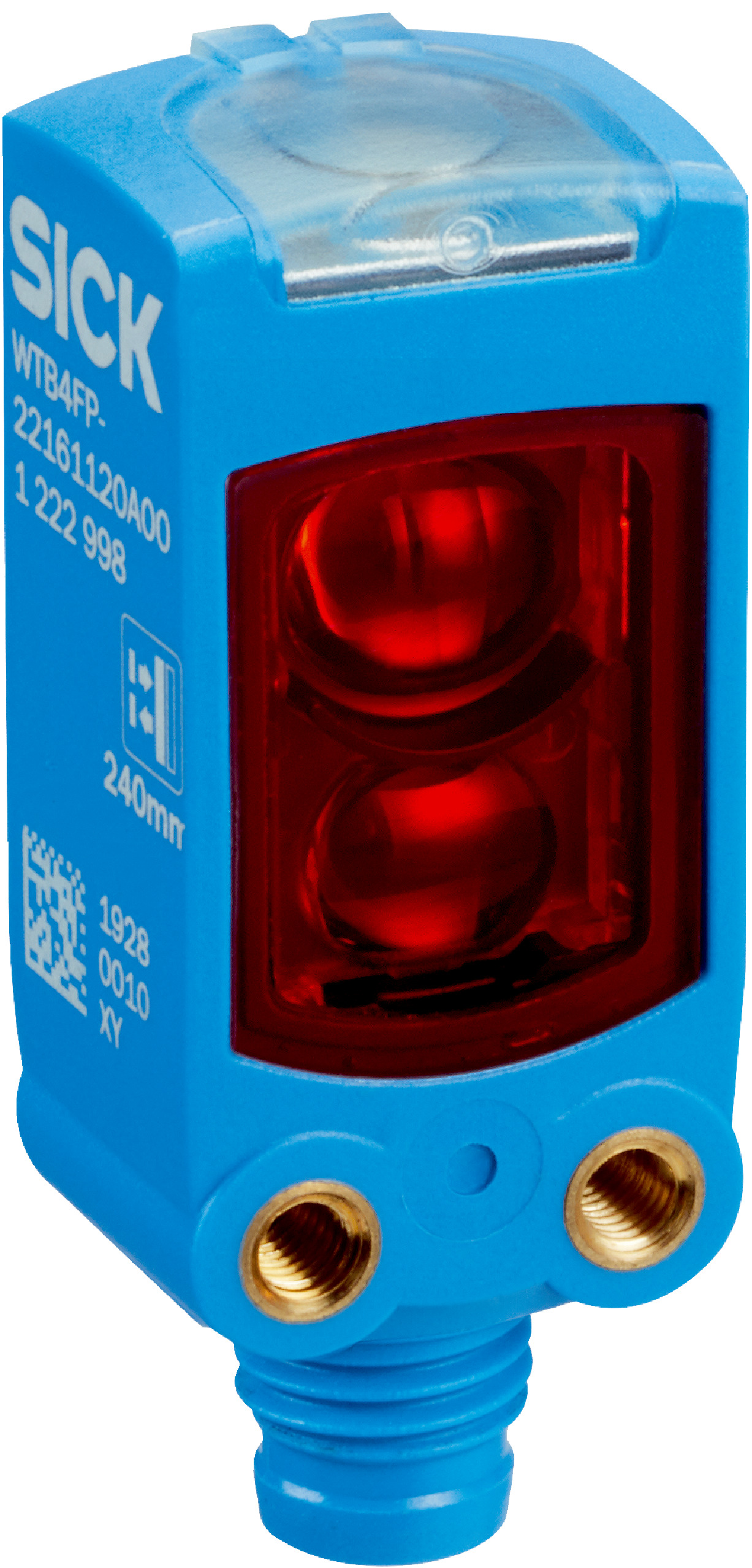

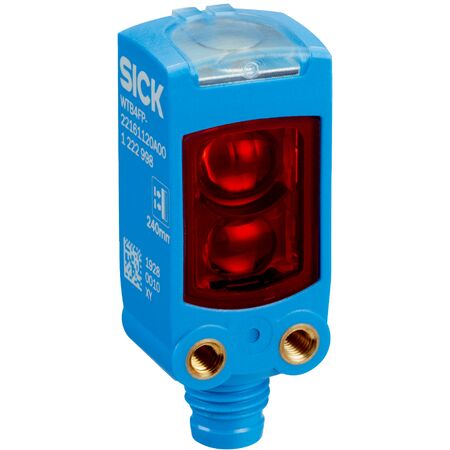

Photoelectric Proximity Sensor | Background Suppression & MultiPulse | IP66/IP67 Rated | by SICK
The Photoelectric Proximity Sensor WTB4FP-213112A0ZZZ features advanced background suppression and MultiPulse technology, making it ideal for precise object detection in industrial automation. With a sensing range of 3 mm to 25 mm and a robust IP66/IP67 rated housing, this sensor ensures reliable performance in manufacturing and packaging applications, while its long LED service life of 100,000 hours minimizes maintenance needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor | Background Suppression & MultiPulse | IP66/IP67 Rated | by SICK
Brand: SICK
SKU: 1125737
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, MultiPulse photoelectric sensor, Industrial object sensor
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and MultiPulse
- Sensing range: 3 mm to 25 mm
- Reference object: 90% remission factor (standard white according to DIN 5033)
- Minimum distance to background: 1 mm at 25 mm sensing range
- Light source: PinPoint LED, visible red light, 635 nm wavelength
- Light spot size: Ø 4.2 mm at 130 mm distance
- LED risk group: Free group according to EN 62471 and IEC 62471
- Average LED service life: 100,000 hours at 25°C
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 25 mA without load at 24 V
- Output type: Push-pull PNP/NPN, max output current 100 mA
- Response time: ≤ 0.1 s
- Switching frequency: 10 Hz
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1000 Hz, amplitude 1 mm
- EMC compliance: EN 60947-5-2
- Material: Plastic VISTAL® housing, PMMA front screen
- Dimensions (H x L x W): 40mm x 12mm x 16mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and MultiPulse technology
- Sensing range from 3 mm to 25 mm with high precision
- Visible red light PinPoint LED with 635 nm wavelength
- Smallest detectable object size of 0.2 mm at 130 mm distance
- LED indicators for power and object detection status
- Robust plastic VISTAL® housing with IP66 and IP67 protection ratings
- High shock and vibration resistance
- Reverse polarity, overcurrent, and short-circuit protected outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Robotics and safety monitoring
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption
- Robust design minimizes environmental impact through durability
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB4FP-213112A0ZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
