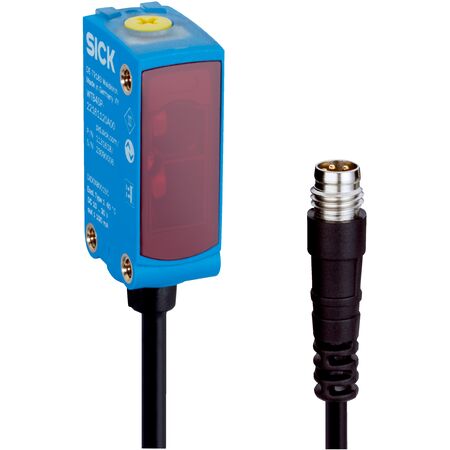

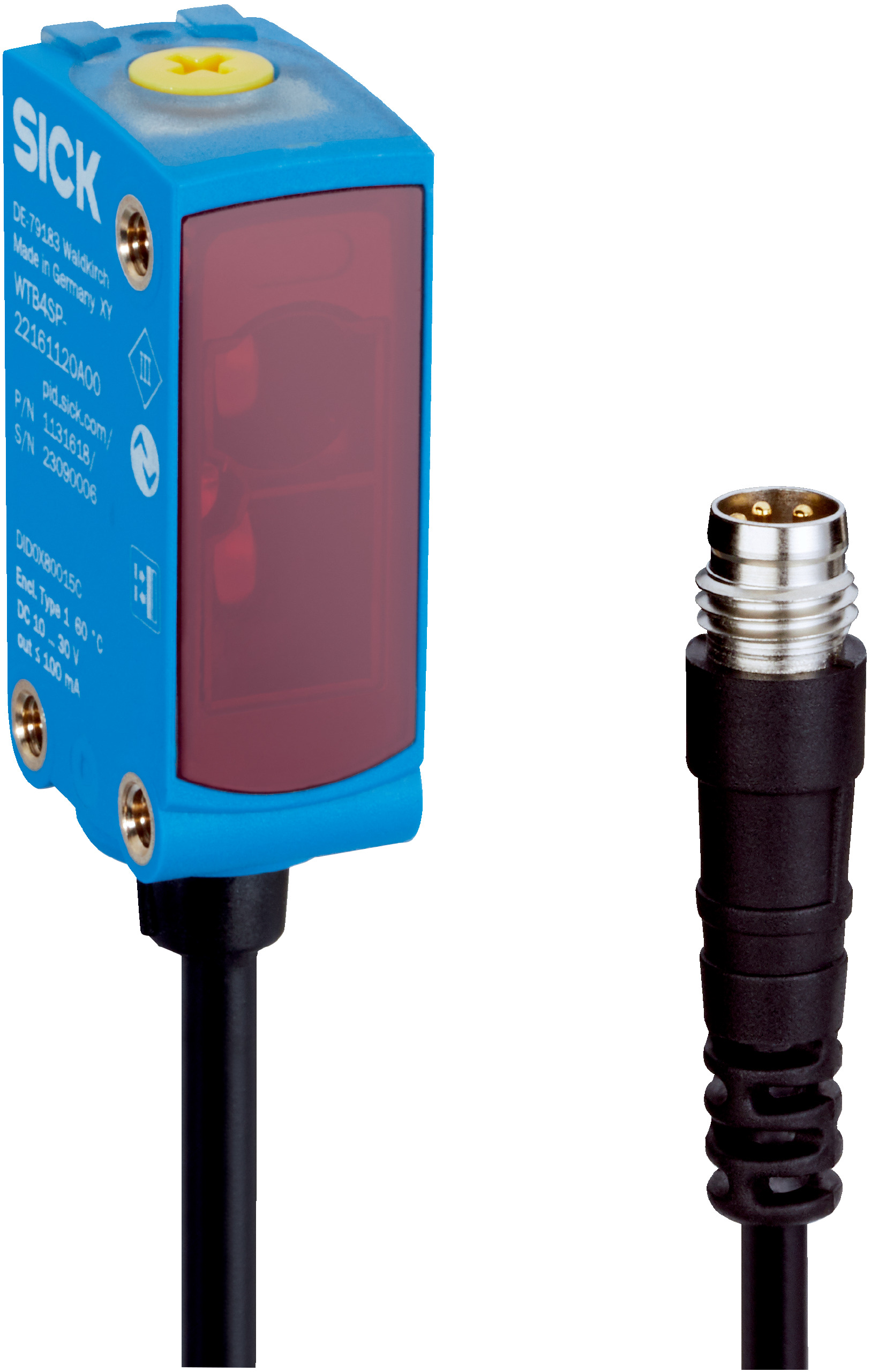

Photoelectric Proximity Sensor | Background Suppression & NarrowBeam Technology | IP66/IP67 Rated | by SICK
The Photoelectric Proximity Sensor WTB4SP-31311220ZZZ features advanced background suppression and NarrowBeam technology, making it ideal for industrial automation and precise object detection. With an adjustable sensing range from 10 mm to 130 mm and a robust IP66/IP67 rated housing, this sensor ensures reliable performance in challenging environments, while its PinPoint LED provides clear visibility for easy operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 4 mm to 130 mm, adjustable switching threshold 10 mm to 130 mm
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Light spot size: 1.8 mm at 70 mm distance
- Response time: ≤ 500 µs, Repeatability: 150 µs
- Switching frequency: 1,000 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA without load at 24 V
- Output type: Push-pull PNP/NPN, max output current ≤ 100 mA
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Housing material: Plastic VISTAL®
- Connection: Cable with M8 3-pin connector, 110 mm length
- EMC compliant to EN 60947-5-2
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1,000 Hz, amplitude 1 mm
- Dimensions (H x L x W): 42mm x 19mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and NarrowBeam technology
- Adjustable sensing range from 10 mm to 130 mm for background suppression
- PinPoint LED visible red light with a wavelength of 635 nm
- High repeatability with 150 µs response time and switching frequency up to 1,000 Hz
- Robust plastic VISTAL® housing with IP66 and IP67 protection ratings
- BluePilot for easy sensing range adjustment
- LED indicators for sensing range, power, and object detection status
- Operating temperature range from -40 °C to +60 °C
- Resistance to cleaning agents (ECOLAB) and electromagnetic compatibility compliant
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment.
Applications
- Industrial automation for object detection
- Detection of uneven, shiny, poorly remitting, and tilted objects
- Use in environments requiring precise background suppression sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient operation with low current consumption (≤ 20 mA)
- Durable design minimizes environmental impact through extended product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTB4SP-31311220ZZZ Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
