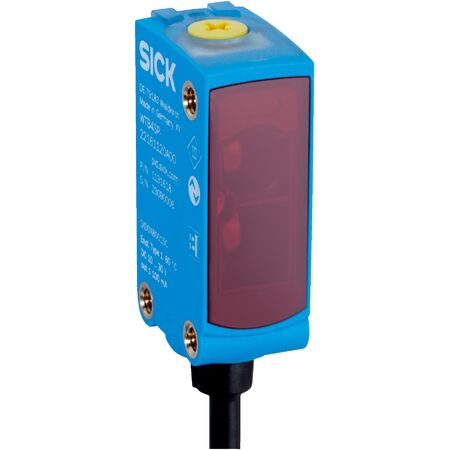

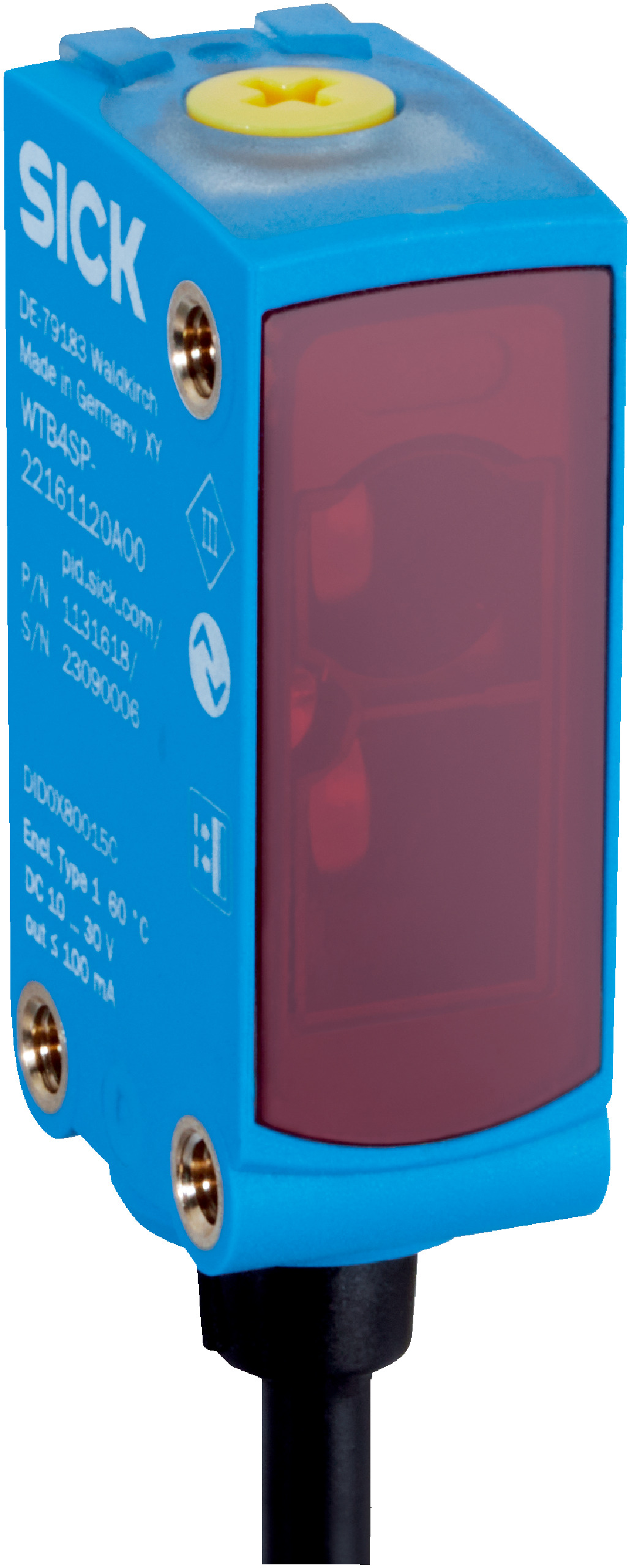

Photoelectric Proximity Sensor WTB4SP-1H162220A00 | Background Suppression | NarrowBeam Technology | IP66 & IP67 Rated | by SICK
The WTB4SP-1H162220A00 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With an adjustable sensing range from 10 mm to 130 mm and advanced NarrowBeam technology, it effectively detects uneven and shiny objects. Featuring a robust IP66 and IP67 rated housing, this sensor operates efficiently in harsh environments, ensuring reliability and durability for your automation needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensing range: 4 mm to 130 mm, adjustable switching threshold 10 mm to 130 mm
- Light source: PinPoint LED, visible red light, wavelength 635 nm
- Response time: ≤ 500 µs, switching frequency up to 1,000 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA without load
- Digital outputs: 2 push-pull (PNP/NPN), light/dark switching
- Protection class: III
- Enclosure rating: IP66 and IP67
- Operating temperature: -40 °C to +60 °C
- Cable: 4-wire, 2 m length, PVC
- Housing material: Plastic VISTAL®
- Front screen: Plastic PMMA
- EMC: EN 60947-5-2 compliant
- Shock resistance: 30 g, 11 ms
- Vibration resistance: 10 Hz to 1,000 Hz, amplitude 1 mm
- Dimensions (H x L x W): 42mm x 19mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and NarrowBeam technology
- Adjustable sensing range from 10 mm to 130 mm for background suppression
- PinPoint LED light source with visible red light and point-shaped light spot
- High precision with smallest detectable object size of 0.1 mm at 70 mm distance
- IO-Link V1.1 communication interface for sensor parameter configuration and Smart Task functions
- Dual push-pull digital outputs (PNP/NPN) with light/dark switching modes
- Robust plastic VISTAL® housing with IP66 and IP67 protection ratings
- Wide ambient operating temperature range from -40 °C to +60 °C
- High shock and vibration resistance
- BluePilot for easy sensing range adjustment
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and configuration, including IO-Link setup.
Applications
- Industrial automation for object detection
- Detection of uneven, shiny, poorly remitting, and tilted objects
- Use in environments requiring precise background suppression sensing
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient LED light source with long service life of 100,000 hours
- Durable design reduces waste and replacement frequency
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTB4SP-1H162220A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
