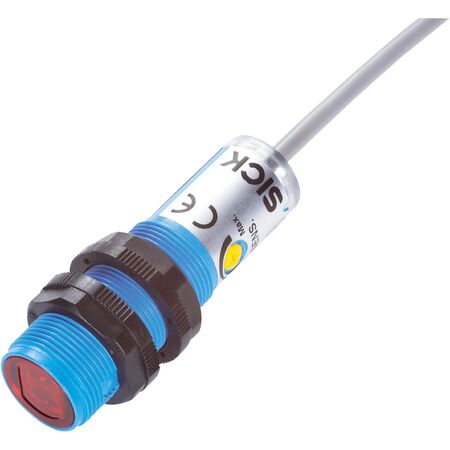

Photoelectric Proximity Sensor | Background Suppression | NPN Output | Fast Response Time | IP67 Rated | by SICK
The Photoelectric Proximity Sensor VTB180-2N41117 is designed for industrial automation, featuring background suppression and a fast response time of ≤ 1 ms. With an NPN output and a sensing range of 30 mm to 200 mm, it's perfect for object detection in manufacturing and material handling applications. Built to withstand harsh environments, this sensor has an IP67 rating, ensuring reliable performance in various conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 35 mA
- Switching output: NPN transistor
- Switching mode: Light/dark selectable via control cable
- Signal voltage NPN HIGH/LOW: Approx. VS / < 1.8 V
- Output current max: ≤ 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Cable diameter: Ø 3.8 mm
- Protection class: III
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Ambient operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- MTTFD: 477.9 years
- Dimensions (H x L x W): 18mm x 60mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Visible red light LED with wavelength of 632 nm
- Sensing range from 30 mm to 200 mm, max up to 350 mm
- Axial optical axis with approx. 2.8° focus and angle of dispersion
- Potentiometer adjustment with 4 turns for sensing range
- NPN switching output with selectable light/dark switching mode
- Fast response time ≤ 1 ms and switching frequency of 500 Hz
- Robust plastic housing (PBT/PC) with IP67 enclosure rating
- Operating temperature range from -25 °C to +55 °C
- Includes fastening nuts for easy installation
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK VTB180-2N41117 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
