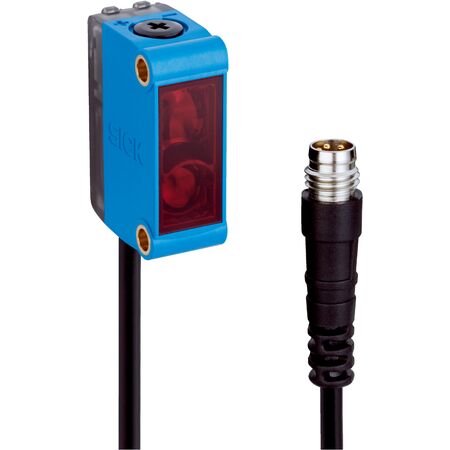

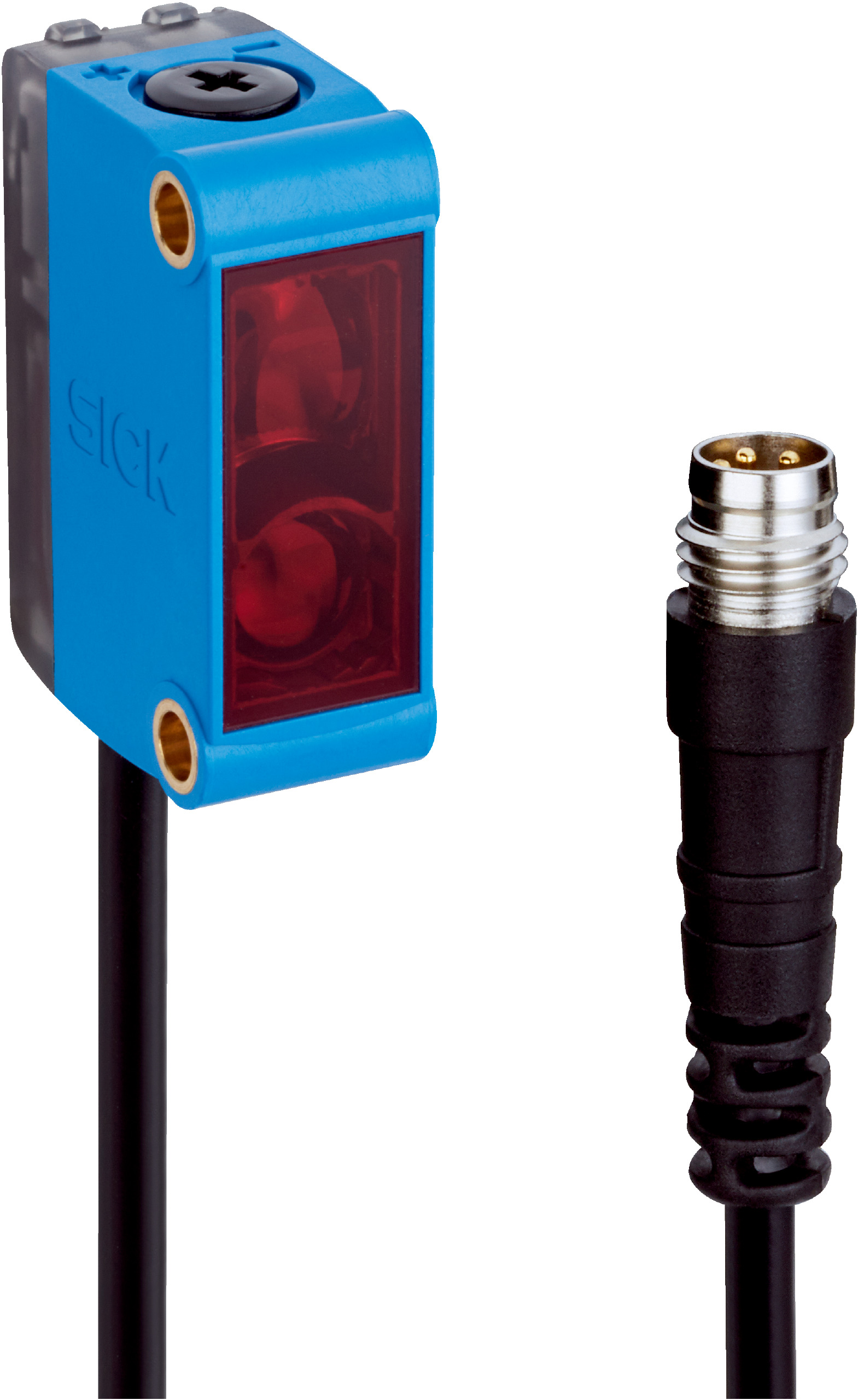

Photoelectric Proximity Sensor GTB6-N6211 | Background Suppression | NPN Output | IP67 Rated | by SICK
The GTB6-N6211 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. With a sensing range of 35 mm to 250 mm and a background suppression feature, it ensures reliable performance in manufacturing and packaging applications. Its compact IP67 rated housing and visible red light make it ideal for various environments, providing durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Proximity Sensor GTB6-N6211 | Background Suppression | NPN Output | IP67 Rated | by SICK
Brand: SICK
SKU: 1058774
Alternatively Known As: Photoelectric proximity sensor, Background suppression sensor, NPN photoelectric sensor, Visible red light sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Response time: less than 625 µs
- Output current max: ≤ 100 mA
- Switching frequency: 1,000 Hz
- Signal voltage NPN HIGH/LOW: Approx. VS / ≤ 3 V
- Mechanical adjustment: spindle with 5 turns
- Cable connection: 4-pin M8 male connector, 300 mm length
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Sensing range from 35 mm to 140 mm, max up to 250 mm
- PinPoint LED visible red light with 650 nm wavelength
- Mechanical spindle adjustment with 5 turns
- Light/dark switching mode selectable via selector
- NPN digital output with switching frequency up to 1,000 Hz
- Protection class III and IP67 rated housing
- Compact plastic ABS/PC housing with PMMA front screen
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Packaging and material handling systems
- Safety and monitoring in machinery
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 rated housing ensures long service life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GTB6-N6211 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
