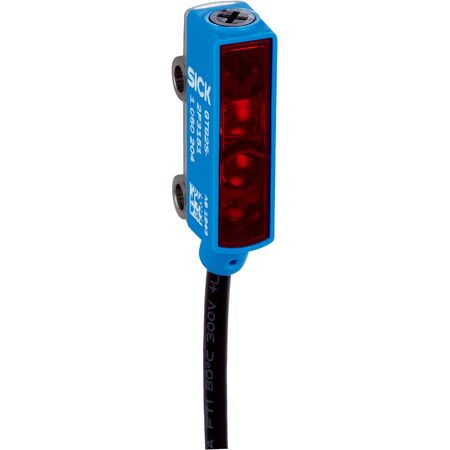

Photoelectric Proximity Sensor GTB2S-N5451 | Background Suppression | NPN Output | IP67 Rated | by SICK
The Photoelectric Proximity Sensor GTB2S-N5451 is designed for precise object detection in industrial automation. With a sensing range of 2 mm to 120 mm and a high switching frequency of 800 Hz, it ensures rapid response times under 0.6 ms. Ideal for manufacturing process control and safety detection, this sensor features a durable IP67 enclosure for protection against dust and water, making it perfect for challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN, max output current ≤ 50 mA
- Response time: < 0.6 ms
- Switching frequency: 800 Hz
- Connection: Cable with M8 3-pin connector, 200 mm length
- Cable material: PVC, diameter 3 mm
- Housing material: ABS plastic
- Optics material: PMMA plastic
- Enclosure rating: IP67
- Operating temperature: -25°C to +50°C
- Storage temperature: -40°C to +75°C
- Light source: PinPoint LED, wavelength 640 nm
- Light spot size: Ø 3.5 mm at 50 mm distance
- Adjustment: Potentiometer with 3 turns
- Dimensions (H x L x W): 27.5mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red light emission
- Sensing range from 2 mm to 120 mm
- PinPoint LED light source with 640 nm wavelength
- Potentiometer adjustment with 3 turns
- NPN switching output with light switching mode
- High switching frequency of 800 Hz and response time under 0.6 ms
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -25°C to +50°C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Robotics and material handling
- Safety and presence detection in machinery
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing minimizes environmental damage and extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK GTB2S-N5451 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
