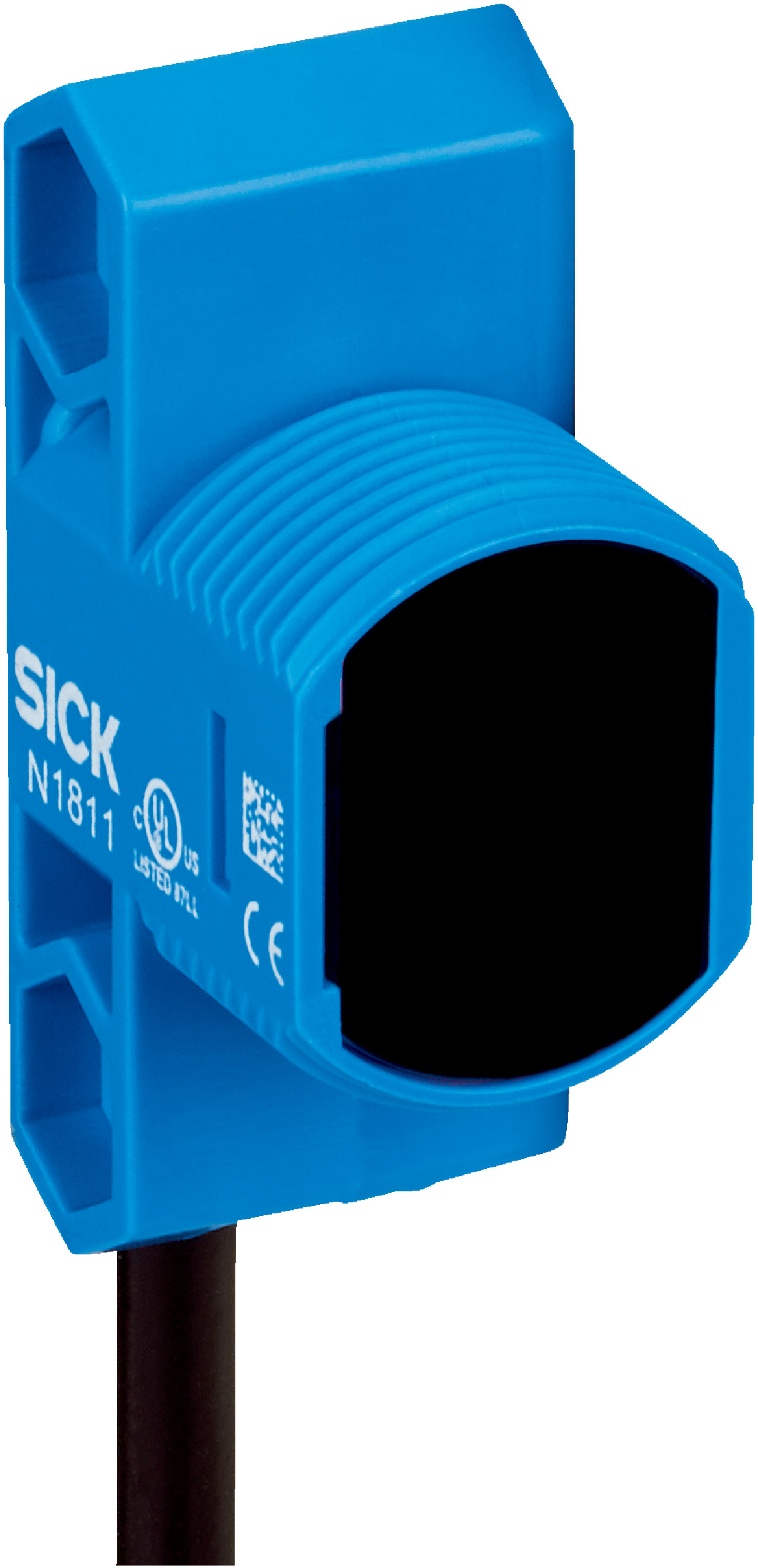

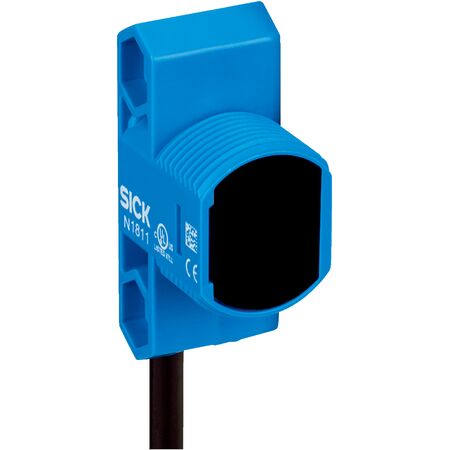

Photoelectric Proximity Sensor | Background Suppression | NPN Output | IP67 Rated | by SICK
The Photoelectric Proximity Sensor ZTB18-2GZ1G1D02 features background suppression technology and a sensing range of 5 mm to 50 mm, making it ideal for industrial automation and manufacturing process control. With a fast response time of ≤ 1 ms and an IP67 enclosure rating, this sensor is built for reliability in challenging environments, ensuring efficient object detection and safety in robotics and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Housing design: Hybrid, blue color
- Sensing range: 5 mm to 50 mm
- Light source: PinPoint LED, infrared light at 850 nm wavelength
- Supply voltage: 10 V DC to 30 V DC with ripple < 10%
- Current consumption: ≤ 15 mA
- Switching output: NPN, light switching mode
- Output current max: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Connection: Cable open end, 4-wire, 2 m, plastic PVC
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Dimensions (H x L x W): 35mm x 22mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Hybrid housing design with blue color
- Sensing range from 5 mm to 50 mm
- Infrared light source with PinPoint LED
- Light spot size Ø 8 mm at 100 mm distance
- Supply voltage 10 V DC to 30 V DC
- NPN switching output with light switching mode
- Response time ≤ 1 ms and switching frequency 500 kHz
- Cable open end, 4-wire, 2 m with plastic PVC material
- Protection class III and enclosure rating IP67
- Operating temperature range from -40 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure proper wiring and compliance with electrical safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Robotics and safety systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient infrared LED technology
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZTB18-2GZ1G1D02 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
