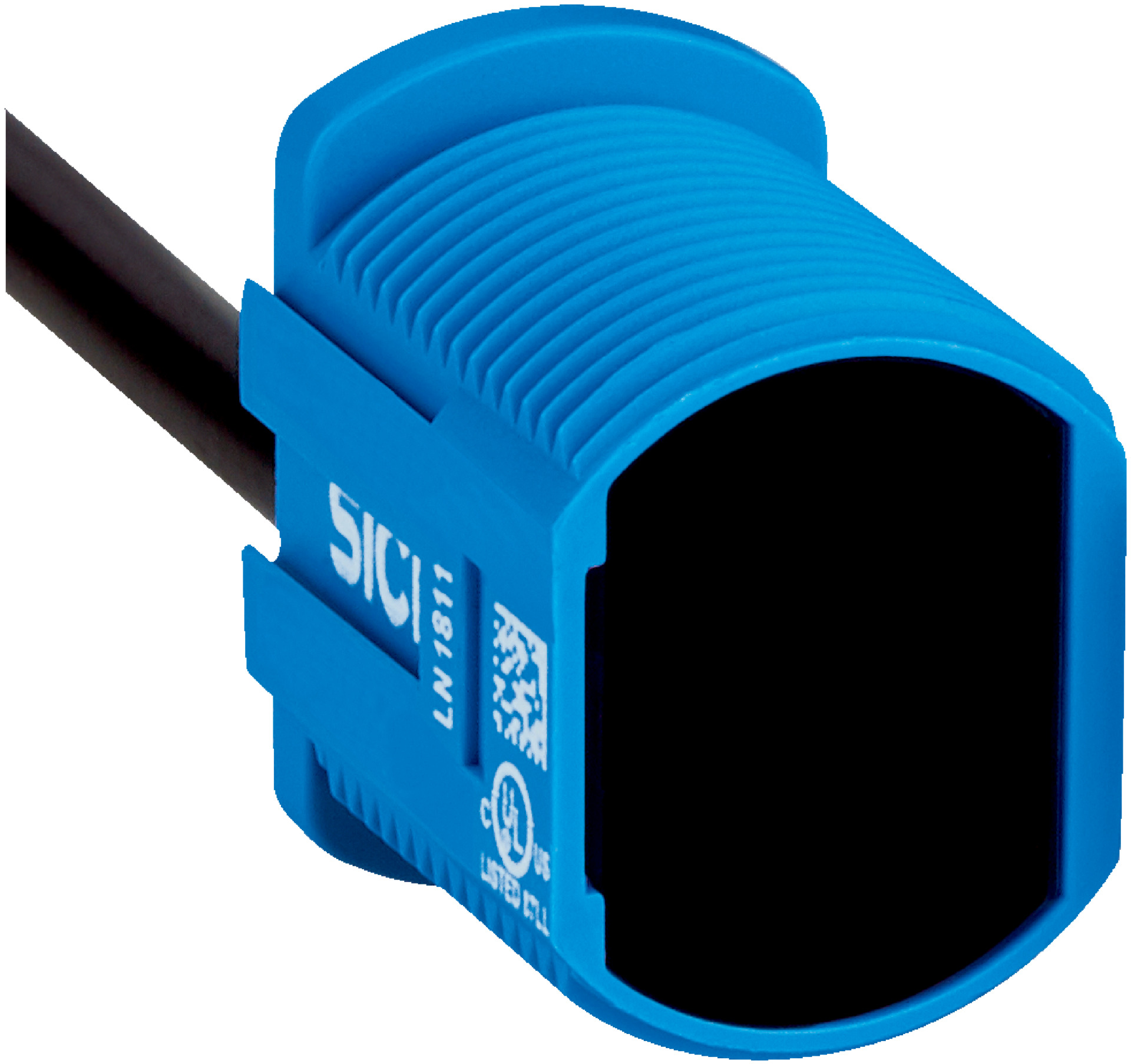

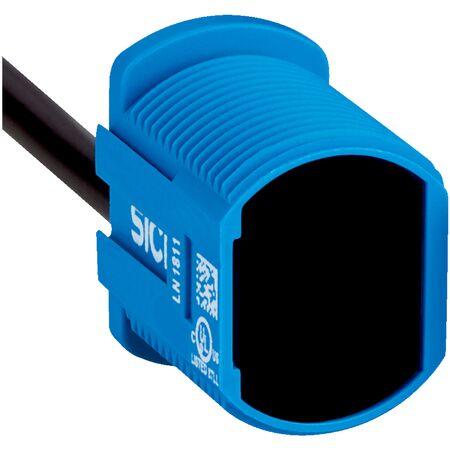

Photoelectric Proximity Sensor | Background Suppression | NPN Output | IP67 Rated | by SICK
The Photoelectric Proximity Sensor ZTB18-9JZ3D1D04 features background suppression technology and a sensing range of 5 mm to 100 mm, making it ideal for industrial automation and manufacturing applications. With a fast response time of ≤ 1 ms and an NPN dark switching output, this sensor ensures reliable object detection in various environments. Its durable IP67 rated housing provides excellent protection against dust and water, ensuring longevity and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 5 mm to 100 mm
- Light source: PinPoint LED, infrared light at 850 nm wavelength
- Supply voltage: 10 V DC to 30 V DC with ripple < 10%
- Current consumption: ≤ 15 mA
- Switching output: NPN, dark switching mode
- Output current max: 100 mA
- Response time: ≤ 1 ms
- Switching frequency: 500 kHz
- Connection: Cable with M8 male connector, 4-pin, 500 mm length
- Housing material: Plastic ABS, optics material: Plastic PMMA
- Protection class: III, Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 21mm x 23mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Hybrid housing design with blue color
- Sensing range from 5 mm to 100 mm
- Infrared light source with PinPoint LED
- Light spot size Ø 8 mm at 100 mm distance
- Supply voltage 10 V DC to 30 V DC
- NPN dark switching output
- Response time ≤ 1 ms and switching frequency 500 kHz
- Cable with M8 male connector, 4-pin, 500 mm
- Enclosure rating IP67 for dust and water protection
- Operating temperature range from -40 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Robotics and material handling
- Safety and presence detection in machinery
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient infrared LED technology
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZTB18-9JZ3D1D04 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
