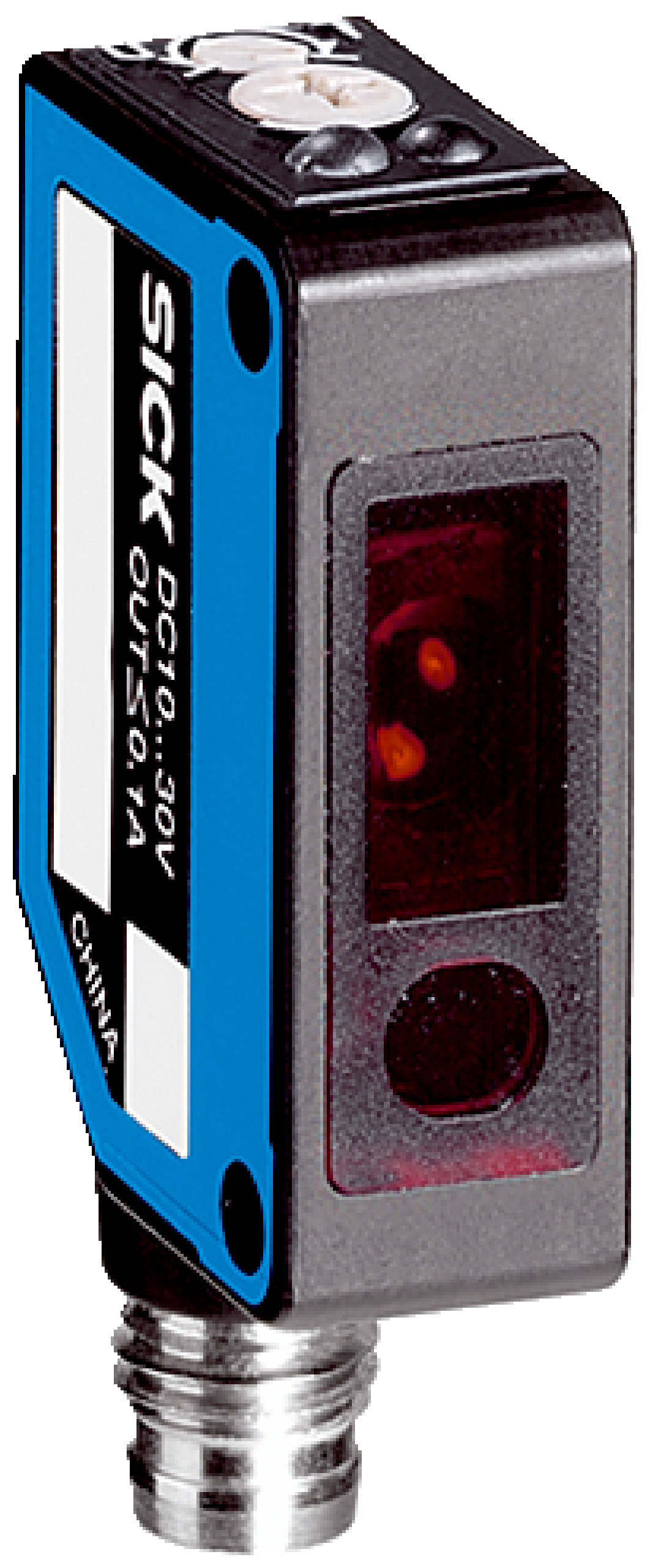

Photoelectric Proximity Sensor WTB8-N2211 | Background Suppression | NPN Output | IP67 Rated | by SICK
The WTB8-N2211 Photoelectric Proximity Sensor is designed for industrial automation, featuring a sensing range of 20 mm to 100 mm and a fast response time of ≤ 0.5 ms. With an IP67 rating for dust and water protection, this sensor is perfect for object detection and safety monitoring in manufacturing and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression
- Sensing range: 20 mm to 100 mm
- Light source: Visible red LED, wavelength 650 nm
- Light spot size: Ø 6 mm at 100 mm distance
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: NPN, max output current ≤ 100 mA
- Switching mode: Light/dark selectable via rotary switch
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Male M8, 4-pin connector
- Housing material: Plastic ABS, optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Includes stainless steel mounting bracket (1.4301/304)
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression
- Rectangular housing design with visible red light LED
- Sensing range from 20 mm to 100 mm
- Adjustable potentiometer with 4 turns
- NPN switching output with selectable light/dark switching mode
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Includes stainless steel mounting bracket
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in machinery
- Robotics and material handling
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable ABS and PMMA plastic housing extends product life reducing waste
- IP67 rating ensures long-term reliability in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WTB8-N2211 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
