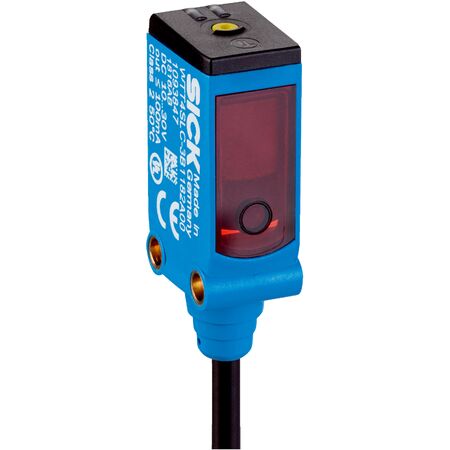

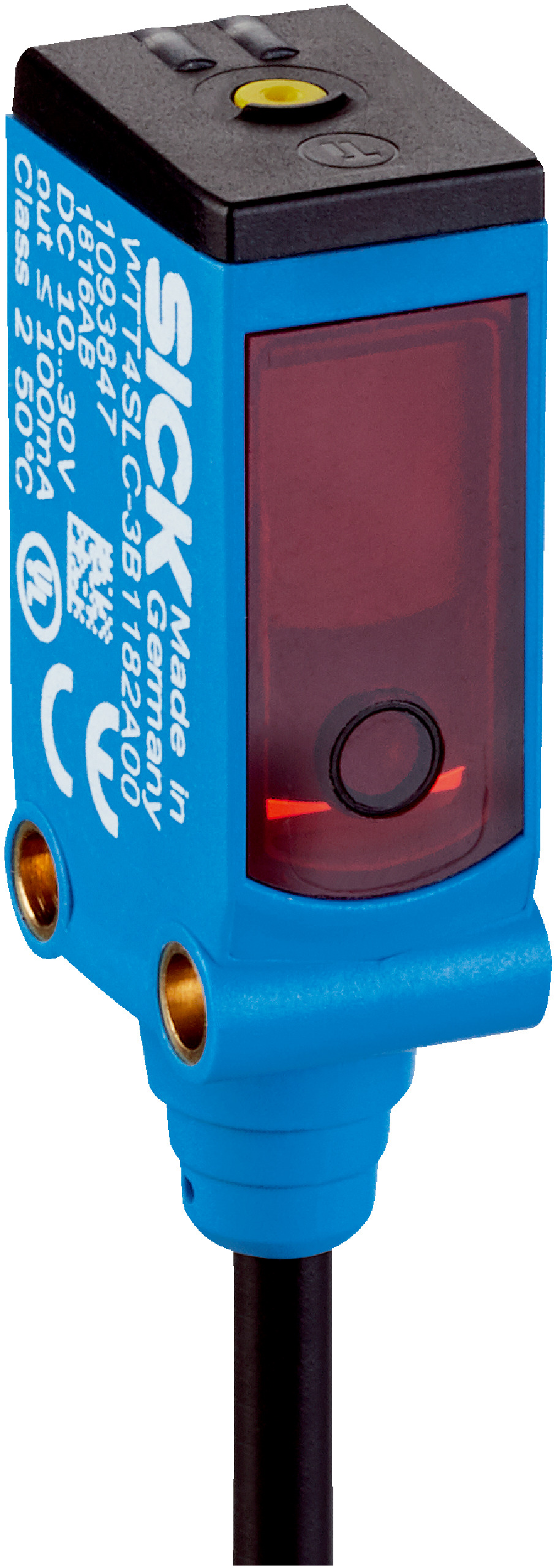

Photoelectric Proximity Sensor | Background Suppression & Optical Time-of-Flight | 50 mm to 1000 mm Range | by SICK
The Photoelectric Proximity Sensor WTT4SLC-3B1132A00 features advanced background suppression and optical time-of-flight technology, making it ideal for industrial automation and precise distance measurement. With a sensing range of 50 mm to 1000 mm and a high resolution of 1 mm, this sensor ensures accurate detection in manufacturing processes, robotics, and quality control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range max: 50 mm to 1000 mm
- Measuring range: 90 mm to 1000 mm
- Resolution: 1 mm
- Repeatability: 7.5 mm to 13 mm
- Accuracy: -10 mm to +80 mm
- Distance value output: Via IO-Link
- Update rate of distance value: 0.8 ms
- Light source: Laser, wavelength 658 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 25 mA
- Switching output: Push-pull PNP/NPN
- Output current max: ≤ 50 mA
- Response time: 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Connection type: 4-wire cable, 2 m length
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Sensing range from 50 mm up to 1000 mm
- Visible red laser light source with 658 nm wavelength
- High resolution of 1 mm and repeatability between 7.5 mm to 13 mm
- Fast update rate of distance value at 0.8 ms
- IO-Link V1.1 communication interface with COM3 (230.4 kBaud)
- Push-pull PNP/NPN switching output with light/dark switching modes
- Robust IP67 rated plastic housing
- Operating temperature range from -40 °C to +50 °C
- Laser class 1 safety compliant
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for object detection and distance measurement
- Manufacturing process control
- Robotics and material handling systems
- Quality control and safety monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 25 mA current draw
- Durable IP67 rated housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT4SLC-3B1132A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise distance sensing applications.
