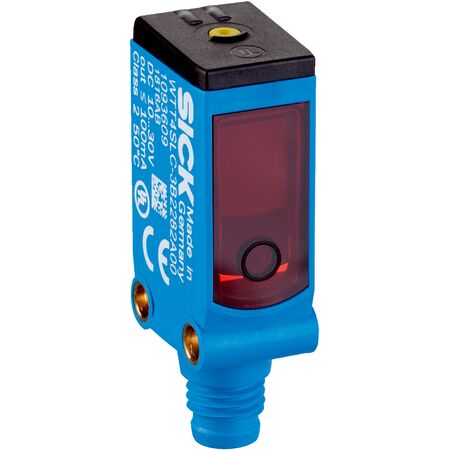

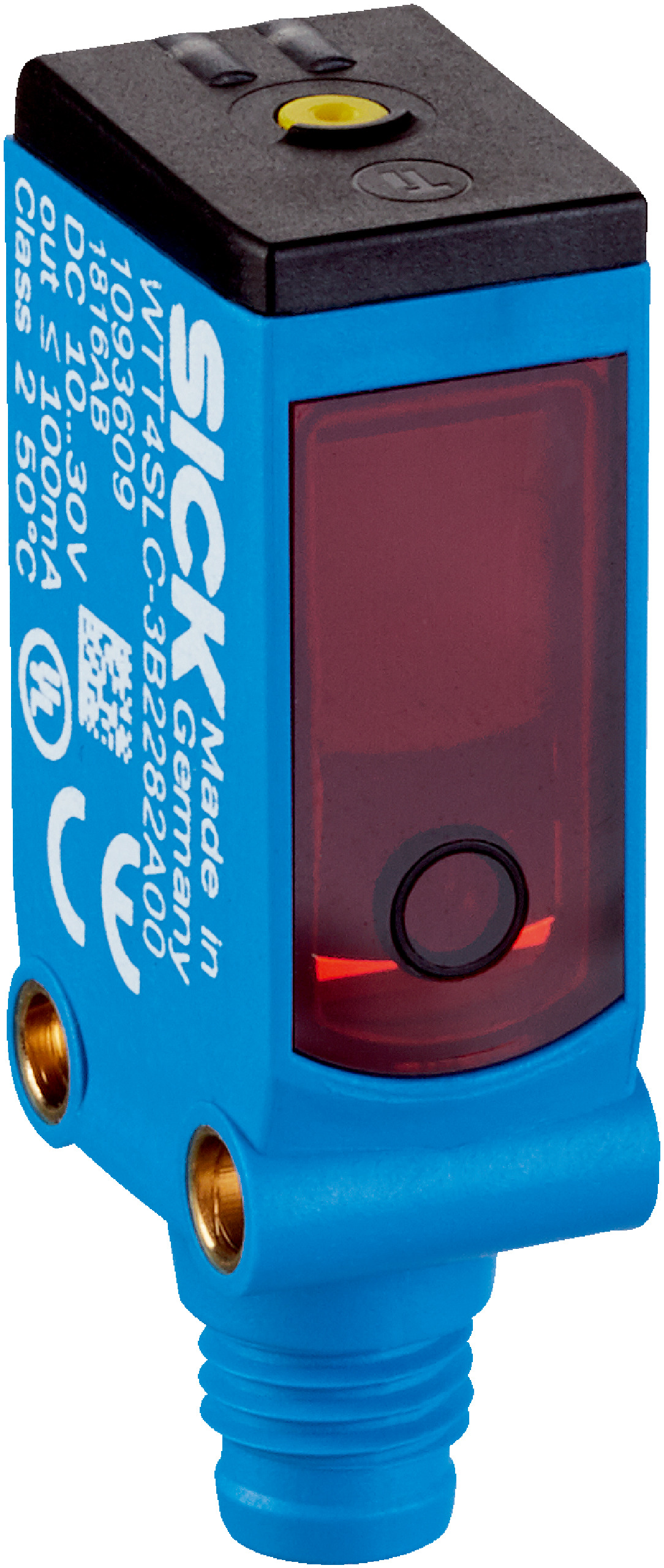

Photoelectric Proximity Sensor | Background Suppression & Optical Time-of-Flight | 50 mm to 1300 mm Sensing Range | IP67 Rated | by SICK
The Photoelectric Proximity Sensor WTT4SLC-3B2262B01 features advanced background suppression and optical time-of-flight technology, making it ideal for industrial automation and precise distance measurement. With a sensing range of 50 mm to 1300 mm and a high resolution of 1 mm, this sensor ensures accurate detection in various applications, including robotics and quality control. Its robust IP67 enclosure guarantees durability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 50 mm to 1300 mm
- Measuring range: 90 mm to 1300 mm
- Resolution: 1 mm
- Repeatability: 4.5 mm to 11 mm
- Accuracy: ±35 mm
- Distance value output: Via IO-Link
- Update rate: 0.8 ms
- Light source: Visible red laser, wavelength 658 nm, laser class 1
- Switching output: Push-pull PNP/NPN, max output current ≤ 50 mA
- Response time: ≤ 5 ms
- Switching frequency: 100 Hz
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 25 mA
- Enclosure rating: IP67
- Operating temperature: -40 °C to +50 °C
- Housing material: Plastic (MABS, ABS)
- Optics material: Plastic (PMMA)
- Connection type: Male M8 connector, 4-pin
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Sensing range from 50 mm up to 1300 mm
- High resolution of 1 mm and repeatability between 4.5 mm to 11 mm
- Distance value output via IO-Link with update rate of 0.8 ms
- Visible red laser light source with wavelength of 658 nm and laser class 1 safety
- Push-pull switching output configurable as PNP or NPN
- IP67 rated enclosure for robust protection against dust and water
- Operating temperature range from -40 °C to +50 °C
- Multiple programmable input and output functions including teach-in button and external input
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection and distance measurement
- Factory automation systems requiring precise background suppression
- Robotics and material handling systems
- Quality control and process monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP67 housing extends product life and reduces waste
- Supports precise detection reducing material waste in automation processes
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT4SLC-3B2262B01 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise distance measurement applications.
