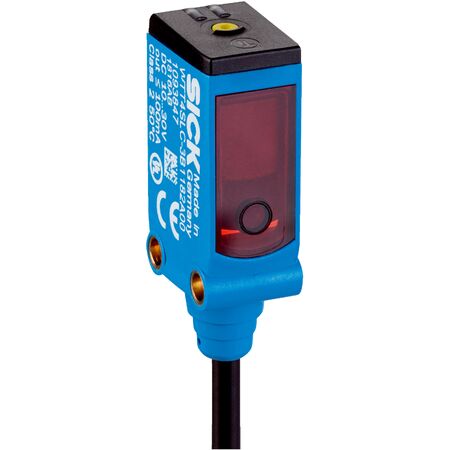

Photoelectric Proximity Sensor | Background Suppression & Optical Time-of-Flight | 50 mm to 1300 mm Sensing Range | by SICK
The Photoelectric Proximity Sensor WTT4SLC-3B3262A00 features advanced background suppression and optical time-of-flight technology, making it ideal for industrial automation and safety applications. With a sensing range of 50 mm to 1300 mm and a resolution of 1 mm, it ensures precise distance measurement. Designed for robust performance, this sensor operates in extreme temperatures from -40 °C to +50 °C and is equipped with an IP67 rated housing for durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 50 mm to 1300 mm
- Measuring range: 90 mm to 1300 mm
- Resolution: 1 mm
- Repeatability: 4.5 mm to 11 mm
- Accuracy: -10 mm to +80 mm
- Distance value output: Via IO-Link
- Update rate: 0.8 ms
- Light source: Visible red laser, 658 nm wavelength, Laser class 1
- Switching output: Push-pull PNP/NPN, light/dark switching
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 25 mA
- Switching frequency: 100 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +50 °C
- Connection: Cable with M8 male connector, 4-pin, 120 mm length
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight principle
- Sensing range from 50 mm up to 1300 mm
- Distance measurement resolution of 1 mm with repeatability between 4.5 mm and 11 mm
- Visible red laser light source with wavelength 658 nm and laser class 1 safety
- Communication via IO-Link V1.1 with 0.8 ms update rate
- Push-pull switching output configurable as PNP/NPN with light/dark switching modes
- Robust IP67 rated plastic housing with M8 4-pin connector
- Wide ambient operating temperature range from -40 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper configuration and safety compliance.
Applications
- Industrial automation for object detection and distance measurement
- Factory automation requiring precise background suppression
- Safety systems with laser class 1 compliance
- Process control with fast response and IO-Link communication
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP67 housing extends product lifespan, reducing waste
- Compliant with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT4SLC-3B3262A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring precise distance measurement.
