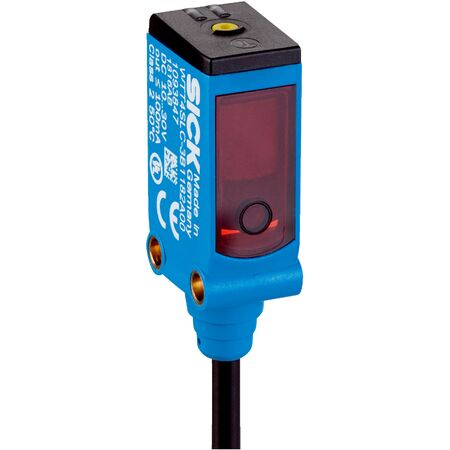

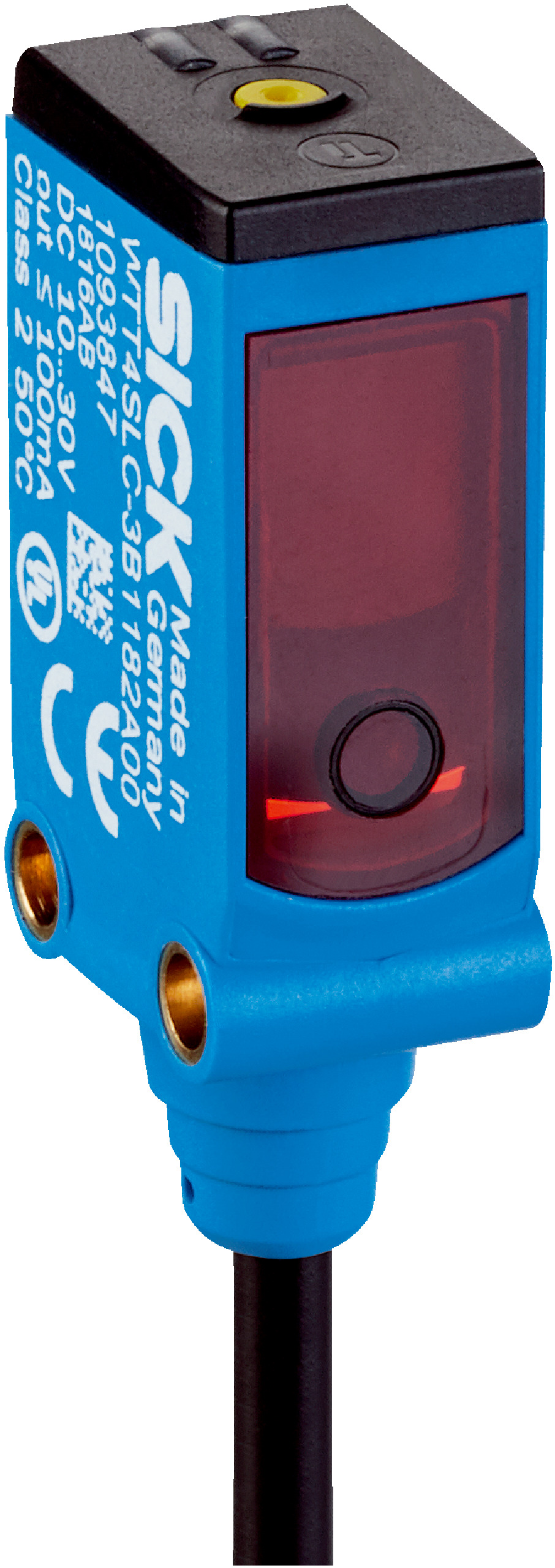

Photoelectric Proximity Sensor | Background Suppression & Optical Time-of-Flight | 50 mm to 1300 mm Sensing Range | by SICK
The Photoelectric Proximity Sensor WTT4SLC-3B3262B08 features advanced background suppression and optical time-of-flight technology, making it ideal for industrial automation and safety applications. With a sensing range of 50 mm to 1300 mm and a high resolution of 1 mm, this sensor ensures precise distance measurement. Its robust IP67 rated housing and wide operating temperature range from -40 °C to +50 °C make it suitable for various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 50 mm to 1300 mm
- Resolution: 1 mm
- Repeatability: 4.5 mm to 11 mm
- Accuracy: -10 mm to +80 mm
- Light source: Visible red laser, 658 nm wavelength, Laser class 1
- Output: Push-pull PNP/NPN with light/dark switching
- Communication interface: IO-Link V1.1, COM3 (230.4 kBaud)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 25 mA
- Switching frequency: 100 Hz
- Response time: ≤ 5 ms
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +50 °C
- Connection: Cable with M8 male connector, 4-pin, 120 mm length
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight principle
- Sensing range from 50 mm up to 1300 mm
- High resolution of 1 mm and repeatability between 4.5 mm to 11 mm
- Visible red laser light source with wavelength of 658 nm and laser class 1 safety
- Fast update rate of distance value at 0.8 ms via IO-Link communication
- Push-pull switching output with PNP/NPN and light/dark switching modes
- Robust IP67 rated plastic housing with M8 4-pin connector
- Wide ambient operating temperature range from -40 °C to +50 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection and distance measurement
- Safety and monitoring systems requiring precise background suppression
- Machine vision and robotics requiring optical time-of-flight sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable IP67 rated housing reduces need for frequent replacements
- Compliant with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT4SLC-3B3262B08 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring precise distance measurement.
