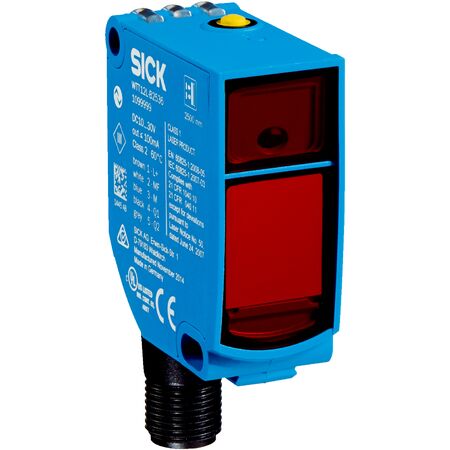

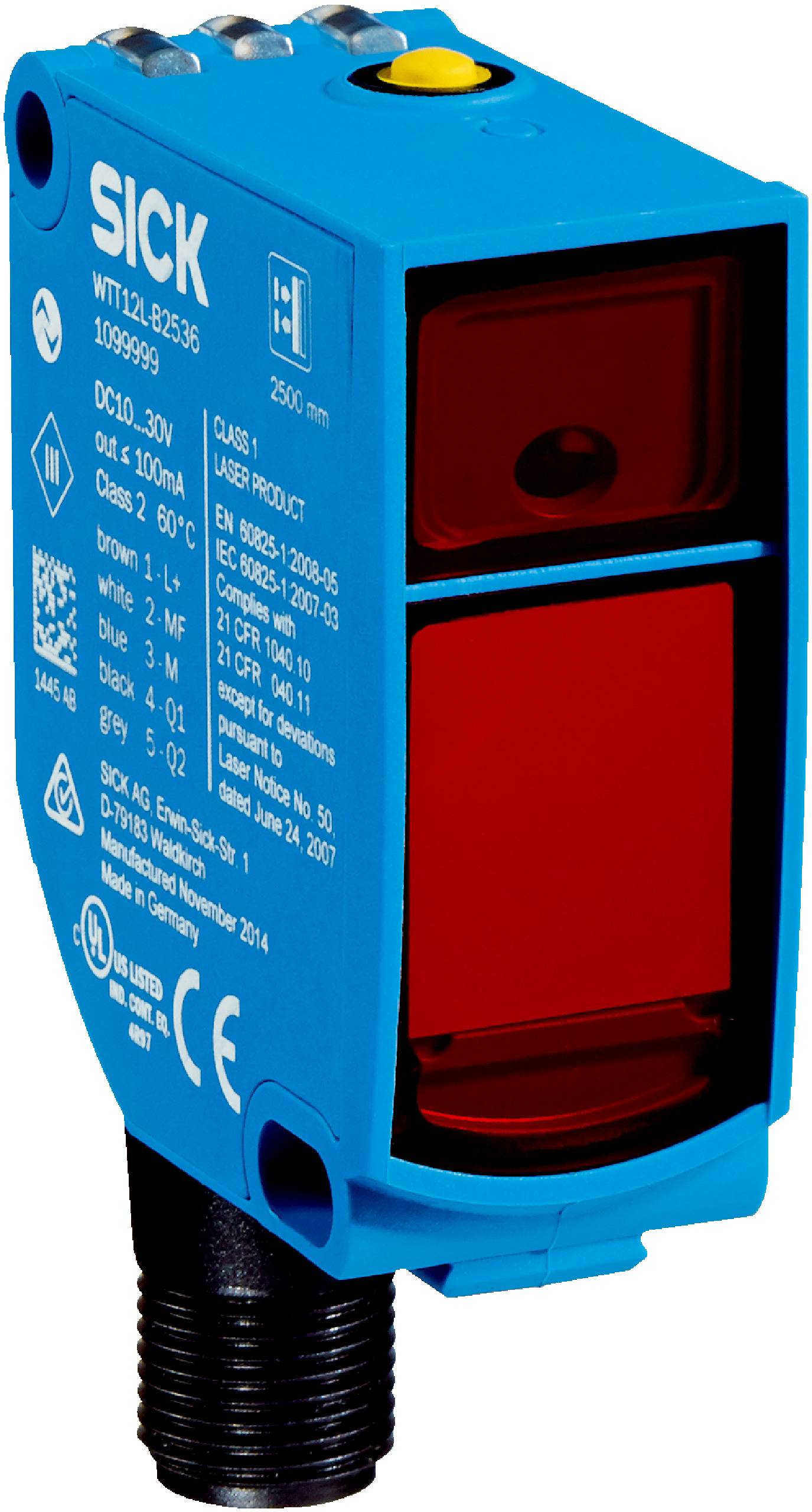

Photoelectric Proximity Sensor WTT12L-B2562 | Background Suppression | Optical Time-of-Flight | IP67 Rated | by SICK
The WTT12L-B2562 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and optical time-of-flight technology. With a sensing range of 50 mm to 3,800 mm and a high switching frequency of 100 Hz, it ensures precise object detection in various applications, including material handling and safety systems. Its durable IP67 rated enclosure provides protection against dust and water, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 50 mm to 3,800 mm
- Light source: Visible red laser, wavelength 658 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching output: Push-pull PNP/NPN, 2 outputs (Q, /Q)
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 5 ms
- Switching frequency: 100 Hz
- Protection class: III
- Enclosure rating: IP67
- Warm-up time: < 15 minutes
- Initialization time: < 300 ms
- Connection type: Plug, M12, 5-pin
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Operating temperature: -35 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 49.6mm x 44.2mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 50 mm up to 3,800 mm
- Laser class 1 compliant with IEC 60825-1 standards
- Single teach-in button for easy adjustment
- Push-pull PNP/NPN switching output with light/dark switching mode
- High switching frequency of 100 Hz and response time ≤ 5 ms
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -35 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical connections to ensure compliance with safety standards.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and presence detection in manufacturing
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP67 housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT12L-B2562 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
