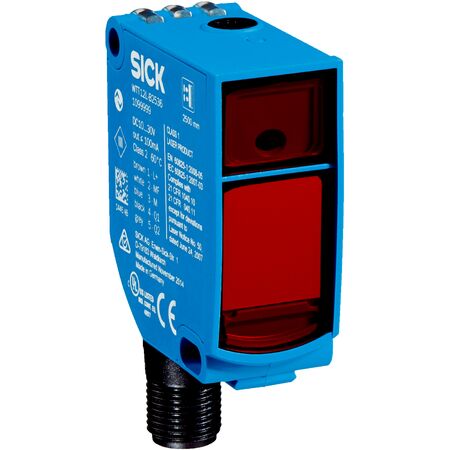

Photoelectric Proximity Sensor WTT12L-B2531 | Background Suppression | Optical Time-of-Flight | IP67 Rated | by SICK
The WTT12L-B2531 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation. Featuring background suppression and optical time-of-flight technology, it offers a sensing range from 50 mm to 2,500 mm. With a robust IP67 enclosure, this sensor is perfect for harsh environments, ensuring reliable performance in material handling, packaging systems, and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 50 mm to 2,500 mm
- Light source: Visible red laser, wavelength 658 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching output: Push-pull PNP/NPN, 2 outputs (Q, /Q)
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP67
- Warm-up time: < 15 minutes
- Initialization time: < 300 ms
- Connection type: M12, 5-pin plug
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Operating temperature: -35 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 49.6mm x 44.2mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 50 mm up to 2,500 mm
- Laser class 1 compliant with IEC 60825-1 standards
- Dual switching outputs (PNP/NPN) with light/dark switching mode
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- Robust IP67 rated enclosure for harsh environments
- Wide operating temperature range from -35 °C to +50 °C
- Adjustable sensitivity via 4-turn potentiometer
- Connection via M12 5-pin plug
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with laser safety and electrical sensor integration to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and presence detection in manufacturing
- Robotics and conveyor systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP67 housing extends product life and reduces waste
- Complies with China-RoHS environmental standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT12L-B2531 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications requiring precise object detection.
