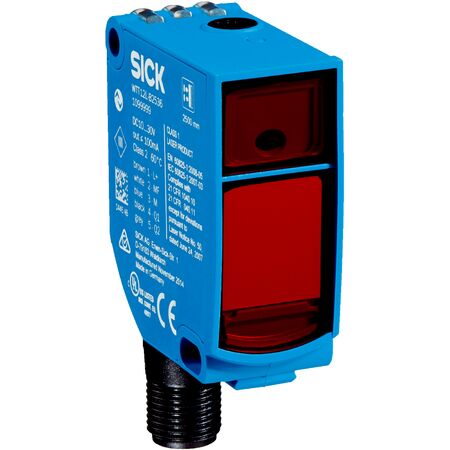

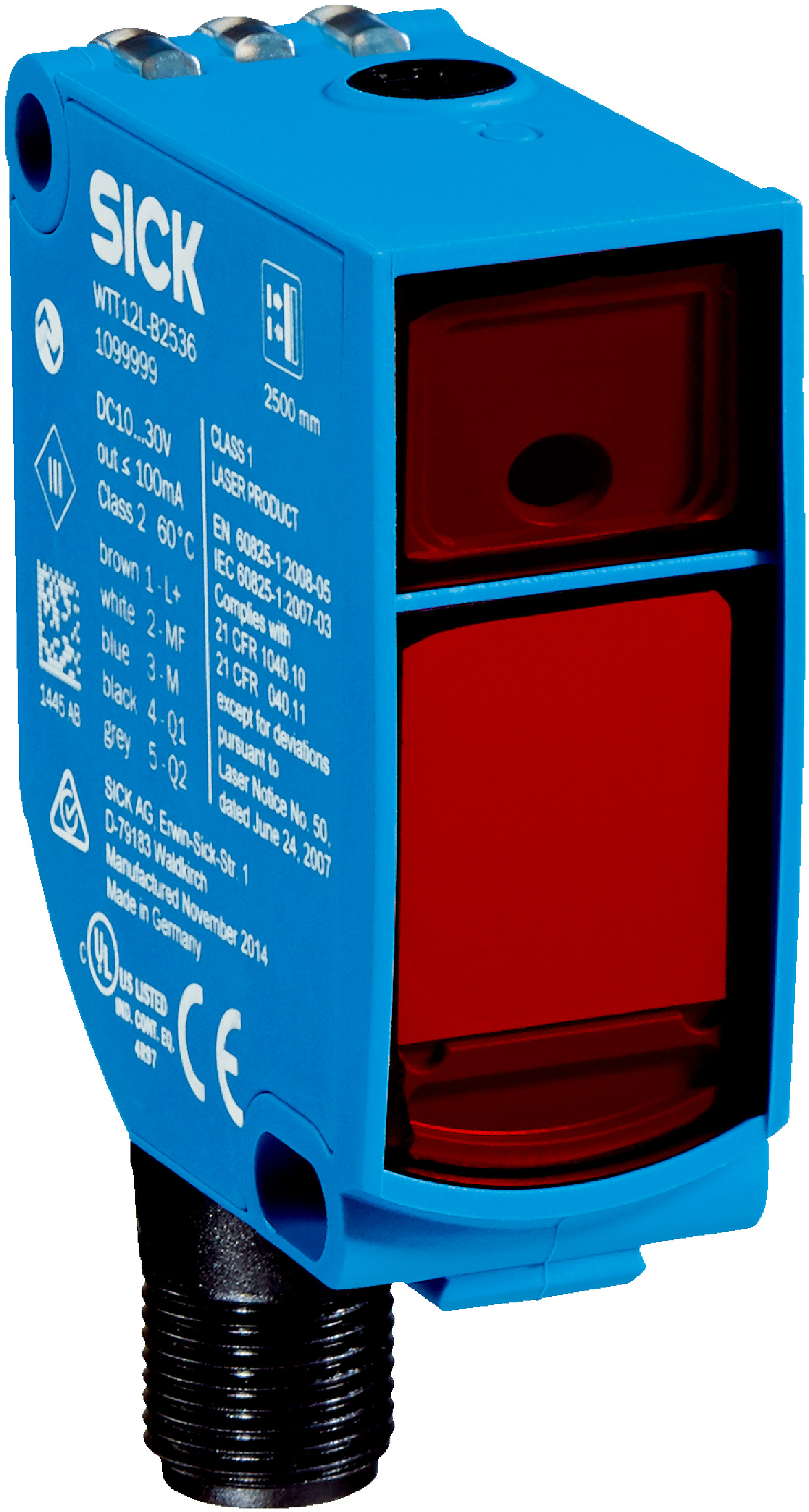

Photoelectric Proximity Sensor | Background Suppression & Optical Time-of-Flight | IP67 Rated | by SICK
The WTT12L-B2541 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and optical time-of-flight technology. With a sensing range of 50 mm to 1800 mm and a durable IP67 rating, it ensures reliable object detection in harsh environments. Ideal for material handling and safety monitoring, this sensor operates efficiently with low current consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 50 mm to 1800 mm
- Light source: Visible red laser, wavelength 658 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Adjustment: Potentiometer, 4 turns
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching output: Push-pull PNP/NPN, 2 outputs (Q, /Q)
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 16.7 ms
- Switching frequency: 30 Hz
- Protection class: III
- Enclosure rating: IP67
- Warm-up time: < 15 min
- Initialization time: < 300 ms
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Connection type: Plug, M12, 5-pin
- Operating temperature: -35 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 49.6mm x 44.2mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 50 mm up to 1800 mm
- Laser class 1 compliant with IEC 60825-1 standards
- Dual switching outputs (Push-pull: PNP/NPN) with light/dark switching mode
- High protection rating of IP67 for harsh environments
- Compact dimensions with plastic VISTAL® housing and PMMA optics
- Low current consumption of 70 mA and supply voltage range 10 V DC to 30 V DC
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and monitoring in manufacturing processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low current consumption reduces power usage
- Durable IP67 rated housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT12L-B2541 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
