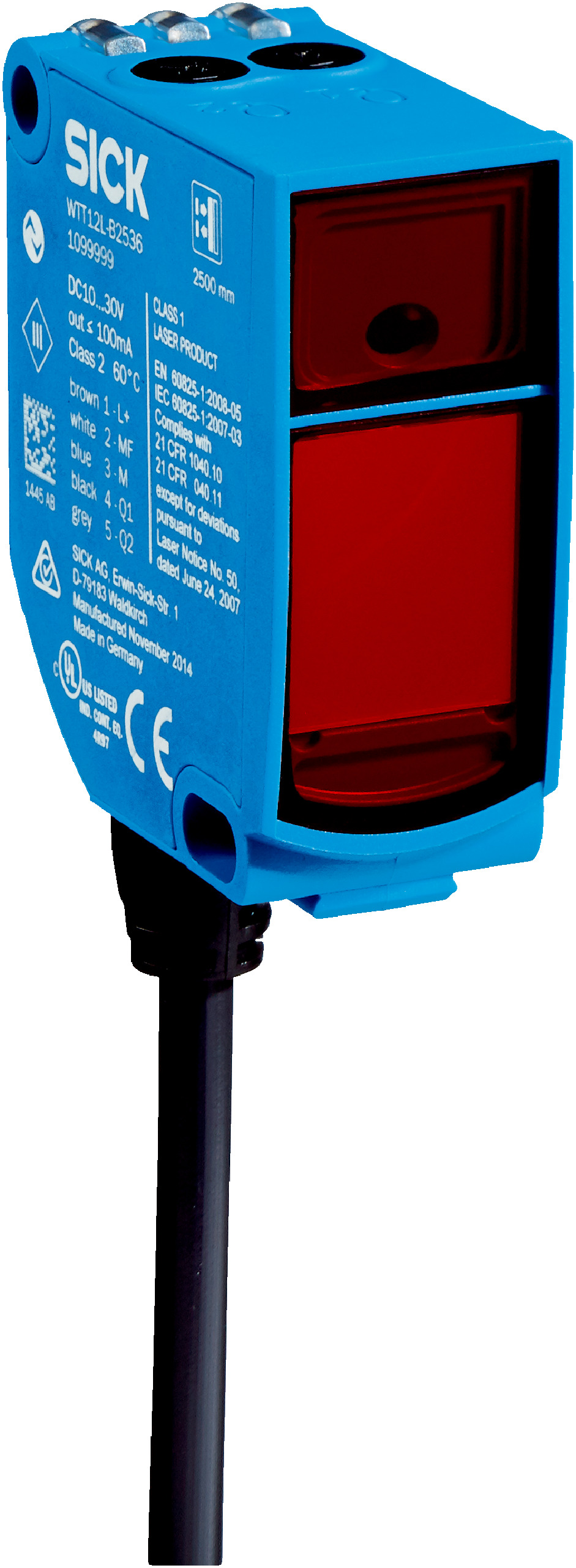

Photoelectric Proximity Sensor WTT12L-B1546 | Background Suppression | Optical Time-of-Flight | IP67 Rated | by SICK
The WTT12L-B1546 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and optical time-of-flight technology. With a sensing range of 50 mm to 1800 mm and a durable IP67 rating, it’s perfect for object detection in harsh environments, ensuring reliable performance in material handling, safety, and quality control applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 50 mm to 1800 mm
- Light source: Visible red laser, wavelength 658 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching output: Push-pull PNP/NPN, 2 outputs
- Output current max: ≤ 100 mA
- Response time: ≤ 16.7 ms
- Switching frequency: 30 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -35°C to +50°C
- Housing material: Plastic VISTAL®, Optics material: Plastic PMMA
- Connection: 5-wire cable, 2 m length, PVC insulation
- Dimensions (H x L x W): 49.6mm x 44.2mm x 20mm
- Weight: 0.111 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 50 mm up to 1800 mm
- Laser class 1 compliant with IEC 60825-1 standards
- Dual switching outputs (PNP/NPN) with push-pull switching mode
- High protection rating of IP67 for harsh environments
- Wide operating temperature range from -35°C to +50°C
- Potentiometer adjustment with 4 turns for precise tuning
- Low current consumption of 70 mA and response time ≤ 16.7 ms
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor setup and electrical safety standards.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and quality control in manufacturing
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation reduces power consumption in industrial applications
- Durable IP67 rated housing minimizes waste by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT12L-B1546 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
