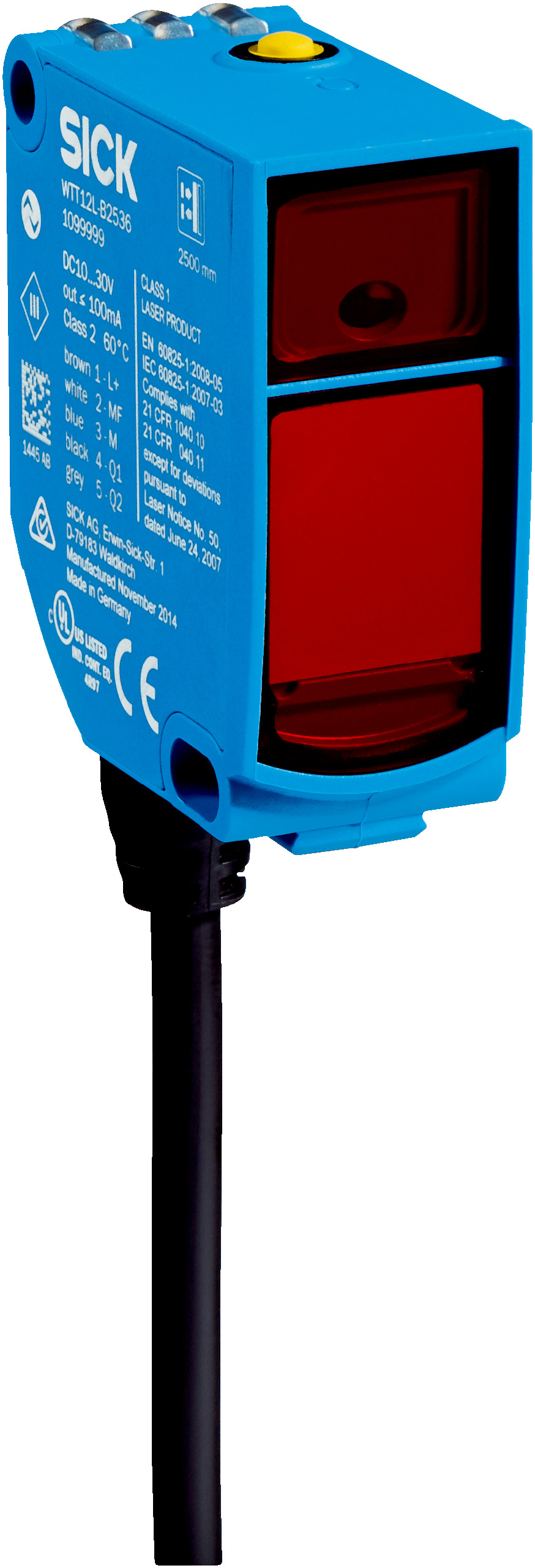

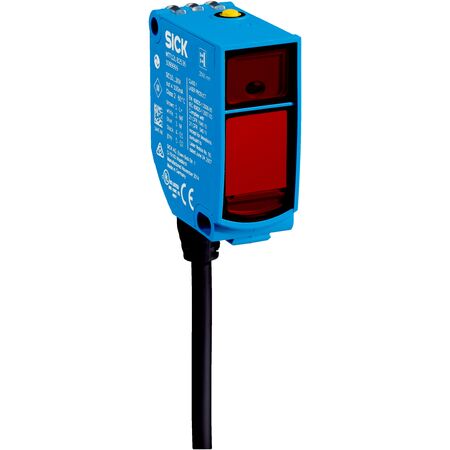

Photoelectric Proximity Sensor WTT12L-B1542 | Background Suppression | Optical Time-of-Flight | IP67 Rated | by SICK
The WTT12L-B1542 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and optical time-of-flight technology. With a sensing range of 50 mm to 1800 mm and a durable IP67 rating, it’s perfect for object detection in harsh environments. Ideal for material handling, safety detection, and robotics applications, this sensor ensures reliable performance in various conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 50 mm to 1800 mm
- Light source: Visible red laser, wavelength 658 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching output: Push-pull PNP/NPN, 2 outputs (Q, /Q)
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 16.7 ms
- Switching frequency: 30 Hz
- Protection class: III
- Enclosure rating: IP67
- Warm-up time: < 15 minutes
- Initialization time: < 300 ms
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Connection type: Cable, 5-wire, 2 m, PVC insulation
- Operating temperature: -35°C to +50°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 49.6mm x 44.2mm x 20mm
- Weight: 0.111 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 50 mm up to 1800 mm
- Laser class 1 compliant with IEC 60825-1 standards
- Single teach-in button for easy adjustment
- Dual switching outputs (PNP/NPN) with light/dark switching mode
- High protection rating IP67 for harsh environments
- Wide operating temperature range from -35°C to +50°C
- Cable connection with 5-wire, 2 m length
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct sensor alignment, electrical connection, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and presence detection in manufacturing
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Low power consumption with supply voltage from 10 V DC to 30 V DC
- Durable IP67 rated housing reduces waste by extending product life
- Non-toxic materials compliant with China-RoHS standards
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT12L-B1542 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
