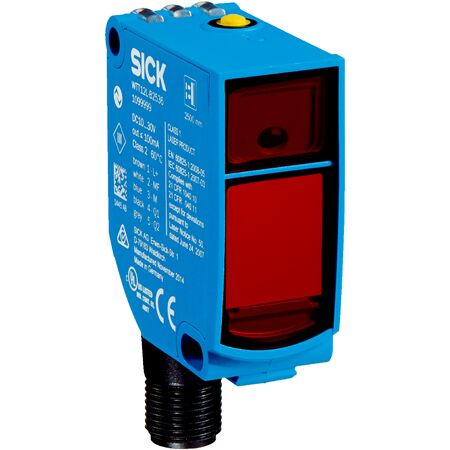

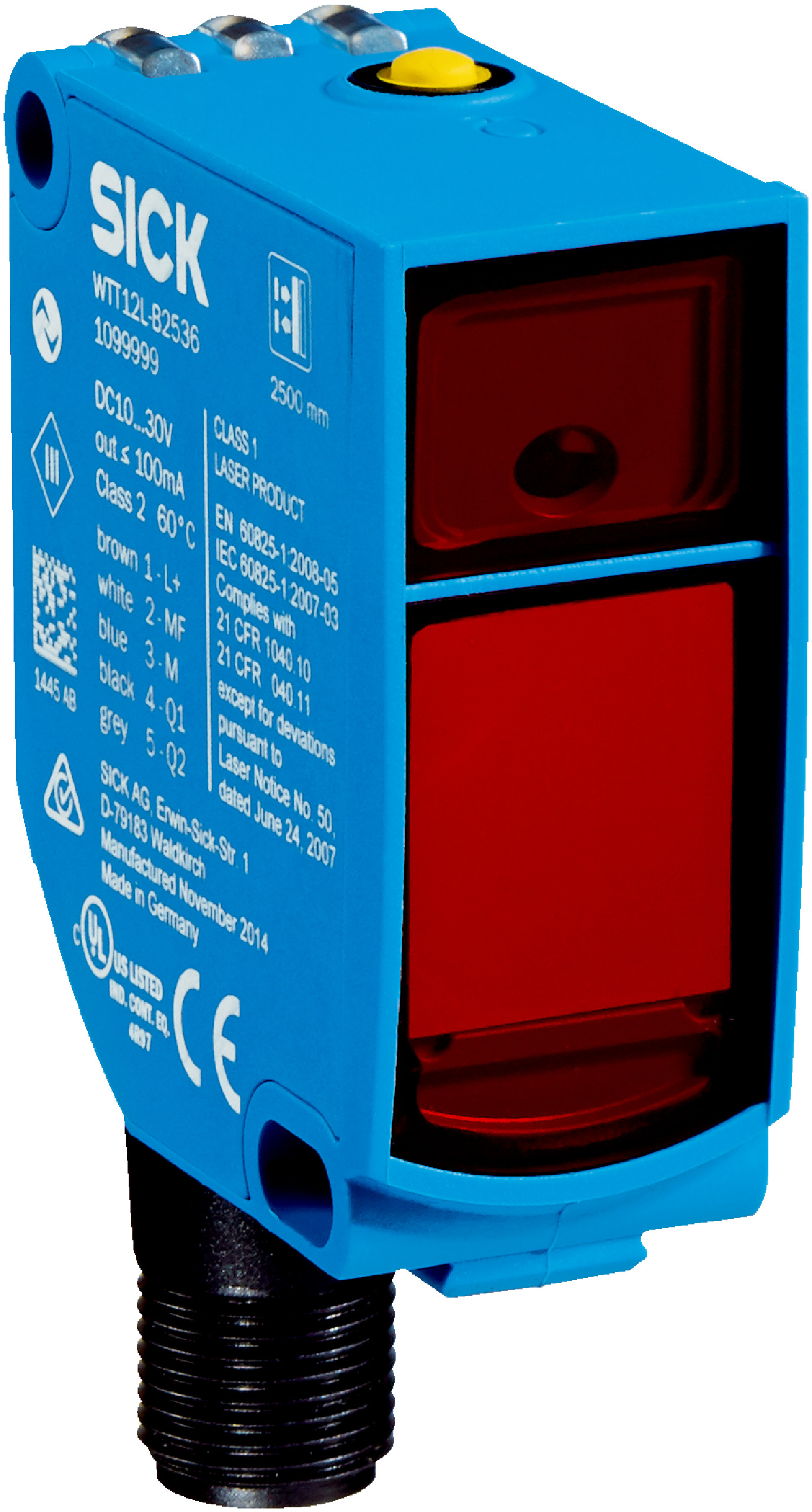

Photoelectric Proximity Sensor WTT12L-B2532 | Background Suppression | Optical Time-of-Flight | IP67 Rated | by SICK
The WTT12L-B2532 Photoelectric Proximity Sensor is designed for industrial automation, featuring background suppression and optical time-of-flight technology. With a sensing range of 50 mm to 2,500 mm and a fast response time of ≤ 0.5 ms, it ensures reliable object detection in various applications. Its IP67 rated enclosure provides excellent protection against dust and water, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range max: 50 mm to 2,500 mm
- Type of light: Visible red light, wavelength 658 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching output: Push-pull PNP/NPN, 2 outputs (Q, /Q)
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP67
- Warm-up time: < 15 minutes
- Initialization time: < 300 ms
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Connection type: Plug, M12, 5-pin
- Ambient operating temperature: -35 °C to +50 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 49.6mm x 44.2mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with visible red laser light source
- Sensing range from 50 mm up to 2,500 mm
- Laser class 1 compliant with IEC 60825-1 standards
- Single teach-in button for easy adjustment
- Dual switching outputs (PNP/NPN) with light/dark switching mode
- High switching frequency of 1,000 Hz and fast response time ≤ 0.5 ms
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -35 °C to +50 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor setup and electrical safety standards.
Applications
- Industrial automation for object detection
- Material handling and packaging systems
- Safety and monitoring in manufacturing processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 45001 – Occupational Health & Safety (aligned with ISO 45001)
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable IP67 rated housing reduces need for frequent replacements
- Long mission time of 20 years reduces electronic waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT12L-B2532 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
