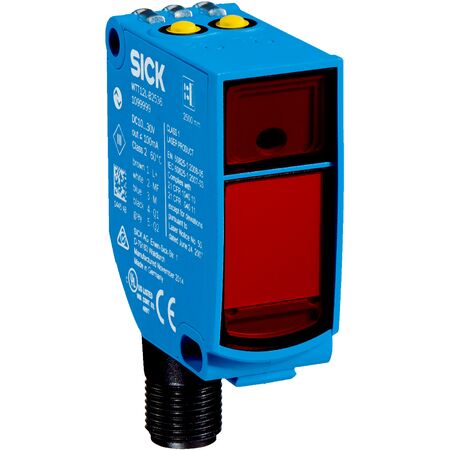

Photoelectric Proximity Sensor WTT12L-B2593 | Background Suppression | Optical Time-of-Flight | IP67 Rated | by SICK
The WTT12L-B2593 Photoelectric Proximity Sensor is designed for precise object detection in industrial automation, featuring background suppression and optical time-of-flight technology. With a sensing range of 50 mm to 3,800 mm and an IP67 rated enclosure, it ensures reliable performance in challenging environments. Ideal for safety systems and measurement tasks, this sensor is built for durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 50 mm to 3,800 mm
- Light source: Infrared laser, wavelength 827 nm
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 70 mA
- Switching output: Push-pull PNP/NPN, 2 outputs
- Output current max: ≤ 100 mA
- Response time: ≤ 5 ms
- Switching frequency: 100 Hz
- Protection class: III
- Enclosure rating: IP67
- Warm-up time: < 15 minutes
- Initialization time: < 300 ms
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Connection type: Plug, M12, 5-pin
- Dimensions (H x L x W): 49.6mm x 44.2mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with infrared laser light source
- Sensing range from 50 mm up to 3,800 mm
- Laser class 1 compliant with IEC 60825-1 standards
- Single teach-in button for easy adjustment
- Dual push-pull switching outputs (PNP/NPN)
- High switching frequency of 100 Hz and fast response time ≤ 5 ms
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -25 °C to +50 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety systems requiring background suppression
- Measurement and positioning tasks in manufacturing
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 10 V DC to 30 V DC supply voltage
- Durable plastic housing reduces material waste and extends product life
- Long mission time of 20 years reduces replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WTT12L-B2593 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
