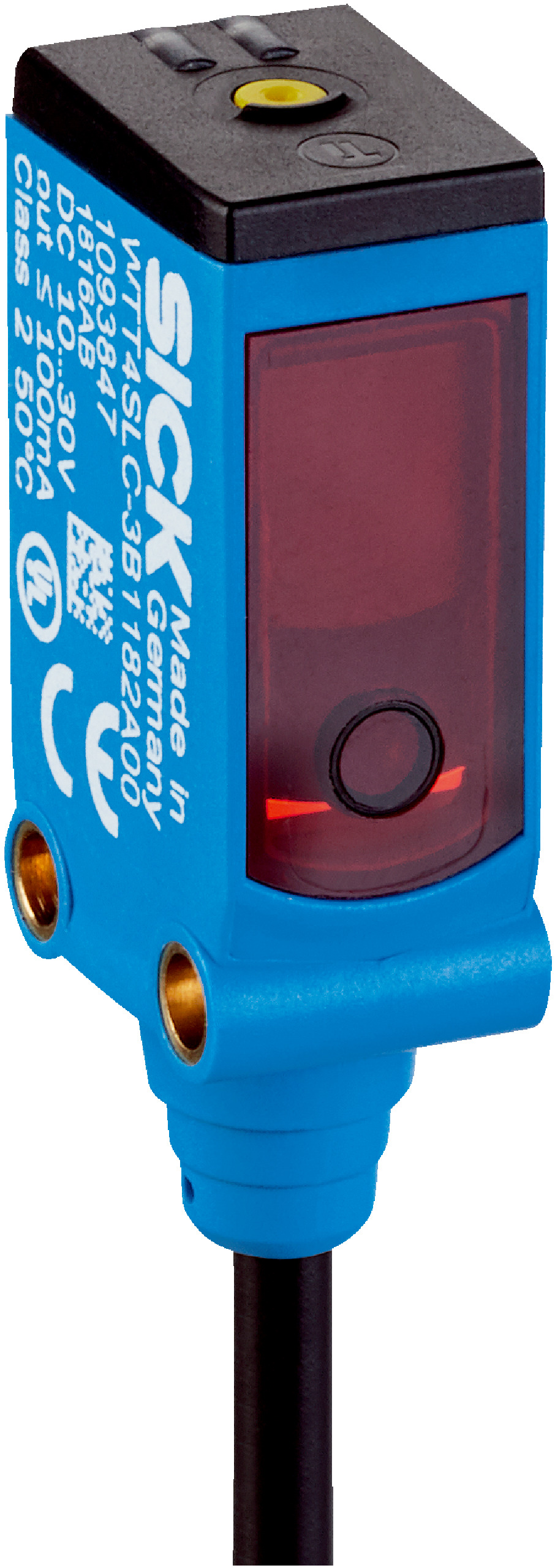

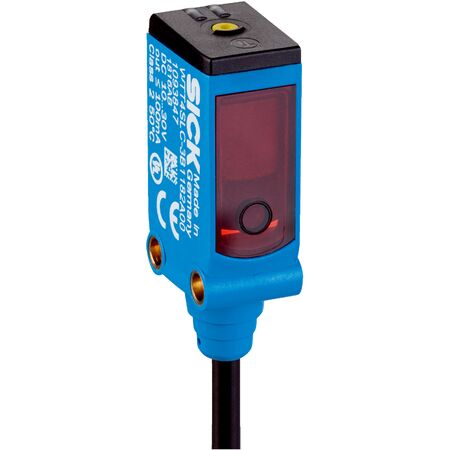

Photoelectric Proximity Sensor | Background Suppression & Optical Time-of-Flight | IP67 Rated | by SICK
The Photoelectric Proximity Sensor WTT4SLC-3B3232A00 features advanced background suppression and optical time-of-flight technology, making it ideal for industrial automation and precise object detection. With a sensing range of 50 mm to 1000 mm and a high resolution of 1 mm, this sensor ensures accurate measurements in various applications. Its robust IP67 rated enclosure guarantees durability in challenging environments, while the visible red laser light source enhances detection capabilities.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 50 mm to 1000 mm
- Measuring range: 90 mm to 1000 mm
- Resolution: 1 mm
- Repeatability: 7.5 mm to 13 mm
- Accuracy: -10 mm to +80 mm
- Distance value output: Via IO-Link
- Update rate: 0.8 ms
- Light source: Visible red laser, 658 nm wavelength
- Laser class: 1 (IEC 60825-1)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 25 mA
- Switching output: Push-pull PNP/NPN
- Output current max: ≤ 50 mA
- Response time: 0.5 ms
- Switching frequency: 1000 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Connection: Cable with M8 male connector, 4-pin, 120 mm
- Dimensions (H x L x W): 41.8mm x 17.3mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight principle
- Sensing range from 50 mm up to 1000 mm
- Visible red laser light source with 658 nm wavelength
- High resolution of 1 mm and repeatability between 7.5 mm to 13 mm
- Fast update rate of distance value at 0.8 ms
- IP67 rated enclosure for robust protection
- Push-pull PNP/NPN switching output with light/dark switching modes
- Single teach-in button and IO-Link for easy adjustment
- Laser class 1 safety compliant
- Operating temperature range from -40 °C to +50 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper connection and configuration via IO-Link.
Applications
- Industrial automation for object detection and distance measurement
- Factory automation systems requiring precise background suppression
- Robotics and material handling with optical time-of-flight sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 25 mA current draw
- Durable IP67 housing reduces waste by extending product life
- Compliant with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT4SLC-3B3232A00 Photoelectric Proximity Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
