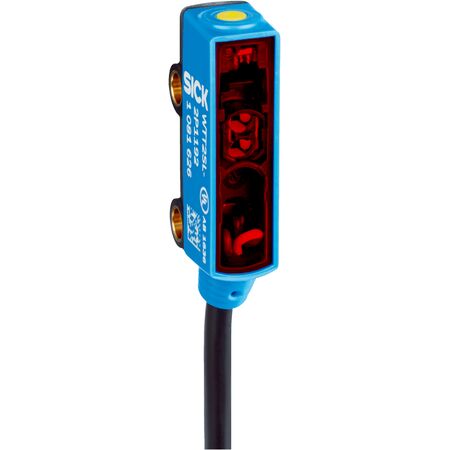

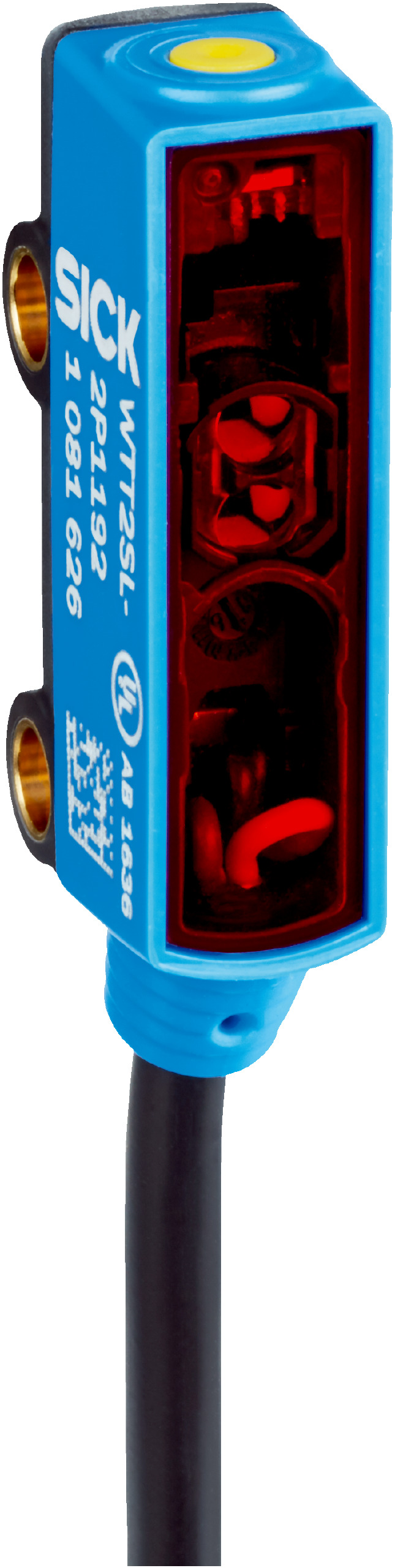

Photoelectric Proximity Sensor | Background Suppression | Optical Time-of-Flight | IP67 Rated | by SICK
The WTT2SLC-2P3292B02 photoelectric proximity sensor is designed for precision in industrial automation, featuring background suppression and optical time-of-flight technology. With a sensing range of 50 mm to 800 mm and an infrared laser light source, it ensures accurate detection of small objects. Ideal for manufacturing process control and material handling, this sensor is built to withstand harsh environments with its IP67 rated enclosure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric proximity sensor with background suppression and optical time-of-flight
- Sensing range: 50 mm to 800 mm
- Repeatability: 2 mm to 5 mm
- Accuracy: ±20 mm
- Light source: Infrared laser, wavelength 940 nm, laser class 1
- Adjustment: Single teach-in button, IO-Link V1.1 communication interface
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, light/dark switching mode
- Output current max: ≤ 50 mA
- Response time: Typical 95 ms
- Switching frequency: 5 Hz
- Protection class: III
- Enclosure rating: IP67
- Housing material: Plastic (MABS ABS), Optics material: Plastic (PMMA)
- Connection: Cable with M8 male connector, 4-pin, 90 mm length
- Dimensions (H x L x W): 27.5mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric proximity sensor with background suppression and optical time-of-flight technology
- Rectangular housing design with sensing range from 50 mm to 800 mm
- Infrared laser light source with wavelength 940 nm and laser class 1
- Single teach-in button and IO-Link communication interface
- IP67 rated enclosure for robust protection
- Light/dark switching mode with PNP output
- Multifunctional input programmable
- Response time approximately 95 ms and switching frequency 5 Hz
- Cable with M8 male connector, 4-pin, 90 mm length
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper sensor setup and compliance with electrical standards.
Applications
- Industrial automation for detecting small objects
- Manufacturing process control
- Material handling and packaging systems
- Robotics and safety monitoring
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low current consumption of 20 mA
- Durable IP67 rated housing reduces waste by extending product life
- Compliant with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WTT2SLC-2P3292B02 photoelectric proximity sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
